MQ6038 Series
Manufacturer: Mechatronics Fan Group
Beta
⌘K
FAN AXIAL 60X38MM 12VDC WIRE
| Part | Material - Blade | Current Rating (Amps) | Termination | Fan Type | Approval Agency | Size / Dimension [z] | Size / Dimension [x] | Noise | Air Flow | Air Flow | RPM | Bearing Type | Width [y] | Static Pressure | Static Pressure | Weight | Weight | Voltage - Rated | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mechatronics Fan Group | Polybutylene Terephthalate (PBT) | 1.6 A | 2 Wire Leads | Tubeaxial | CE cUL TUV UL | 60 mm | 60 mm | 64 dB(A) | 69.2 CFM | 1.94 mł/min | 11000 RPM | Ball | 38 mm | 525.8 Pa | 2.111 in H2O | 0.234 lb | 106.14 g | 12 VDC | |

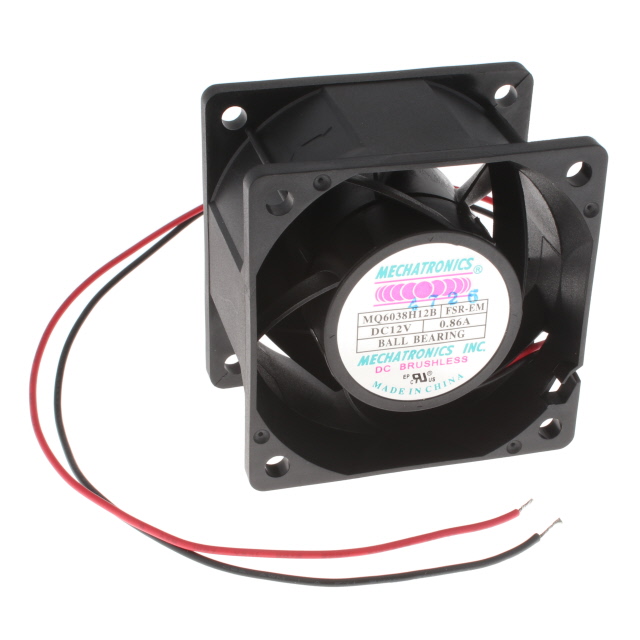

 Mechatronics Fan Group | Polybutylene Terephthalate (PBT) | 0.86 A | 2 Wire Leads | Tubeaxial | CE cUL TUV UL | 60 mm | 60 mm | 65 dB | 57 CFM | 1.6 mł/min | 10000 RPM | Ball | 38 mm | 356.2 Pa | 1.43 in H2O | 0.234 lb | 106.14 g | 12 VDC | IP57 - Dust Protected Waterproof |

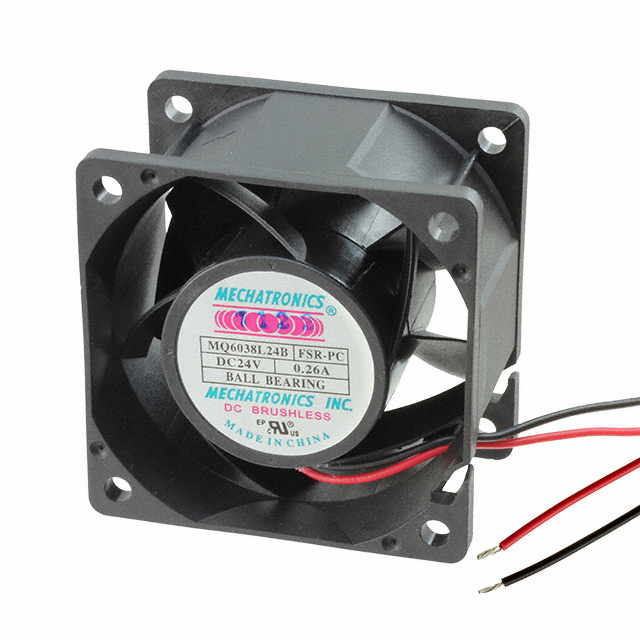

 Mechatronics Fan Group | Polybutylene Terephthalate (PBT) | 0.26 A | 2 Wire Leads | Tubeaxial | CE cUL TUV UL | 60 mm | 60 mm | 53 dB | 44.5 CFM | 1.25 mł/min | 8000 RPM | Ball | 38 mm | 226.7 Pa | 0.91 in H2O | 0.234 lb | 106.14 g | 24 VDC |
