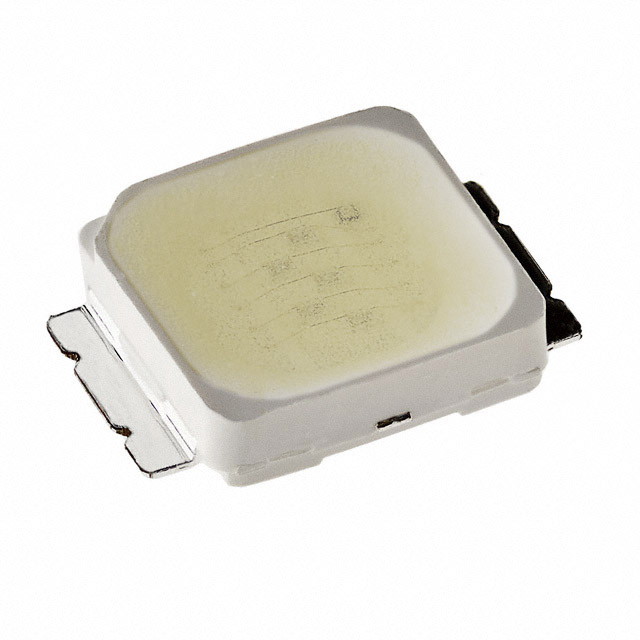

MX6SWT Series

Manufacturer: Cree LED

Catalog

Catalog

LED XLAMP WHITE SMD

...

Part	Package / Case	Supplier Device Package	Current - Test	Flux @ 25°C, Current - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current - Max [Max]	Mounting Type	Viewing Angle	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	Color	CRI (Color Rendering Index)	CCT (K)	Flux @ 25°C, Current - Test [Min]	Flux @ 25°C, Current - Test [Max]
Cree LED MX6SWT-H1-0000-0009B4	2-SMD Gull Wing	SMD	60 mA	84 lm	1.48 mm	0.058 in	0.197 in	5 mm	0.197 "	5 mm	175 mA	Surface Mount	120 °	20 V	70 lm/W	White	80
Cree LED MX6SWT-A1-0000-000CA7	2-SMD Gull Wing	SMD	60 mA	104 lm	1.48 mm	0.058 in	0.197 in	5 mm	0.197 "	5 mm	175 mA	Surface Mount	120 °	20 V	87 lm/W	Warm White	80	3250 K
Cree LED MX6SWT-A1-0000-000FB1	2-SMD Gull Wing	SMD	60 mA	126 lm	1.48 mm	0.058 in	0.197 in	5 mm	0.197 "	5 mm	175 mA	Surface Mount	120 °	20 V	105 lm/W	White
Cree LED MX6SWT-A1-R250-000FF4	2-SMD Gull Wing	SMD	60 mA	126 lm	1.48 mm	0.058 in	0.197 in	5 mm	0.197 "	5 mm	175 mA	Surface Mount	120 °	20 V	105 lm/W	Neutral White		4750 K
Cree LED MX6SWT-A1-R250-000AZ8	2-SMD Gull Wing	SMD	60 mA	91 lm	1.48 mm	0.058 in	0.197 in	5 mm	0.197 "	5 mm	175 mA	Surface Mount	120 °	20 V	76 lm/W	Warm White	80	2700 K	87 lm	94 lm
Cree LED MX6SWT-A1-0000-000AA9	2-SMD Gull Wing	SMD	60 mA	91 lm	1.48 mm	0.058 in	0.197 in	5 mm	0.197 "	5 mm	175 mA	Surface Mount	120 °	20 V	76 lm/W	Warm White	80	2850 K	87 lm	94 lm
Cree LED MX6SWT-A1-R250-000CE6	2-SMD Gull Wing	SMD	60 mA	104 lm	1.48 mm	0.058 in	0.197 in	5 mm	0.197 "	5 mm	175 mA	Surface Mount	120 °	20 V	87 lm/W	Warm White	80	3500 K
Cree LED MX6SWT-A1-0000-000EF4	2-SMD Gull Wing	SMD	60 mA	118 lm	1.48 mm	0.058 in	0.197 in	5 mm	0.197 "	5 mm	175 mA	Surface Mount	120 °	20 V	98 lm/W	Neutral White		4750 K
Cree LED MX6SWT-H1-R250-000BB6	2-SMD Gull Wing	SMD	60 mA	97 lm	1.48 mm	0.058 in	0.197 in	5 mm	0.197 "	5 mm	175 mA	Surface Mount	120 °	20 V	81 lm/W	White	80		94 lm	100 lm
Cree LED MX6SWT-H1-0000-000EZ5	2-SMD Gull Wing	SMD	60 mA	118 lm	1.48 mm	0.058 in	0.197 in	5 mm	0.197 "	5 mm	175 mA	Surface Mount	120 °	20 V	98 lm/W	Neutral White	80	4000 K
