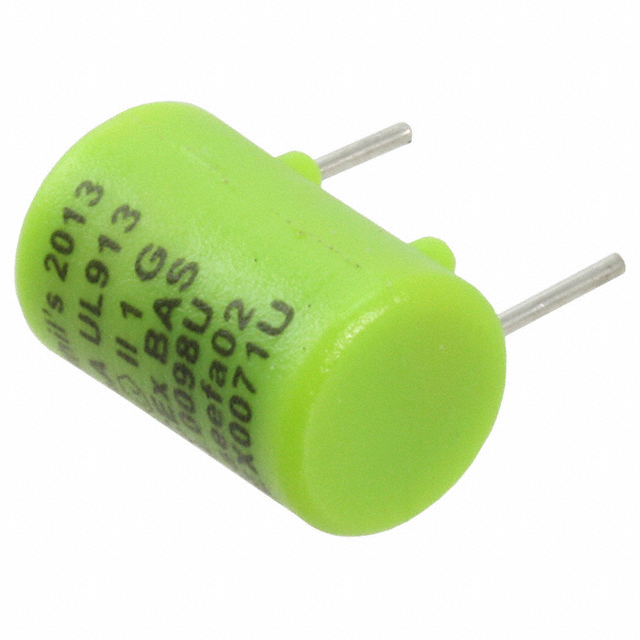

FUSE 125V IN SAFE HAZ LOC UL913 .062A
Beta
⌘K
FUSE 125V IN SAFE HAZ LOC UL913 .062A
FUSE 125V IN SAFE HAZ LOC UL913 .062A
| Part | DC Cold Resistance | Melting I²t | Voltage Rating - AC | Mounting Type | Package / Case | Voltage Rating - DC | Approval Agency | Breaking Capacity @ Rated Voltage | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Fuse Type | Features | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 7 Ohms | 0.00016 I²t | 125 VAC | Through Hole | Can Horizontal Radial | 125 VDC | Baseefa UR | 50 A 300 A | 62 mA | 90 °C | -55 C | 0.315 in | 13 mm | 8 mm | 0.512 " | Board Mount | Intrinsically Safe | Hazardous Locations |
