BU9844GUL-W Series

16KBit, I²C BUS, Low Power Serial EEPROM

Catalog

16KBit, I²C BUS, Low Power Serial EEPROM

Part	Technology	Clock Frequency	Mounting Type	Memory Type	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Memory Interface	Memory Size	Memory Format	Supplier Device Package	Write Cycle Time - Word, Page	Memory Organization
Rohm Semiconductor BU9844GUL-WE2	EEPROM	400 kHz	Surface Mount	Non-Volatile	6-UFBGA CSPBGA	5.5 V	1.7 V	85 °C	-40 °C	I2C	16 Kbit	EEPROM	VCSP50L1	5 ms	2K x 8

Catalog

16KBit, I²C BUS, Low Power Serial EEPROM

Key Features

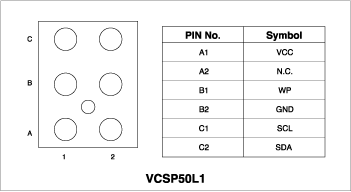

• EEPROMs in the WL-CSP optimized for compact modules and portable devicesVCSP50L1 : 1.60 × 1.84 × 0.55 mm, Completely conforming to I²C BUS, Wide operating voltage range:1.7 to 5.5V, Data rewrite up to 1,000,000times

Description

New package type, which is WL-CSP, is lined up to the high-reliability EEPROMs. There are a variety of interface products available such as I²C BUS and SPI BUS for the small application (i.e. wireless LAN, Blue tooth, and so on).
