SC-10 Series

Manufacturer: KEMET

Catalog

COMMON MODE FILTER, 10MH, 10A ROHS COMPLIANT: YES

Part	Inductance @ Frequency	Voltage Rating - AC	Voltage Rating - DC	Current Rating (Max) [Max]	Height (Max) [z]	Height (Max) [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	DC Resistance (DCR) (Max) [Max]	Filter Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Number of Lines	Height (Max) [diameter]	Height (Max) [diameter]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Height (Max) [z]	Height (Max) [z]

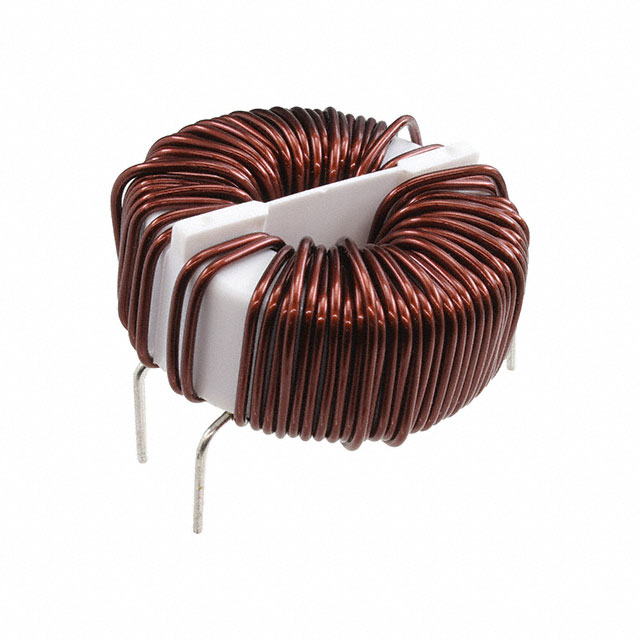

KEMET SC-10-1000	10 mH	250 V	250 V	10 A	1.181 in	30 mm	2.244 in	57 mm	35 mOhm	Power Line	Through Hole	-40 C	105 ░C	4 PC Pin Horizontal No Base	2

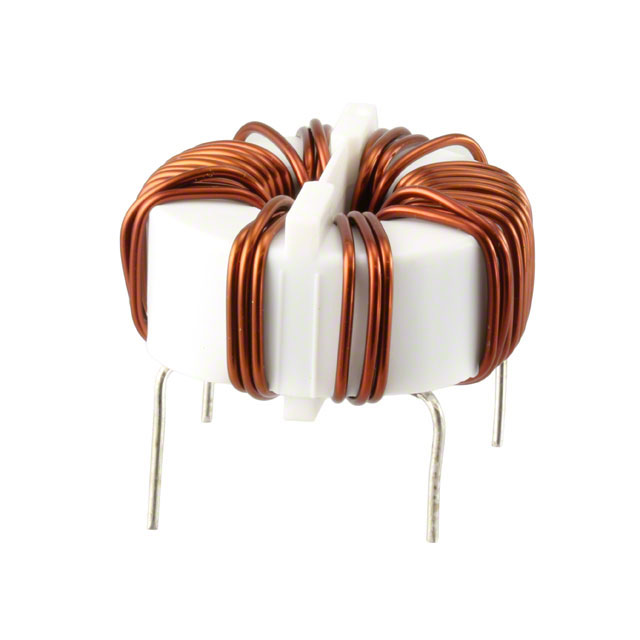

KEMET SC-10-200	2 mH	250 V	250 V	10 A	1.063 in	27 mm	1.85 "	47 mm	28 mOhm	Power Line	Through Hole	-40 C	105 ░C	4 PC Pin Horizontal No Base	2
KEMET SC-10-55JH	1 kHz 5.5 mH	250 V	250 V	10 A			2.008 in	51 mm		Power Line	Through Hole	-40 C	105 ░C	4 PC Pin Horizontal	2	1.339 in	34 mm

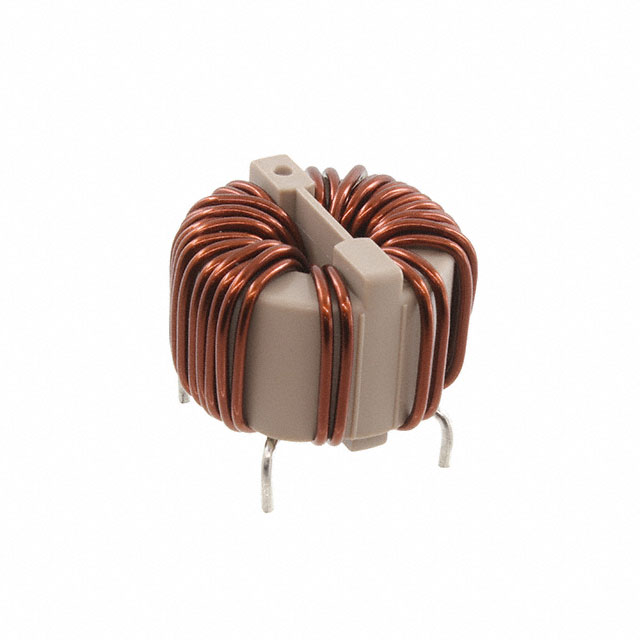

KEMET SC-10-E200H	2 mH 10 kHz	250 V	250 V	10 A	0.945 in	24 mm	1.339 "	34 mm	20 mOhm	Power Line	Through Hole	-40 C	120 °C	4 PC Pin Horizontal No Base	2

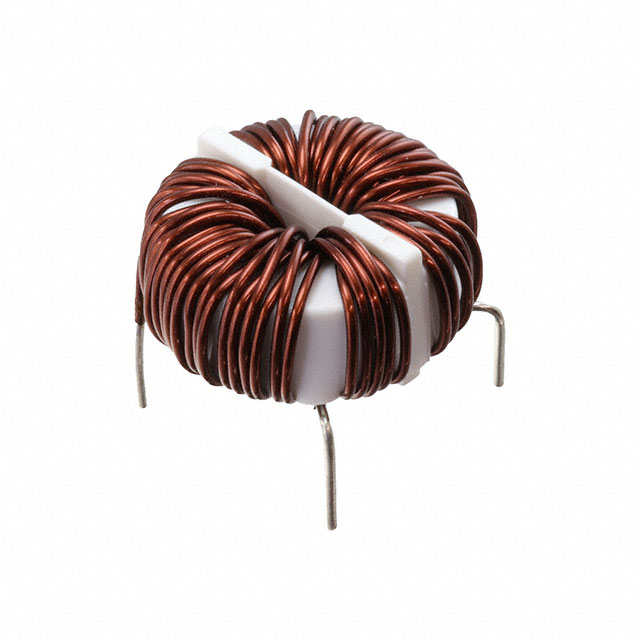

KEMET SC-10-500	5 mH 100 kHz	250 V	250 V	10 A	1.063 in	27 mm	1.929 in	49 mm	25 mOhm	Power Line	Through Hole	-40 C	105 ░C	4 PC Pin Horizontal No Base	2
KEMET SC-10-10J	1 mH	250 V	250 V	10 A					20 mOhm	Power Line	Through Hole	-40 C	105 ░C	Vertical 4 PC Pin	2			1.339 in	23 mm	34 mm	0.906 in	1.299 in	33 mm
KEMET SC-10-340	3.4 mH 100 kHz	250 V	250 V	10 A		1.89 in	1.89 in	48 mm	32 mOhm	Power Line	Through Hole	-40 C	105 ░C	Vertical No Base 4 PC Pin	2									48 mm

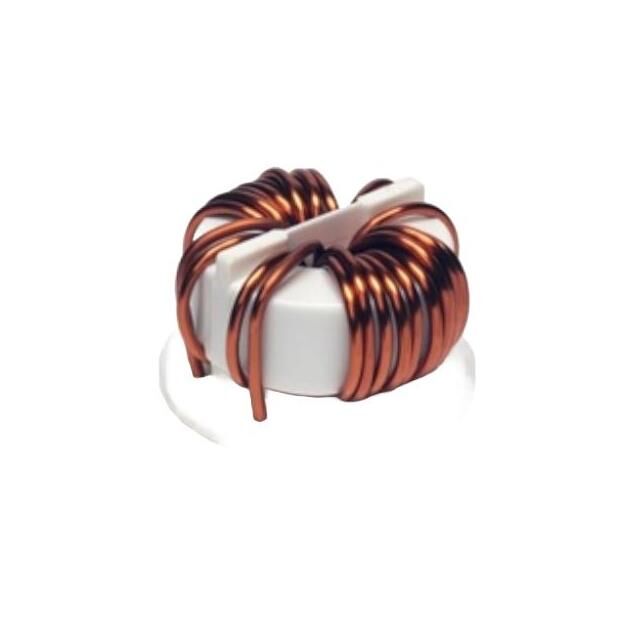

KEMET SC-10-20JH	2 mH	250 V	250 V	10 A		41 mm	1.654 "	42 mm	22 mOhm	Power Line	Through Hole	-40 C	105 ░C	4 PC Pin Horizontal	2										1.614 in
KEMET SC-10-E80JH	8 mH 10 kHz	250 V	250 V	10 A		1.378 in	2.087 "	53 mm		Power Line	Through Hole	-40 C	120 °C	4 PC Pin Horizontal	2									35 mm
