LD09P13 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

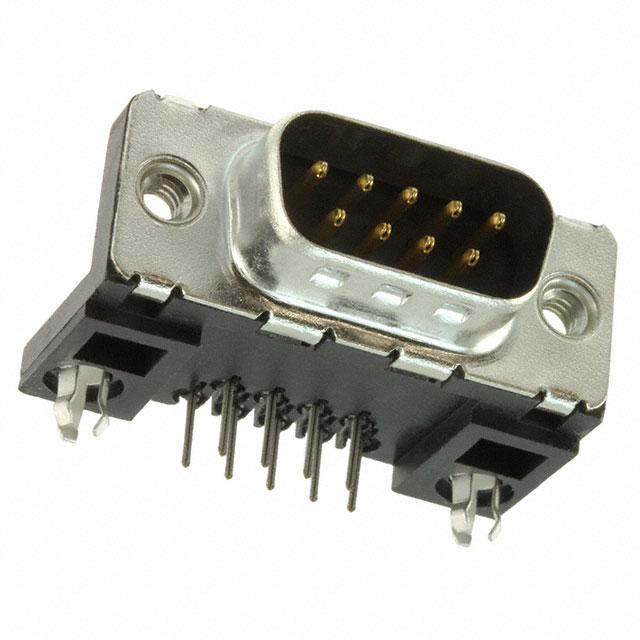

CONN D-SUB PLUG 9POS R/A SLDR
| Part | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Voltage Rating | Contact Material | Connector Style | Number of Positions | Termination | Mounting Type | Number of Rows [custom] | Material Flammability Rating | Contact Finish Thickness | Shell Material, Finish | Connector Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Current Rating (Amps) | Flange Feature | Flange Feature | Features | Contact Finish | Contact Type | Backset Spacing | Backset Spacing | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Thermoplastic | -55 C | 105 ░C | Black | 250 V | Copper Alloy | D-Sub | 9 | Solder | Board Edge Right Angle Through Hole | 2 | UL94 V-0 | Flash | Steel Tin-Nickel Plated | Plug Male Pins | 1 | DE E | 5 A | Housing/Shell | 4-40 | Board Lock Grounding Indents | Gold | Signal | 10.4 mm | 0.409 in | |
 Amphenol ICC (FCI) | Thermoplastic | -55 C | 105 ░C | Black | 250 V | Copper Alloy | D-Sub | 9 | Solder | Right Angle Through Hole | 2 | UL94 V-0 | Flash | Nickel Plated Steel | Plug Male Pins | 1 | DE E | 5 A | Mating Side Female Screwlock (M3) | Board Lock Grounding Indents | Gold | Signal | 10.4 mm | 0.409 in | Metal |
