EX-L211 Series

Catalog

SENSOR THROUGH-BEAM 1M PNP

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Ingress Protection	Response Time	Sensing Distance	Sensing Distance	Output Configuration	Sensing Method	Adjustment Type	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Cable Length	Cable Length	Light Source	Connection Method

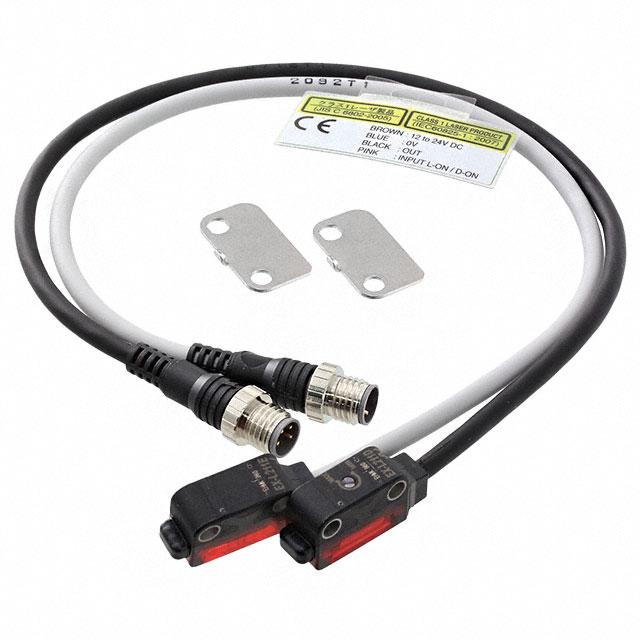

Panasonic Industrial Automation Sales EX-L211-P-J	12 V	24 V	IP67	500 µs	39.37 in	1 m	PNP - Open Collector	Through-Beam	Adjustable	55 °C	-10 °C	232 mm	9.13 in	Red Laser Diode (650nm)	Cable
Panasonic Industrial Automation Sales EX-L211-C5	12 V	24 V	IP67	500 µs	39.37 in	1 m	NPN - Open Collector	Through-Beam	Adjustable	55 °C	-10 °C	2 m	78.74 in	Red Laser Diode (650nm)	Cable

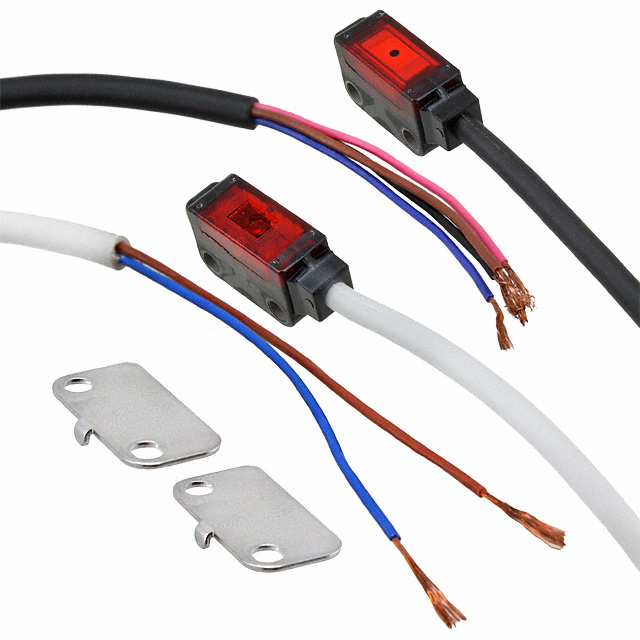

Panasonic Industrial Automation Sales EX-L211-P	12 V	24 V	IP67	500 µs	39.37 in	1 m	PNP - Open Collector	Through-Beam	Adjustable	55 °C	-10 °C	2 m	78.74 in	Red Laser Diode (650nm)	Cable
Panasonic Industrial Automation Sales EX-L211-P-C5	12 V	24 V	IP67	500 µs	39.37 in	1 m	PNP - Open Collector	Through-Beam	Adjustable	55 °C	-10 °C	2 m	78.74 in	Red Laser Diode (650nm)	Cable
