UF6017 Series
Manufacturer: Mechatronics Fan Group
Beta
⌘K

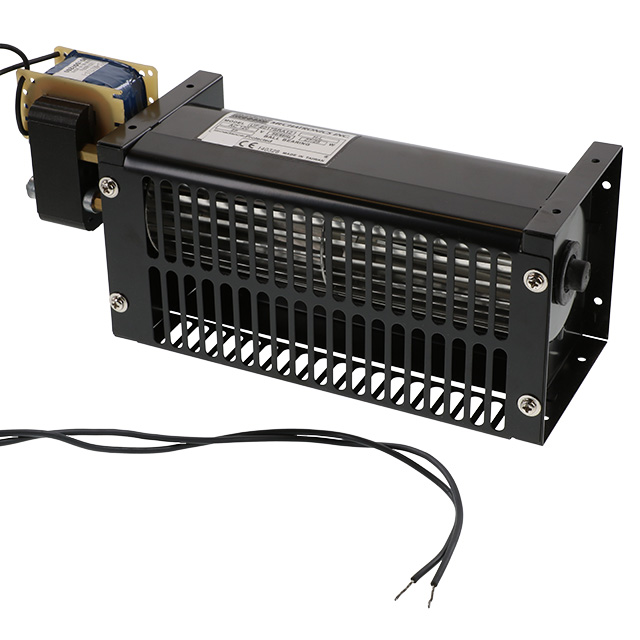

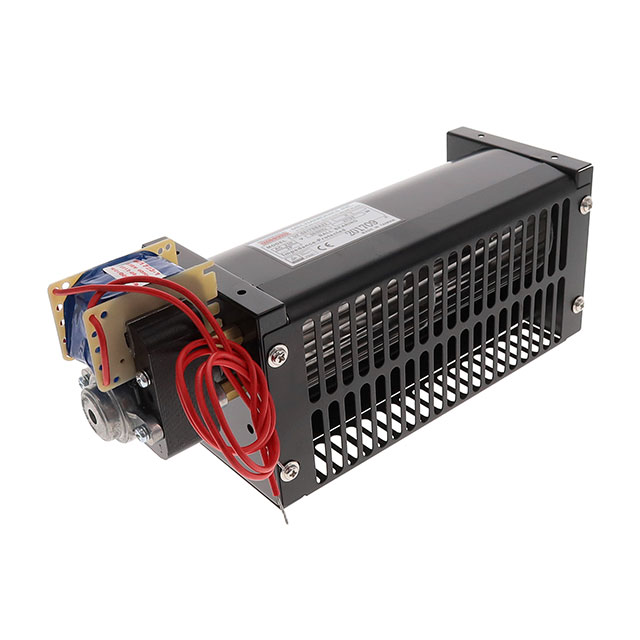

FAN BLWR CF 120VAC 266X98X90MM
| Part | Material - Blade [custom] | Current Rating (Amps) | Material - Frame | Termination | Static Pressure | Static Pressure | RPM | Weight [custom] | Weight [custom] | Fan Type | Width [x] | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Noise | Voltage - Rated | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension | Air Flow | Air Flow | Power (Watts) | Bearing Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mechatronics Fan Group | Aluminum | 400 mA | Steel | 2 Wire Leads | 54.8 Pa | 0.22 in H2O | 2000 RPM | 1.3 kg | 2.8 lbs | Blower Cross Flow | 98 mm | CE TUV | -40 C | 70 °C | 70 °C | -40 °C | 42 dB | 120 VAC | 266 mm | 90 mm | Rectangular | 2.49 m³/min | 89 CFM | 25 W | Ball |
 Mechatronics Fan Group | Aluminum | 0.2 A | Steel | 2 Wire Leads | 54.8 Pa | 0.22 in H2O | 2000 RPM | 1.3 kg | 2.8 lbs | Blower Cross Flow | 98 mm | CE TUV | -40 C | 70 °C | 70 °C | -40 °C | 42 dB | 230 VAC | 266 mm | 90 mm | Rectangular | 2.49 m³/min | 89 CFM | 25 W | Ball |
