SMTL2 Series

Catalog

LED UNI-COLOR ULTRA RED 2-PIN PLCC T/R

Part	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Wavelength - Dominant	Lens Transparency	Viewing Angle	Color	Millicandela Rating	Lens Style	Mounting Type	Configuration	Lens Color	Height (Max) [z]	Current - Test	Voltage - Forward (Vf) (Typ)	Supplier Device Package
Bivar Inc. SMTL2-URC	2.8 mm	3.2 mm	2-PLCC	622 nm	Clear	120 °	Red	850 mcd	Round with Flat Top	Surface Mount	Standard	Colorless	1.9 mm	20 mA	2 V	2-PLCC

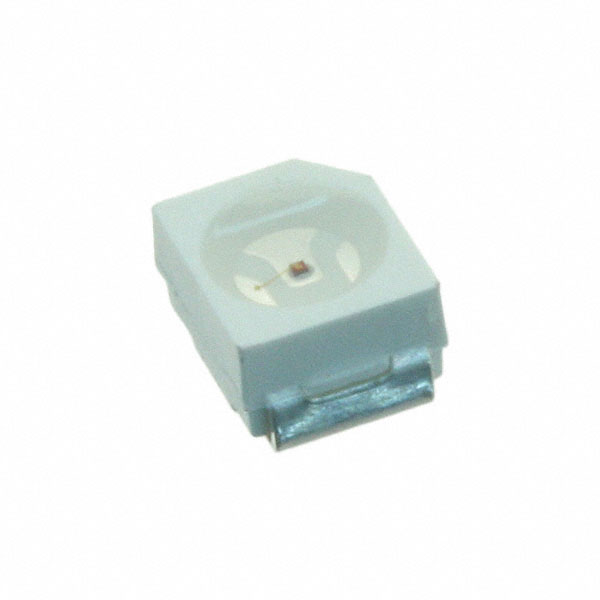

Bivar Inc. SMTL2-SRC	2.8 mm	3.2 mm	2-PLCC	627 nm 631 nm	Clear	120 °	Red	180 mcd	Round with Flat Top	Surface Mount	Standard	Colorless	1.9 mm 2.1 mm	20 mA	1.9 V 2 V	2-PLCC

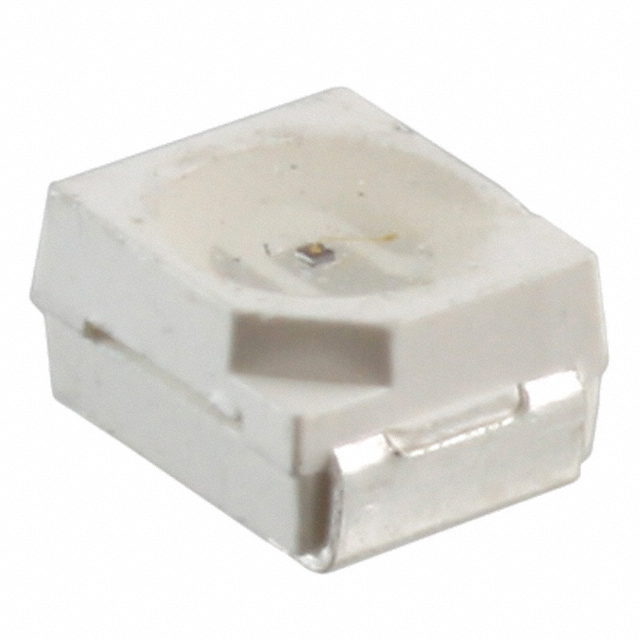

Bivar Inc. SMTL2-SYC	2.8 mm	3.2 mm	2-PLCC	590 nm 591 nm	Clear	120 °	Yellow	180 mcd	Round with Flat Top	Surface Mount	Standard	Colorless	1.9 mm 2.1 mm	20 mA	1.9 V 2 V	2-PLCC

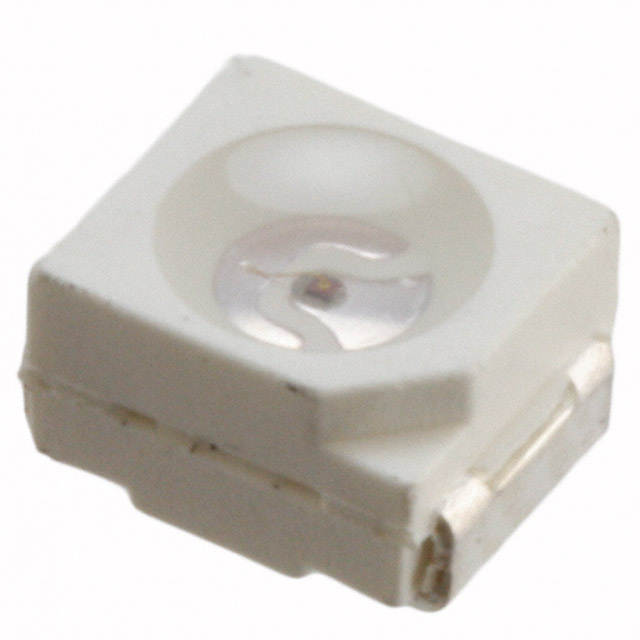

Bivar Inc. SMTL2-SPGC	2.8 mm	3.2 mm	2-PLCC	521 nm 525 nm	Clear	120 °	Green	570 mcd 1650 mcd	Round with Flat Top	Surface Mount	Standard	Colorless	1.9 mm 2.1 mm	20 mA	3 V 3.3 V	2-PLCC

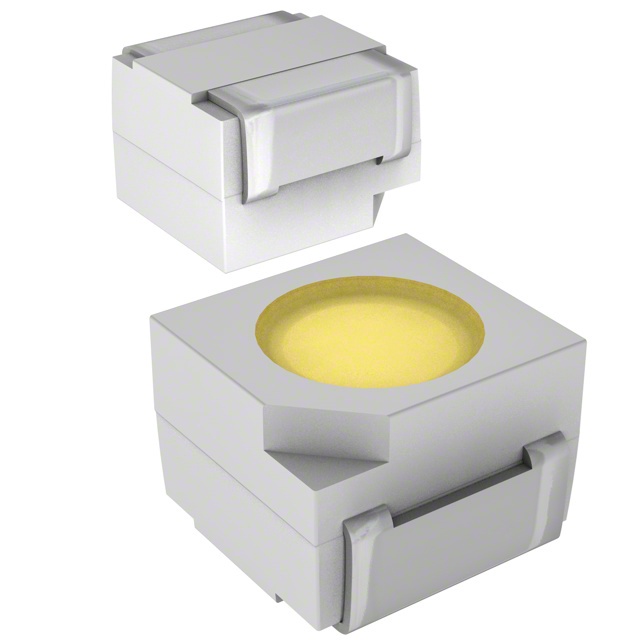

Bivar Inc. SMTL2-SUWD	2.8 mm	3.2 mm	2-PLCC		Diffused	120 °	White	2650 mcd	Round with Flat Top	Surface Mount	Standard	Yellow	2.1 mm	20 mA	3.2 V	2-PLCC

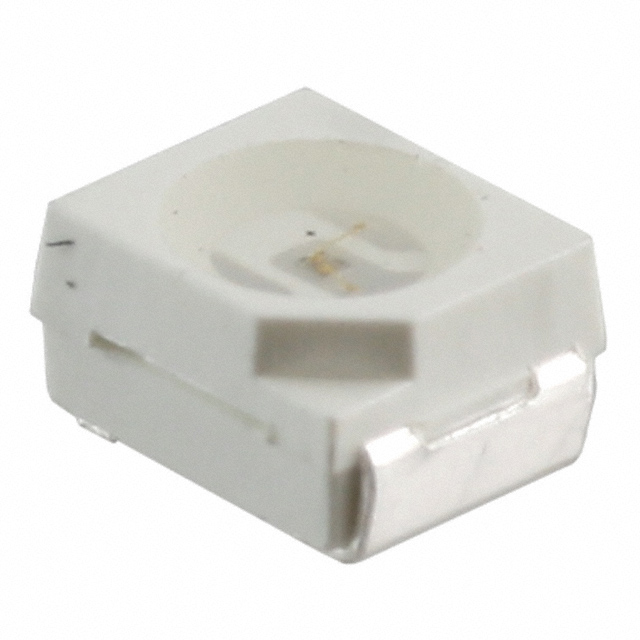

Bivar Inc. SMTL2-SBWC	2.8 mm	3.2 mm	2-PLCC	468 nm 470 nm	Clear	120 °	Blue	285 mcd 360 mcd	Round with Flat Top	Surface Mount	Standard	Colorless	1.9 mm 2.1 mm	20 mA	3.1 V 3.2 V	2-PLCC

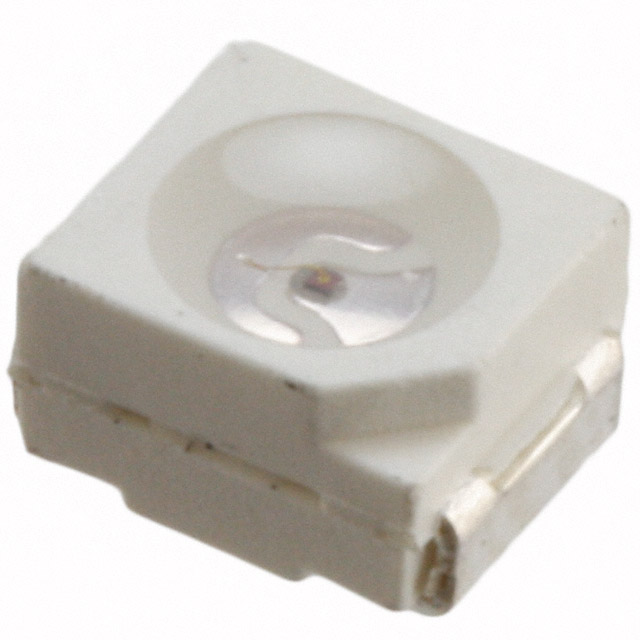

Bivar Inc. SMTL2-SGC	2.8 mm	3.2 mm	2-PLCC	572 nm 574 nm	Clear	120 °	Green	90 mcd 115 mcd	Round with Flat Top	Surface Mount	Standard	Colorless	1.9 mm 2.1 mm	20 mA	1.9 V 2.1 V	2-PLCC
Bivar Inc. SMTL2-GC	2.8 mm	3.2 mm	2-PLCC	570 nm 572 nm	Clear	120 °	Green	22.5 mcd 40 mcd	Round with Flat Top	Surface Mount	Standard	Colorless	1.9 mm 2.1 mm	20 mA	1.9 V 2 V	2-PLCC
Bivar Inc. SMTL2-RC	2.8 mm	3.2 mm	2-PLCC	640 nm	Clear	120 °	Red	36 mcd	Round with Flat Top	Surface Mount	Standard	Colorless	1.9 mm 2.1 mm	20 mA	1.85 V 1.9 V	2-PLCC

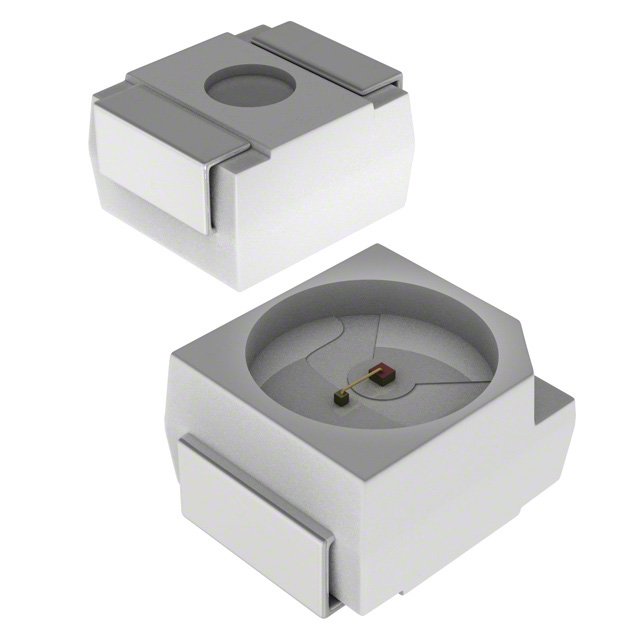

Bivar Inc. SMTL2-HC	2.8 mm	3.2 mm	2-PLCC	627 nm	Clear	120 °	Red	28 mcd	Round with Flat Top	Surface Mount	Standard	Colorless	2.1 mm	20 mA	1.9 V	2-PLCC
