VOT8026 Series

Manufacturer: Vishay Semiconductor Opto Division

Catalog

ZC, 800V, DIP6, 6PIN OPTOTRIAC,

Part	Voltage - Isolation [custom]	Current - On State (It (RMS)) (Max) [Max]	Current - Hold (Ih)	Number of Channels [custom]	Approval Agency	Supplier Device Package	Output Type	Static dV/dt (Min) [Min]	Voltage - Off State	Package / Case	Mounting Type	Current - LED Trigger (Ift) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current - DC Forward (If) (Max) [Max]	Package / Case	Package / Case

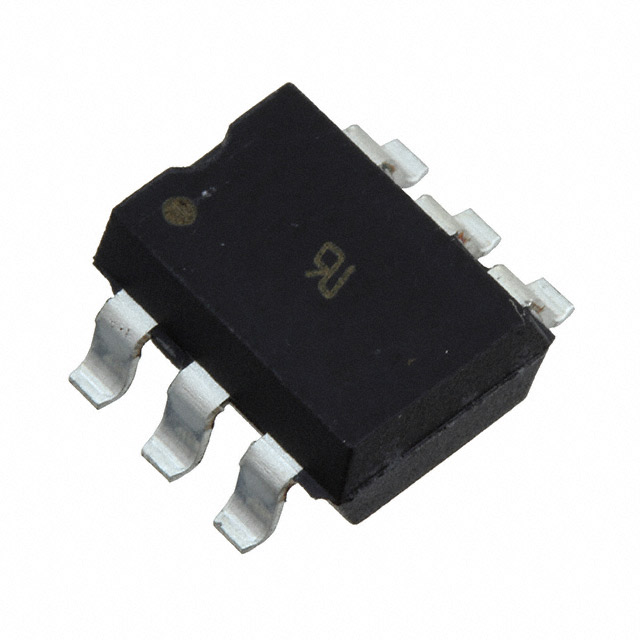

Vishay Semiconductor Opto Division VOT8026AB-T2	5300 Vrms	100 mA	400 µA	1	CQC cUL UL VDE	6-SMD	Triac	1 kV/µs	800 V	6-SMD Gull Wing	Surface Mount	5 mA	-40 C	110 °C	50 mA

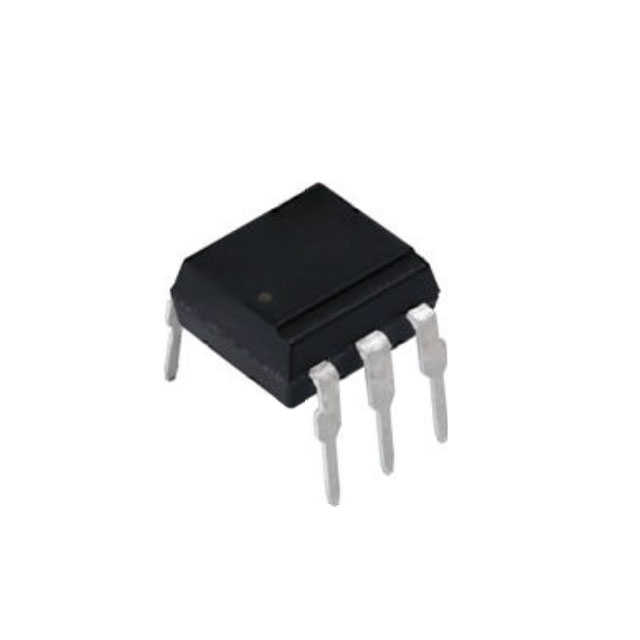

Vishay Semiconductor Opto Division VOT8026AD	5300 Vrms	100 mA	400 µA	1	CQC cUL UL VDE	6-DIP	Triac	1 kV/µs	800 V	6-DIP (0.300" 7.62mm)	Through Hole	5 mA	-40 C	110 °C	50 mA
Vishay Semiconductor Opto Division VOT8026AB-VT	5300 Vrms	100 mA	400 µA	1	CQC cUL UL VDE	6-SMD	Triac	1 kV/µs	800 V	6-SMD Gull Wing	Surface Mount	5 mA	-40 C	110 °C	50 mA
Vishay Semiconductor Opto Division VOT8026AG-V	5300 Vrms	100 mA	400 µA	1	CQC cUL UL VDE	6-DIP	Triac	1 kV/µs	800 V	6-DIP	Through Hole	5 mA	-40 C	110 °C	50 mA	10.16 mm	0.4 in
Vishay Semiconductor Opto Division VOT8026AB-VT2	5300 Vrms	100 mA	400 µA	1	CQC cUL UL VDE	6-SMD	Triac	1 kV/µs	800 V	6-SMD Gull Wing	Surface Mount	5 mA	-40 C	110 °C	50 mA
Vishay Semiconductor Opto Division VOT8026AB-T	5300 Vrms	100 mA	400 µA	1	CQC cUL UL VDE	6-SMD	Triac	1 kV/µs	800 V	6-SMD Gull Wing	Surface Mount	5 mA	-40 C	110 °C	50 mA
Vishay Semiconductor Opto Division VOT8026AB	5300 Vrms	100 mA	400 µA	1	CQC cUL UL VDE	6-SMD	Triac	1 kV/µs	800 V	6-SMD Gull Wing	Surface Mount	5 mA	-40 C	110 °C	50 mA
Vishay Semiconductor Opto Division VOT8026AG	5300 Vrms	100 mA	400 µA	1	CQC cUL UL VDE	6-DIP	Triac	1 kV/µs	800 V	6-DIP	Through Hole	5 mA	-40 C	110 °C	50 mA	10.16 mm	0.4 in
Vishay Semiconductor Opto Division VOT8026AD-V	5300 Vrms	100 mA	400 µA	1	CQC cUL UL VDE	6-DIP	Triac	1 kV/µs	800 V	6-DIP (0.300" 7.62mm)	Through Hole	5 mA	-40 C	110 °C	50 mA
Vishay Semiconductor Opto Division VOT8026AB-V	5300 Vrms	100 mA	400 µA	1	CQC cUL UL VDE	6-SMD	Triac	1 kV/µs	800 V	6-SMD Gull Wing	Surface Mount	5 mA	-40 C	110 °C	50 mA
