PES.1F Series
Manufacturer: LEMO
Beta
⌘K

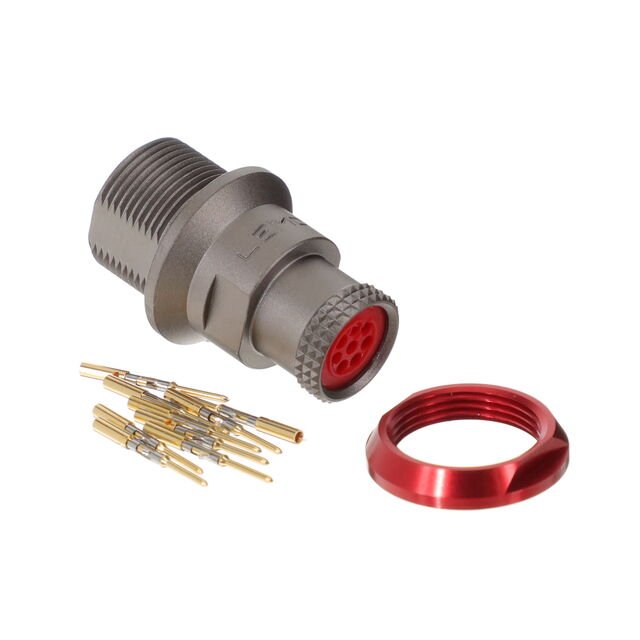

CONN RCPT MALE 8POS GOLD CRIMP
| Part | Connector Type | Shell Finish | Ingress Protection | Termination | Shell Material | Primary Material | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Feature | Shell Size - Insert | Number of Positions | Applications | Current Rating (Amps) | Mounting Type | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Fastening Type | Material Flammability Rating | Shielding | Cable Opening | Cable Opening | Insert Material | Contact Finish - Mating | Contact Material | Color | Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LEMO | Receptacle Male Pins | Nickel | IP67 - Dust Tight Waterproof | Crimp | Aluminum Alloy | Metal | -15 °C | 200 °C | Bulkhead - Front Side Nut | 308 | 8 | Aerospace | 5 A | Panel Mount | 39.4 µin | 1 µm | Push-Pull | UL94 V-0 | Shielded | 10.7 mm | 0.421 in | Polyetheretherketone (PEEK) | Gold | Brass | Gray | S |
