207398 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

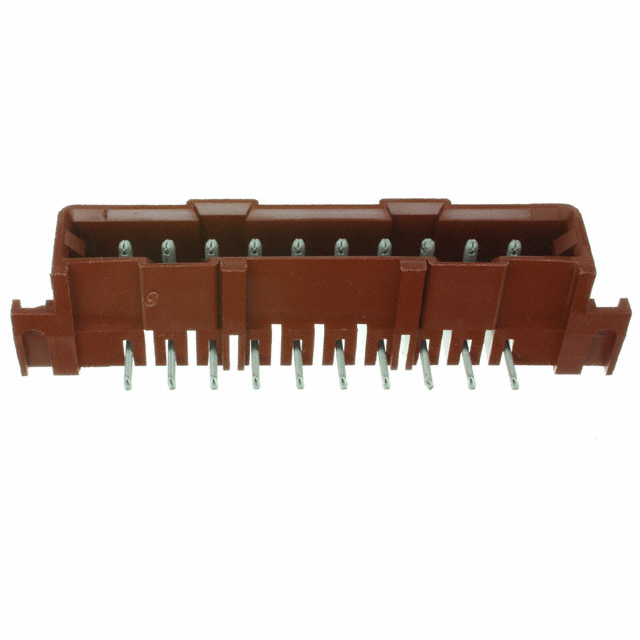

10 CONTACT(S), MALE, COMBINATION LINE CONNECTOR, SOLDER, PLUG
| Part | Contact Type | Contact Shape | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shrouding | Contact Material | Voltage Rating | Number of Rows | Style | Features | Current Rating (Amps) | Number of Positions | Insulation Color | Connector Type | Pitch - Mating | Pitch - Mating | Mounting Type | Fastening Type | Contact Finish - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Positions Loaded | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Material | Contact Length - Post | Contact Length - Post | Termination | Contact Finish - Post | Applications | Material Flammability Rating | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Male Pin | Circular | 150 Áin | 3.81 Ám | Shrouded - 4 Wall | Brass | 600 V | 1 | Board to Board Cable | Mounting Flange | 7.5 A | 10 | Black Red | Header | 5 mm | 0.197 " | Through Hole Right Angle | Latch Holder | Tin-Lead | 150 Áin | 3.81 Ám | All | 130 °C | -55 °C | Nylon Polyamide (PA) | 4.88 mm | 0.192 in | Solder | Tin-Lead | Automotive General Purpose Industrial | UL94 V-0 | 0.5 in | 12.7 mm |
