0363-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT .045-.065 SOLDER

Part	Operating Temperature [Min]	Operating Temperature [Max]	Flange Diameter [diameter]	Flange Diameter [diameter]	Termination	Contact Material	Tail Type	Length - Overall	Length - Overall	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Min] [diameter]	Contact Finish	Socket Depth	Socket Depth
Mill-Max Manufacturing Corp. 0363-0-15-01-23-01-10-0	-55 C	125 °C	3 mm	0.118 in	Solder	Beryllium Copper	No Tail	0.29 in	7.37 mm	0.102 in	2.59 mm	200 Áin	5.08 Ám	2.24 mm	0.088 "	0.045 "	1.65 mm	0.065 "	1.14 mm	Tin-Lead	0.255 in	6.48 mm
Mill-Max Manufacturing Corp. 0363-0-15-01-23-27-10-0	-55 C	125 °C	3 mm	0.118 in	Solder	Beryllium Copper	No Tail	0.29 in	7.37 mm	0.102 in	2.59 mm	30 Áin	0.76 Ám	2.24 mm	0.088 "	0.045 "	1.65 mm	0.065 "	1.14 mm	Gold	0.255 in	6.48 mm
Mill-Max Manufacturing Corp. 0363-0-15-01-23-14-10-0	-55 C	125 °C	3 mm	0.118 in	Solder	Beryllium Copper	No Tail	0.29 in	7.37 mm	0.102 in	2.59 mm	10 Áin	0.25 Ám	2.24 mm	0.088 "	0.045 "	1.65 mm	0.065 "	1.14 mm	Gold	0.255 in	6.48 mm
Mill-Max Manufacturing Corp. 0363-0-15-80-23-14-10-0	-55 C	125 °C	3 mm	0.118 in	Solder	Beryllium Copper	No Tail	0.29 in	7.37 mm	0.102 in	2.59 mm	10 Áin	0.25 Ám	2.24 mm	0.088 "	0.045 "	1.65 mm	0.065 "	1.14 mm	Gold	0.255 in	6.48 mm

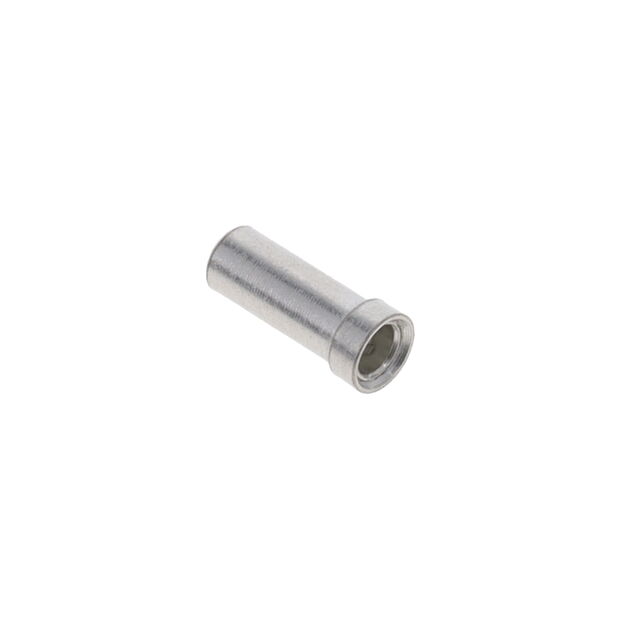

Mill-Max Manufacturing Corp. 0363-0-15-80-23-80-10-0	-55 C	125 °C	3 mm	0.118 in	Solder	Beryllium Copper	No Tail	0.29 in	7.37 mm	0.102 in	2.59 mm	200 Áin	5.08 Ám	2.24 mm	0.088 "	0.045 "	1.65 mm	0.065 "	1.14 mm	Tin	0.255 in	6.48 mm
