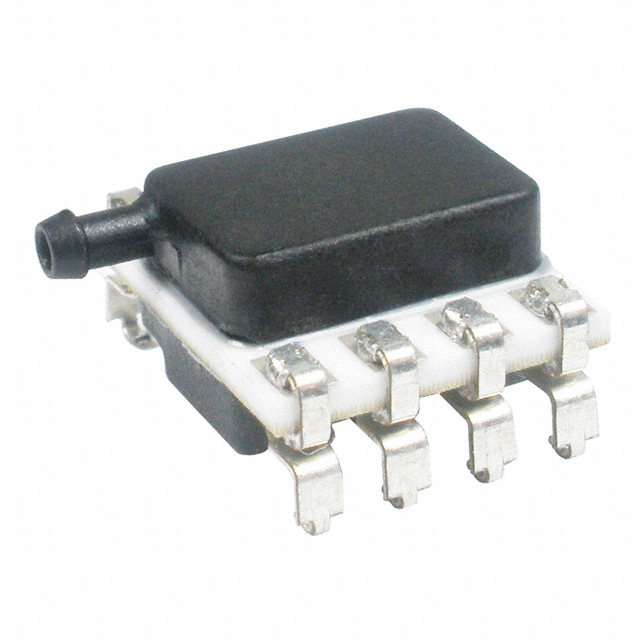

HSCMRNN Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SENSOR 3.63PSIG 0.08" 4.5V 8SMD

Part	Operating Pressure	Operating Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Accuracy	Output [Min]	Output [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Output Type	Port Style	Pressure Type	Features	Applications	Port Size [x]	Port Size	Port Size [x]	Package / Case	Termination Style	Maximum Pressure	Maximum Pressure	Maximum Pressure [Max]	Maximum Pressure [Max]	Operating Pressure [custom]	Operating Pressure [custom]	Maximum Pressure [Min]	Maximum Pressure [Min]	Output	Port Size	Port Size
Honeywell Sensing and Productivity Solutions HSCMRNN250MGAA5	25 kPa	3.63 PSI	85 °C	-20 C	Surface Mount	0.25 %	0.5 V	4.5 V	4.75 V	5.25 V	8-SMD	Analog Voltage	Barbed	Vented Gauge	Amplified Output Temperature Compensated	Board Mount	1.93 mm	Male	0.08 "	8-SMD J-Lead Side Port	J Lead	140 kPa	20.31 PSI

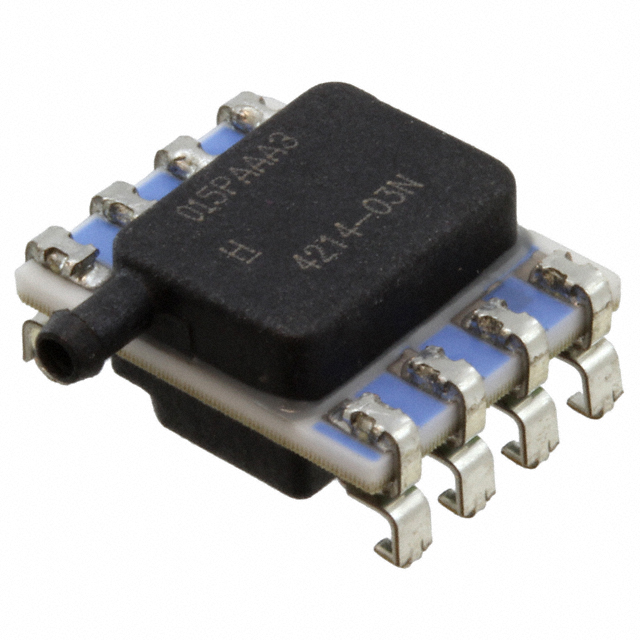

Honeywell Sensing and Productivity Solutions HSCMRNN015PAAA3			85 °C	-20 C	Surface Mount	0.25 %	0.33 V	2.97 V	3 V	3.6 V	8-SMD	Analog Voltage	Barbed		Amplified Output Temperature Compensated	Board Mount	1.93 mm	Male	0.08 "	8-SMD J-Lead Side Port	J Lead			30 PSI	206.84 kPa	15 PSI	103.42 kPa
Honeywell Sensing and Productivity Solutions HSCMRNN030PDSA3	206.84 kPa	30 PSI	85 °C	-20 C	Surface Mount	0.25 %			3 V	3.6 V	8-SMD	SPI	Barbed	Differential	Amplified Output Temperature Compensated	Board Mount	1.93 mm	Male	0.08 "	8-SMD J-Lead Side Port	J Lead			120 PSI	827.37 kPa			-120 PSI	-827.37 kPa	12 b
Honeywell Sensing and Productivity Solutions HSCMRNN100PASA3			85 °C	-20 C	Surface Mount	0.25 %			3 V	3.6 V		SPI	Barbed		Amplified Output Temperature Compensated	Board Mount		Dual Male Tube		8-SMD J-Lead Side Port	J Lead	75.02 kPa		10.88 PSI		15 PSI	103.42 kPa			12 b	1.93 mm	0.08 "
Honeywell Sensing and Productivity Solutions HSCMRNN030PASA3	206.84 kPa	30 PSI	85 °C	-20 C	Surface Mount	0.25 %			3 V	3.6 V	8-SMD	SPI	Barbed		Amplified Output Temperature Compensated	Board Mount	1.93 mm	Male	0.08 "	8-SMD J-Lead Side Port	J Lead			60 PSI	413.69 kPa					12 b
Honeywell Sensing and Productivity Solutions HSCMRNN100PGSA5	689.48 kPa	100 PSI	85 °C	-20 C	Surface Mount	0.25 %			4.75 V	5.25 V	8-SMD	SPI	Barbed	Vented Gauge	Amplified Output Temperature Compensated	Board Mount	1.93 mm	Male	0.08 "	8-SMD J-Lead Side Port	J Lead			250 PSI	1723.69 kPa					12 b
Honeywell Sensing and Productivity Solutions HSCMRNN060PDSA3	413.69 kPa	60 PSI	85 °C	-20 C	Surface Mount	0.25 %			3 V	3.6 V	8-SMD	SPI	Barbed	Differential	Amplified Output Temperature Compensated	Board Mount	1.93 mm	Male	0.08 "	8-SMD J-Lead Side Port	J Lead	1723.69 kPa	250 PSI							12 b
Honeywell Sensing and Productivity Solutions HSCMRNN1.6BA4A3	4 bar	58.02 PSI	85 °C	-20 C	Surface Mount	0.25 %			3.27 V	3.33 V	8-SMD	I2C	Barbed		Amplified Output Temperature Compensated	Board Mount	1.93 mm	Male	0.08 "	8-SMD J-Lead Side Port	J Lead	400 kPa	58.02 PSI							12 b
Honeywell Sensing and Productivity Solutions HSCMRNN001PDAA3
Honeywell Sensing and Productivity Solutions HSCMRNN030PA2A3	206.84 kPa	30 PSI	85 °C	-20 C	Surface Mount	0.25 %			3 V	3.6 V	8-SMD	I2C	Barbed		Amplified Output Temperature Compensated	Board Mount	1.93 mm	Male	0.08 "	8-SMD J-Lead Side Port	J Lead			60 PSI	413.69 kPa					12 b
