1219/25C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

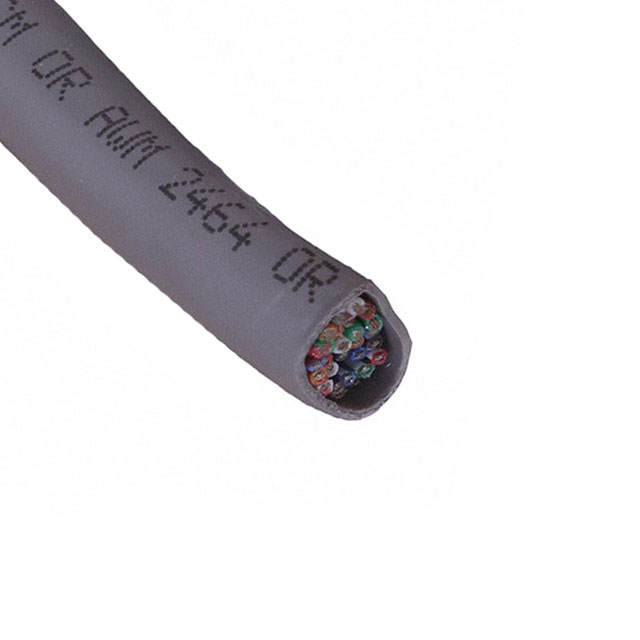

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 25 CONDUCTOR, 24 AWG, 0.23 MM², 500 FT, 152.4 M
| Part | Shield Coverage | Shield Material | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Wire Gauge | Jacket (Insulation) Material | Usage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Voltage | Features | Number of Conductors [custom] | Jacket Color | Shield Type | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Insulation | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | 152.4 m | 500 ft | 7 | 32 AWG | Copper Tinned | 24 AWG | Poly-Vinyl Chloride (PVC) | Communication Control | 0.813 mm | 0.032 in | Multi-Conductor | 300 VDC | Drain Wire | 25 | Slate | Foil | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | ||
ALPHA WIRE | 100 % | Aluminum | 7 | 32 AWG | Copper Tinned | 24 AWG | Poly-Vinyl Chloride (PVC) | Communication Control | 0.813 mm | 0.032 in | Multi-Conductor | 300 VDC | Drain Wire | 25 | Slate | Foil | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m |
