CWSB11AA Series

Catalog

ROCKER SWITCH, ON-NONE-OFF, SPST, NON ILLUMINATED, PANEL MOUNT, BLACK, CW SERIES

Part	Electrical Life	Mechanical Life	Actuator Marking	Circuit	Features	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Color - Actuator/Cap	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Actuator Type	Switch Function	Termination Style	Current Rating (Amps)	Voltage Rating - AC	Mounting Type
NKK Switches CWSB11AA3F	10000 Cycles	30000 Steps	Dot	SPST	Audible Click	70 °C	-10 °C	cULus	Black	12.9 mm	19.2 mm	Concave (Curved)	On-Off	Quick Connect	6 A	250 V	Panel Mount Snap-In
NKK Switches CWSB11AA3H	10000 Cycles	30000 Steps	Dot	SPST	Audible Click	70 °C	-10 °C	cULus	Black	12.9 mm	19.2 mm	Concave (Curved)	On-Off	PC Pin	6 A	250 V	Panel Mount Right Angle Snap-In
NKK Switches CWSB11AA1F	10000 Cycles	30000 Steps	O I	SPST	Audible Click	70 °C	-10 °C	cULus	Black	12.9 mm	19.2 mm	Concave (Curved)	On-Off	Quick Connect	6 A	250 V	Panel Mount Snap-In

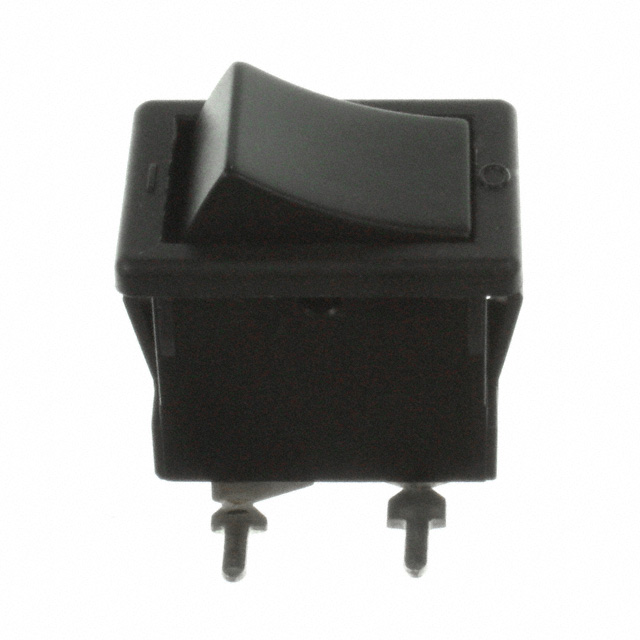

NKK Switches CWSB11AAH	10000 Cycles	30000 Steps	No Marking	SPST	Audible Click	70 °C	-10 °C	cULus	Black	12.9 mm	19.2 mm	Concave (Curved)	On-Off	PC Pin	6 A	250 V	Panel Mount Right Angle Snap-In
