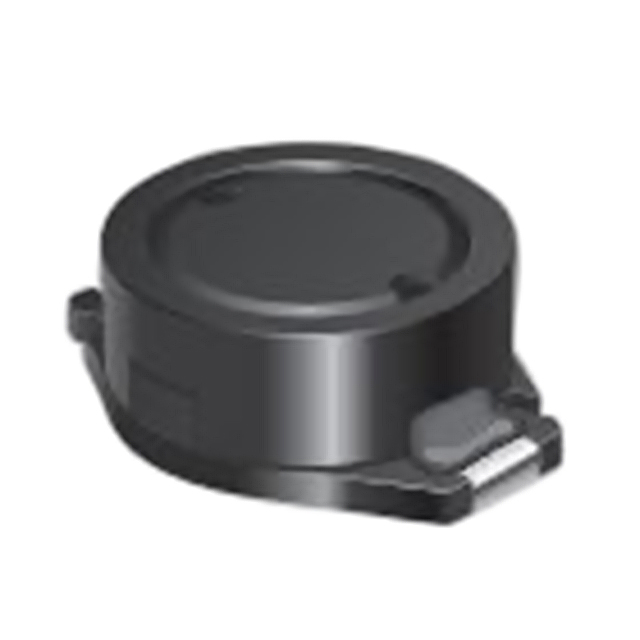

PM1608S Series

Catalog

FIXED IND 6.8UH 1.2A 65 MOHM SMD

Part	Tolerance	Package / Case	Material - Core	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Inductance Frequency - Test	Shielding	Q @ Freq [custom]	Q @ Freq [custom]	Inductance	Frequency - Self Resonant	Mounting Type	Type	DC Resistance (DCR) [Max]	Current Rating (Amps)	DC Resistance (DCR)	Q @ Freq
Bourns Inc. PM1608S-6R8M-RC	20 %	Nonstandard	Ferrite	6.6 mm	0.173 in	4.4 mm	0.26 in	0.118 "	3 mm	-55 C	125 °C	100 kHz	Shielded	200 kHz	40	6.8 µH	50 MHz	Surface Mount	Drum Core Wirewound	65 mOhm	1.2 A
Bourns Inc. PM1608S-152M-RC	20 %	Nonstandard	Ferrite	6.6 mm	0.173 in	4.4 mm	0.26 in	0.118 "	3 mm	-55 C	125 °C	100 kHz	Shielded	100 kHz	50	1.5 mH	2 MHz	Surface Mount	Drum Core Wirewound		120 mA	4.2 Ohm
Bourns Inc. PM1608S-222M-RC	20 %	Nonstandard	Ferrite	6.6 mm	0.173 in	4.4 mm	0.26 in	0.118 "	3 mm	-55 C	125 °C	100 kHz	Shielded	100 kHz	50	2.2 mH	2 MHz	Surface Mount	Drum Core Wirewound	8.5 Ohm	100 mA
Bourns Inc. PM1608S-150M-RC	20 %	Nonstandard	Ferrite	6.6 mm	0.173 in	4.4 mm	0.26 in	0.118 "	3 mm	-55 C	125 °C	100 kHz	Shielded			15 µH	33 MHz	Surface Mount	Drum Core Wirewound	90 mOhm	800 mA		40 100 kHz
Bourns Inc. PM1608S-151M-RC	20 %	Nonstandard	Ferrite	6.6 mm	0.173 in	4.4 mm	0.26 in	0.118 "	3 mm	-55 C	125 °C	100 kHz	Shielded			150 µH	9 MHz	Surface Mount	Drum Core Wirewound	590 mOhm	0.26 A		40 100 kHz
Bourns Inc. PM1608S-102M	20 %	Nonstandard	Ferrite	6.6 mm	0.175 "	4.45 mm	0.26 in			-40 C	85 °C	100 kHz	Shielded			1 mH	2 MHz	Surface Mount	Drum Core Wirewound	3.4 Ohm	150 mA
Bourns Inc. PM1608S-470M-RC	20 %	Nonstandard	Ferrite	6.6 mm	0.173 in	4.4 mm	0.26 in	0.118 "	3 mm	-55 C	125 °C	100 kHz	Shielded			47 µH	20 MHz	Surface Mount	Drum Core Wirewound	230 mOhm	0.5 A		40 100 kHz
Bourns Inc. PM1608S-4R7M-RC	20 %	Nonstandard	Ferrite	6.6 mm	0.173 in	4.4 mm	0.26 in	0.118 "	3 mm	-55 C	125 °C	100 kHz	Shielded	200 kHz	40	4.7 ÁH	105 MHz	Surface Mount	Drum Core Wirewound		1.4 A
Bourns Inc. PM1608S-332M-RC	20 %	Nonstandard	Ferrite	6.6 mm	0.173 in	4.4 mm	0.26 in	0.118 "	3 mm	-55 C	125 °C	100 kHz	Shielded	100 kHz	50	3300 µH	1 MHz	Surface Mount	Drum Core Wirewound	11 Ohm	80 mA
Bourns Inc. PM1608S-680M	20 %	Nonstandard	Ferrite	6.6 mm	0.175 "	4.45 mm	0.26 in			-40 C	85 °C	100 kHz	Shielded			68 µH	15 MHz	Surface Mount	Drum Core Wirewound		400 mA	290 mOhm
