5500UG Series

Catalog

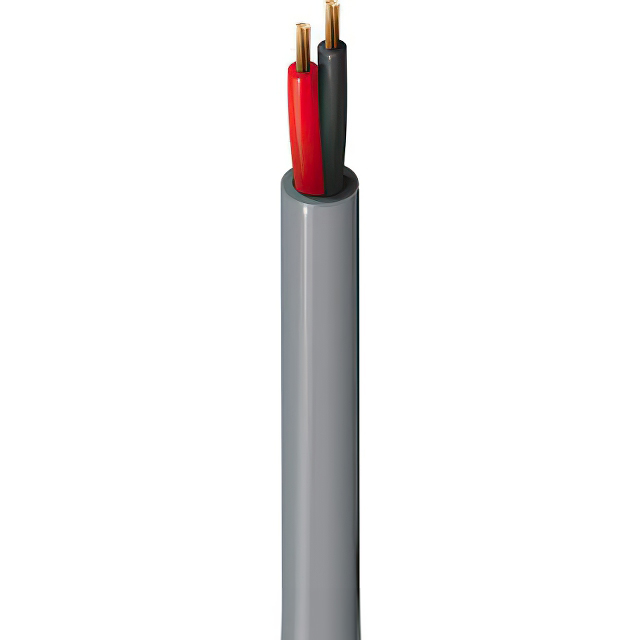

CABLE 2COND 22AWG VIO

Part	Wire Gauge	Jacket (Insulation) Thickness [x]	Jacket (Insulation) Thickness [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Cable Type	Usage	Length	Length	Number of Conductors	Conductor Material	Jacket Color	Jacket (Insulation) Material
Belden Inc. 5500UG 007U500	22 AWG	0.381 mm	0.015 in	2.89 mm	0.114 "	300 VDC	30 AWG	7	Polypropylene (PP)	Multi-Conductor	Security Sound	152.4 m	500 ft	2	Copper Bare	Violet	Poly-Vinyl Chloride (PVC)
Belden Inc. 5500UG 004U500	22 AWG	0.381 mm	0.015 in	2.89 mm	0.114 "		30 AWG	7	Polypropylene (PP)	Multi-Conductor	Alarm Security Sound	152.4 m	500 ft	2	Copper Bare	Yellow	Poly-Vinyl Chloride (PVC)
Belden Inc. 5500UG 008C1000	22 AWG	0.381 mm	0.015 in	2.89 mm	0.114 "	300 VDC	30 AWG	7	Polypropylene (PP)	Multi-Conductor	Security Sound	304.8 m	1000 ft	2	Copper Bare	Gray	Poly-Vinyl Chloride (PVC)
Belden Inc. 5500UG U4FC1000	22 AWG	0.381 mm	0.015 in	2.89 mm	0.114 "	300 VDC	30 AWG	7	Polypropylene (PP)	Multi-Conductor	Security Sound	304.8 m	1000 ft	2	Copper Bare	Beige	Poly-Vinyl Chloride (PVC)
Belden Inc. 5500UG 008U1000	22 AWG	0.381 mm	0.015 in	2.89 mm	0.114 "	300 VDC	30 AWG	7	Polypropylene (PP)	Multi-Conductor	Security Sound	304.8 m	1000 ft	2	Copper Bare	Gray	Poly-Vinyl Chloride (PVC)
Belden Inc. 5500UG 005U500	22 AWG	0.381 mm	0.015 in	2.89 mm	0.114 "	300 VDC	30 AWG	7	Polypropylene (PP)	Multi-Conductor	Security Sound	152.4 m	500 ft	2	Copper Bare	Green	Poly-Vinyl Chloride (PVC)
Belden Inc. 5500UG 009C500	22 AWG	0.381 mm	0.015 in	2.89 mm	0.114 "		30 AWG	7	Polypropylene (PP)	Multi-Conductor	Alarm Security Sound	152.4 m	500 ft	2	Copper Bare	White	Poly-Vinyl Chloride (PVC)
Belden Inc. 5500UG 006U500	22 AWG	0.381 mm	0.015 in	2.89 mm	0.114 "		30 AWG	7	Polypropylene (PP)	Multi-Conductor	Alarm Security Sound	152.4 m	500 ft	2	Copper Bare	Blue	Poly-Vinyl Chloride (PVC)
Belden Inc. 5500UG 003U500	22 AWG	0.381 mm	0.015 in	2.89 mm	0.114 "	300 VDC	30 AWG	7	Polypropylene (PP)	Multi-Conductor	Security Sound	152.4 m	500 ft	2	Copper Bare	Orange	Poly-Vinyl Chloride (PVC)
Belden Inc. 5500UG U4FU500	22 AWG	0.381 mm	0.015 in	2.89 mm	0.114 "	300 VDC	30 AWG	7	Polypropylene (PP)	Multi-Conductor	Security Sound	152.4 m	500 ft	2	Copper Bare	Beige	Poly-Vinyl Chloride (PVC)
