ATM4-6 Series

Manufacturer: Autonics

Catalog

RELAY TIME DELAY 5SEC 3A 250V

Part	Timing Initiate Method	Function	Voltage - Supply	Contact Rating @ Voltage	Mounting Type	Relay Type	Delay Time [Max]	Delay Time [Min]	Circuit	Timing Adjustment Method	Termination Style	Termination Style
Autonics ATM4-65S	Input Voltage	On-Delay	110 VAC/DC	3 A 24 VDC 250 VAC	Socketable	Mechanical Relay	5 Sec	0.5 Sec	4PDT (4 Form C)	Hand Dial	14 Pin	Plug In
Autonics ATM4-63H	Input Voltage	On-Delay	110 VAC/DC	3 A 24 VDC 250 VAC	Socketable	Mechanical Relay	3 Hrs	0.3 Hrs	4PDT (4 Form C)	Hand Dial	14 Pin	Plug In

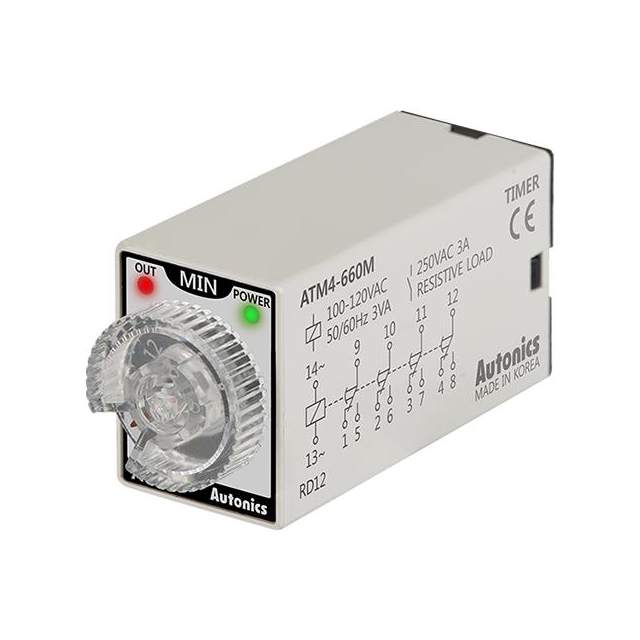

Autonics ATM4-660M	Input Voltage	On-Delay	110 VAC/DC	3 A 24 VDC 250 VAC	Socketable	Mechanical Relay	60 Min	6 Min	4PDT (4 Form C)	Hand Dial	14 Pin	Plug In
Autonics ATM4-61S	Input Voltage	On-Delay	110 VAC/DC	3 A 24 VDC 250 VAC	Socketable	Mechanical Relay	1 Sec	0.1 Sec	4PDT (4 Form C)	Hand Dial	14 Pin	Plug In
Autonics ATM4-610S	Input Voltage	On-Delay	110 VAC/DC	3 A 24 VDC 250 VAC	Socketable	Mechanical Relay	10 s	1 Sec	4PDT (4 Form C)	Hand Dial	14 Pin	Plug In
Autonics ATM4-660S	Input Voltage	On-Delay	110 VAC/DC	3 A 24 VDC 250 VAC	Socketable	Mechanical Relay	60 Sec	6 Sec	4PDT (4 Form C)	Hand Dial	14 Pin	Plug In
