93A1A Series
Manufacturer: Bourns Inc.
Beta
⌘K

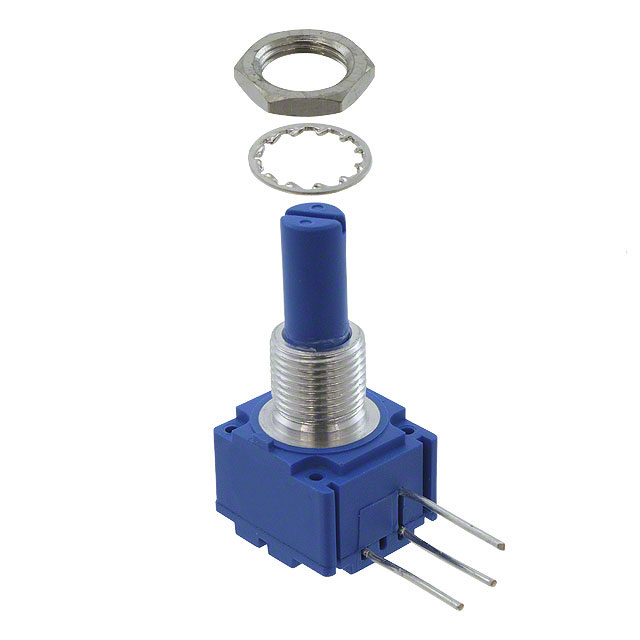

POT 10K OHM 2W CERMET LINEAR
| Part | Size - Body [x] | Size - Body [x] | Size - Body [y] | Size - Body [y] | Built in Switch | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Mounting Type | Number of Gangs | Actuator Type | Tolerance | Number of Turns | Rotation | Actuator Length [x] | Actuator Length [x] | Temperature Coefficient | Resistance (Ohms) | Adjustment Type | Taper | Bushing Thread | Termination Style | Power (Watts) | Resistive Material | Resistance (Ohms) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 17.45 mm | 0.687 " | 0.625 " | 15.88 mm | None | 6.35 mm | 0.25 in | Panel Mount | 1 | Slotted | 10 % | 1 | 300 ░ | 0.875 in | 22.23 mm | 150 ppm/°C | 10k | Side Adjustment | Linear | 3/8-32 | PC Pins | 2 W | Cermet | |
Bourns Inc. | 17.45 mm | 0.687 " | 0.625 " | 15.88 mm | None | 6.35 mm | 0.25 in | Panel Mount | 1 | Slotted | 10 % | 1 | 300 ░ | 0.875 in | 22.23 mm | 150 ppm/°C | Side Adjustment | Linear | 3/8-32 | PC Pins | 2 W | Cermet | 50 kOhms |
