5550N Series
Manufacturer: Knowles Syfer
Beta
⌘K

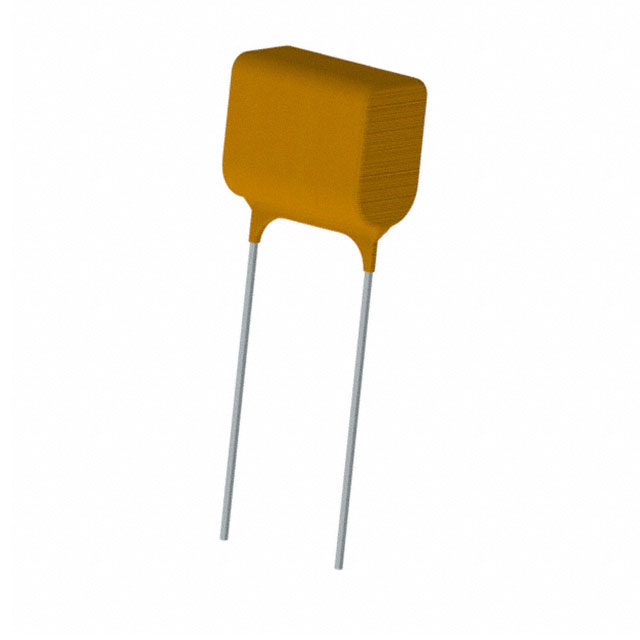

CAP CER 390PF 10KV C0G/NP0 RAD
| Part | Voltage - Rated | Voltage - Rated | Temperature Coefficient | Lead Style | Features | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Tolerance | Capacitance | Operating Temperature [Min] | Operating Temperature [Max] | Lead Spacing | Lead Spacing | Applications | Package / Case | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Knowles Syfer | 10 kV | 10 kV | C0G NP0 | Straight | High Voltage | 17.78 mm | 0.7 " | 0.402 in | 10.2 mm | 5 % | 390 pF | -55 C | 125 °C | 14.73 mm | 0.58 in | General Purpose | Radial | 19.68 mm | 0.775 " | Through Hole |
Knowles Syfer | 10 kV | 10 kV | C0G NP0 | Straight | High Voltage | 17.78 mm | 0.7 " | 0.402 in | 10.2 mm | 5 % | 100 pF | -55 C | 125 °C | 14.73 mm | 0.58 in | General Purpose | Radial | 19.68 mm | 0.775 " | Through Hole |
Knowles Syfer | 10 kV | 10 kV | C0G NP0 | Straight | High Voltage | 17.78 mm | 0.7 " | 0.402 in | 10.2 mm | 5 % | 330 pF | -55 C | 125 °C | 14.73 mm | 0.58 in | General Purpose | Radial | 19.68 mm | 0.775 " | Through Hole |
Knowles Syfer | 10 kV | 10 kV | C0G NP0 | Straight | High Voltage | 17.78 mm | 0.7 " | 0.402 in | 10.2 mm | 5 % | 2200 pF | -55 C | 125 °C | 14.73 mm | 0.58 in | General Purpose | Radial | 19.68 mm | 0.775 " | Through Hole |
Knowles Syfer | 6000 V | 6 kV | C0G NP0 | Straight | High Voltage | 17.78 mm | 0.7 " | 0.402 in | 10.2 mm | 5 % | 100 pF | -55 C | 125 °C | 14.73 mm | 0.58 in | General Purpose | Radial | 19.68 mm | 0.775 " | Through Hole |
Knowles Syfer | 6000 V | 6 kV | C0G NP0 | Straight | High Voltage | 17.78 mm | 0.7 " | 0.402 in | 10.2 mm | 5 % | 47 pF | -55 C | 125 °C | 14.73 mm | 0.58 in | General Purpose | Radial | 19.68 mm | 0.775 " | Through Hole |
Knowles Syfer | 10 kV | 10 kV | C0G NP0 | Straight | High Voltage | 17.78 mm | 0.7 " | 0.402 in | 10.2 mm | 5 % | 150 pF | -55 C | 125 °C | 14.73 mm | 0.58 in | General Purpose | Radial | 19.68 mm | 0.775 " | Through Hole |
Knowles Syfer | 10 kV | 10 kV | C0G NP0 | Straight | High Voltage | 17.78 mm | 0.7 " | 0.402 in | 10.2 mm | 5 % | 0.001 µF | -55 C | 125 °C | 14.73 mm | 0.58 in | General Purpose | Radial | 19.68 mm | 0.775 " | Through Hole |
Knowles Syfer | 10 kV | 10 kV | C0G NP0 | Straight | High Voltage | 17.78 mm | 0.7 " | 0.402 in | 10.2 mm | 5 % | 560 pF | -55 C | 125 °C | 14.73 mm | 0.58 in | General Purpose | Radial | 19.68 mm | 0.775 " | Through Hole |
Knowles Syfer | 6000 V | 6 kV | C0G NP0 | Straight | High Voltage | 17.78 mm | 0.7 " | 0.402 in | 10.2 mm | 5 % | 330 pF | -55 C | 125 °C | 14.73 mm | 0.58 in | General Purpose | Radial | 19.68 mm | 0.775 " | Through Hole |
