AWH 10A Series

Catalog

CONN HEADER R/A 10POS 2.54MM

Part	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Style	Contact Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post [x]	Contact Length - Post [x]	Features	Pitch - Mating	Pitch - Mating	Contact Material	Number of Positions Loaded	Shrouding	Material Flammability Rating	Termination	Contact Finish - Mating	Insulation Material	Insulation Height [z]	Insulation Height	Fastening Type	Number of Positions	Contact Finish Thickness - Mating	Contact Shape	Contact Finish - Post	Number of Rows [custom]	Current Rating (Amps)	Insulation Color	Mounting Type	Insulation Height
Assmann WSW Components AWH 10A-0222-T	0.1 in	2.54 mm	Board to Cable/Wire	Male Pin	Header	-40 C	105 ░C	3.81 mm	0.15 in	Keying Slot	0.1 "	2.54 mm	Brass	All	Shrouded - 4 Wall	UL94 V-0	Solder	Gold	Polybutylene Terephthalate (PBT) Glass Filled	0.327 "	8.3 mm	Latch Lock/Eject Hooks	10	Flash	Square	Tin	2	3 A	Gray	Right Angle Through Hole

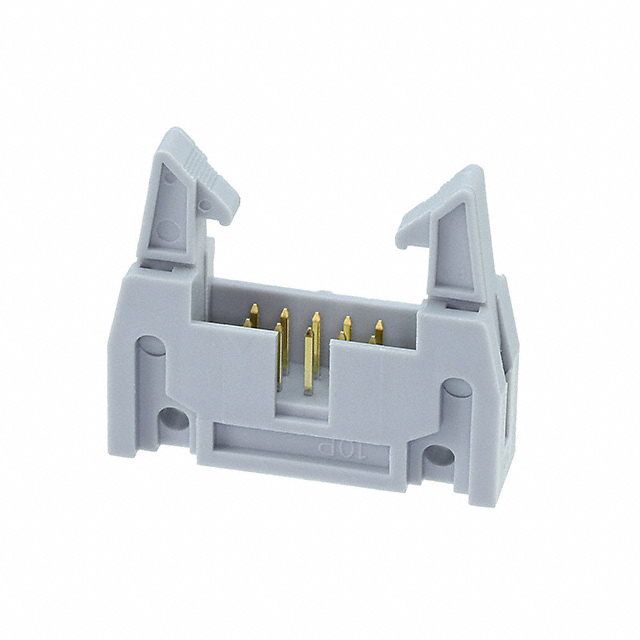

Assmann WSW Components AWH 10A-0232-T	0.1 in	2.54 mm	Board to Cable/Wire	Male Pin	Header	-40 C	105 ░C	3.81 mm	0.15 in	Keying Slot	0.1 "	2.54 mm	Brass	All	Shrouded - 4 Wall	UL94 V-0	Solder	Gold	Polybutylene Terephthalate (PBT) Glass Filled	0.327 "	8.3 mm	Latch Lock/Eject Hooks Long	10	Flash	Square	Tin	2	3 A	Gray	Right Angle Through Hole

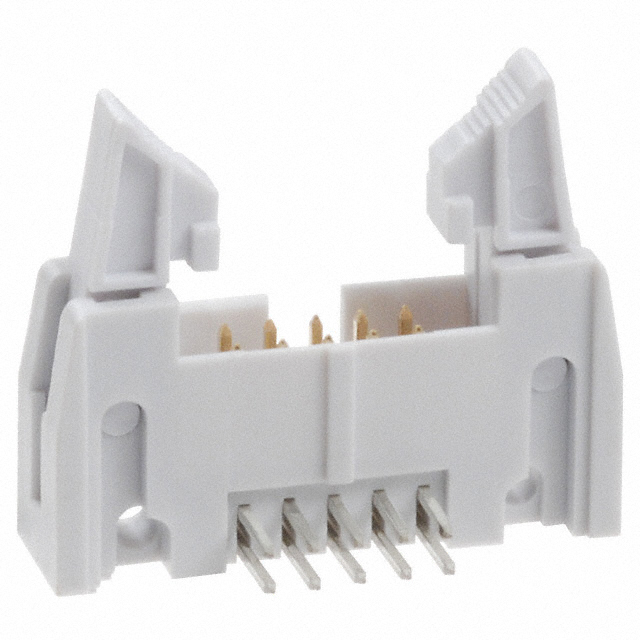

Assmann WSW Components AWH10A-0222-T-R	0.1 in	2.54 mm	Board to Cable/Wire	Male Pin	Header	-40 C	105 ░C	3.81 mm	0.15 in	Keying Slot	0.1 "	2.54 mm	Brass	All	Shrouded - 4 Wall	UL94 V-0	Solder	Gold	Polybutylene Terephthalate (PBT) Glass Filled		17 mm	Latch Lock/Eject Hooks	10	Flash	Square	Tin	2	3 A	Gray	Right Angle Through Hole	0.669 in
