PR20B04VB Series

Catalog

PIN HEADER, THR, DUAL ROW, 1.27

Part	Contact Finish - Mating	Insulation Color	Overall Contact Length	Overall Contact Length	Insulation Material	Contact Length - Post [custom]	Contact Length - Post	Shrouding	Fastening Type	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating	Contact Length - Mating	Termination	Pitch - Mating	Pitch - Mating	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Number of Positions	Number of Rows [custom]	Contact Material	Contact Shape	Mounting Type	Number of Rows

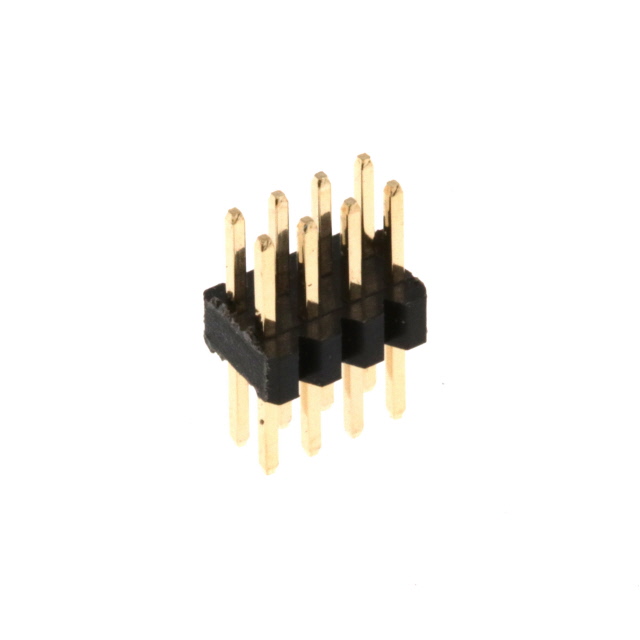

METZ CONNECT USA Inc. PR20B04VBDN	Gold	Black	7.3 mm	0.287 in	Polyethylene	0.11 in	2.79 mm	Unshrouded	Push-Pull	All	Flash	Male Pin	-40 C	105 ░C	3 mm	0.118 in	Solder	1.27 mm	0.05 in	Header	0.05 in	1.27 mm	0.059 in	1.5 mm	8	2	Copper Zinc	Square	Through Hole

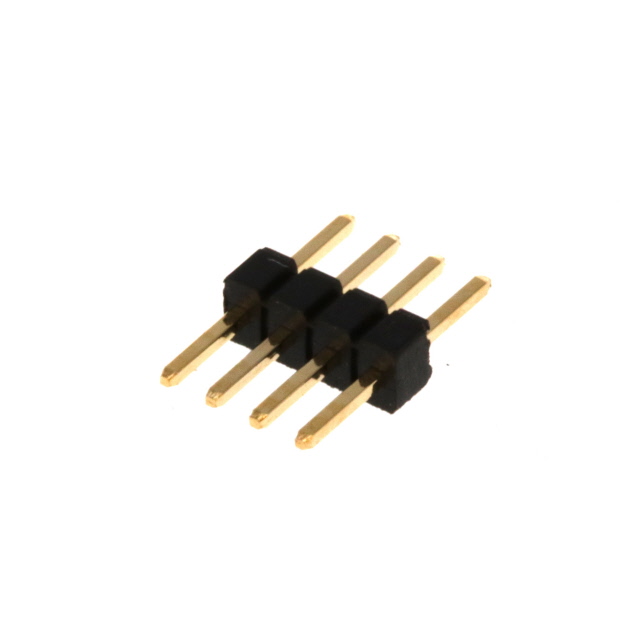

METZ CONNECT USA Inc. PR20B04VBNN	Gold	Black	7.3 mm	0.287 in	Polyethylene	0.11 in	2.79 mm	Unshrouded	Push-Pull	All	Flash	Male Pin	-40 C	105 ░C	3 mm	0.118 in	Solder	1.27 mm	0.05 in	Header			0.059 in	1.5 mm	4		Copper Zinc	Square	Through Hole	1
