MRAN2 Series

Catalog

ROTARY SWITCHES SWITCH TOGGLE

Part	Panel Cutout Dimensions [diameter]	Angle of Throw	Number of Decks [custom]	Contact Timing	Contact Material	Contact Finish	Number of Poles per Deck	Features	Current Rating (Amps)	Number of Positions [Min]	Number of Positions [Max]	Actuator Length [x]	Index Stops	Mounting Type	Actuator Type	Voltage Rating - AC	Depth Behind Panel [z]	Termination Style	Circuit per Deck

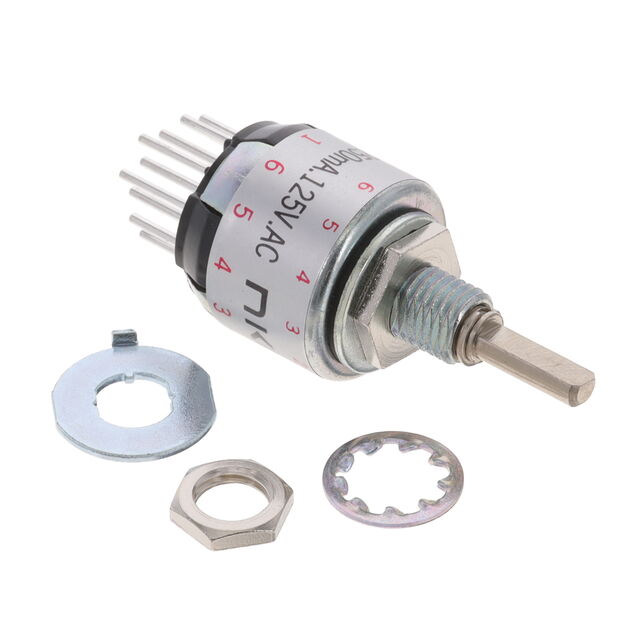

NKK Switches MRAN206-CA	0.25 in	30 °	1	Non-Shorting (BBM)	Copper	Silver	2	Process Sealed	250 mA	2	6	15.8 mm	Adjustable	Panel Mount Through Hole	Knob	125 V	17 mm	PC Pin	DP6T
NKK Switches MRAN206-BB	0.25 in	30 °	1	Non-Shorting (BBM)	Copper	Silver	2	Process Sealed	250 mA	2	6	14.3 mm	Adjustable	Panel Mount Through Hole	Knob	125 V	17 mm	PC Pin	DP6T
NKK Switches MRAN206-CC	0.25 in	30 °	1	Non-Shorting (BBM)	Copper	Silver	2	Process Sealed	250 mA	2	6	15.8 mm	Adjustable	Panel Mount Through Hole	Knob	125 V	17 mm	PC Pin	DP6T

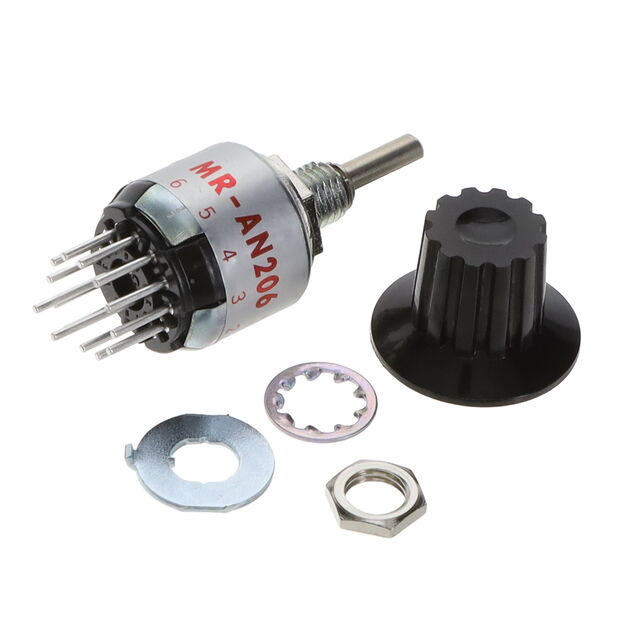

NKK Switches MRAN206-A	0.25 in	30 °	1	Non-Shorting (BBM)	Copper	Silver	2	Process Sealed	250 mA	2	6	13 mm	Adjustable	Panel Mount Through Hole	Knob	125 V	17 mm	PC Pin	DP6T
NKK Switches MRAN206-BC	0.25 in	30 °	1	Non-Shorting (BBM)	Copper	Silver	2	Process Sealed	250 mA	2	6	14.3 mm	Adjustable	Panel Mount Through Hole	Knob	125 V	17 mm	PC Pin	DP6T
NKK Switches MRAN206-BE	0.25 in	30 °	1	Non-Shorting (BBM)	Copper	Silver	2	Process Sealed	250 mA	2	6	14.3 mm	Adjustable	Panel Mount Through Hole	Knob	125 V	17 mm	PC Pin	DP6T

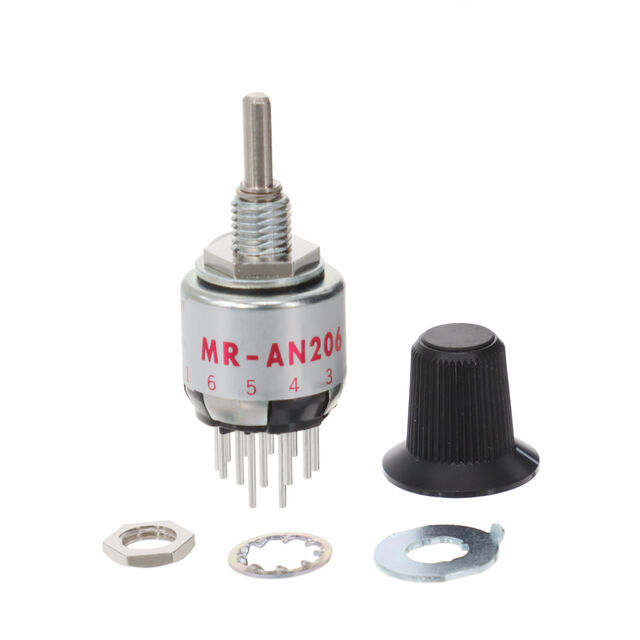

NKK Switches MRAN206-BA	0.25 in	30 °	1	Non-Shorting (BBM)	Copper	Silver	2	Process Sealed	250 mA	2	6	14.3 mm	Adjustable	Panel Mount Through Hole	Knob	125 V	17 mm	PC Pin	DP6T
NKK Switches MRAN206-BH	0.25 in	30 °	1	Non-Shorting (BBM)	Copper	Silver	2	Process Sealed	250 mA	2	6	14.3 mm	Adjustable	Panel Mount Through Hole	Knob	125 V	17 mm	PC Pin	DP6T
NKK Switches MRAN206-BG	0.25 in	30 °	1	Non-Shorting (BBM)	Copper	Silver	2	Process Sealed	250 mA	2	6	14.3 mm	Adjustable	Panel Mount Through Hole	Knob	125 V	17 mm	PC Pin	DP6T
NKK Switches MRAN206-CH	0.25 in	30 °	1	Non-Shorting (BBM)	Copper	Silver	2	Process Sealed	250 mA	2	6	15.8 mm	Adjustable	Panel Mount Through Hole	Knob	125 V	17 mm	PC Pin	DP6T
