MP-3030 Series

Catalog

LED MP3030120H WM WHT 3000K 1212

Part	Thermal Resistance of Package	Mounting Type	Current - Max [Max]	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Package / Case	Package / Case	CRI (Color Rendering Index)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Color	Flux @ 25°C, Current - Test	Current - Test	CCT (K)	Viewing Angle	Supplier Device Package	Height - Seated (Max) [Max] [z]
Luminus Devices Inc. MP-3030-120H-30-90	9 °C/W	Surface Mount	400 mA	184 lm/W	2.68 V	0.026 in	0.66 mm	3030 Metric	1212	90	3 mm	0.118 in	3 mm	0.118 "	Warm White	32 lm	65 mA	3000 K	120 °	1212
Luminus Devices Inc. MP-3030-1100-30-80	11 °C/W	Surface Mount	240 mA	138 lm/W	3 V	0.02 in		3030 Metric	1212	80	3 mm	0.118 in	3 mm	0.118 "	Warm White	62 lm	150 mA	3000 K	110 °	3030	0.52 mm
Luminus Devices Inc. MP-3030-120H-35-90	9 °C/W	Surface Mount	400 mA	184 lm/W	2.68 V	0.026 in	0.66 mm	3030 Metric	1212	90	3 mm	0.118 in	3 mm	0.118 "	Warm White	32 lm	65 mA	3500 K	120 °	1212

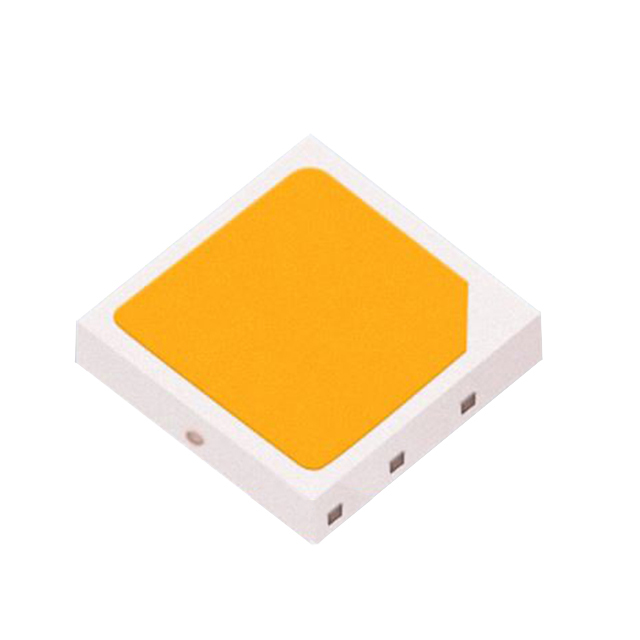

Luminus Devices Inc. MP-3030-21C2-30-90	23 °C/W	Surface Mount	120 mA	138 lm/W	5.3 V	0.028 "		3030 Metric	1212	90	3 mm	0.118 in	3 mm	0.118 "	Warm White	33 lm	45 mA	3000 K	120 °	3030	0.7 mm
Luminus Devices Inc. MP-3030-12ZH-40-80	9 °C/W	Surface Mount	400 mA	206 lm/W	2.69 V	0.028 "		3030 Metric	1212	80	3 mm	0.118 in	3 mm	0.118 "	Neutral White	36 lm	65 mA	4000 K	120 °	3030	0.7 mm

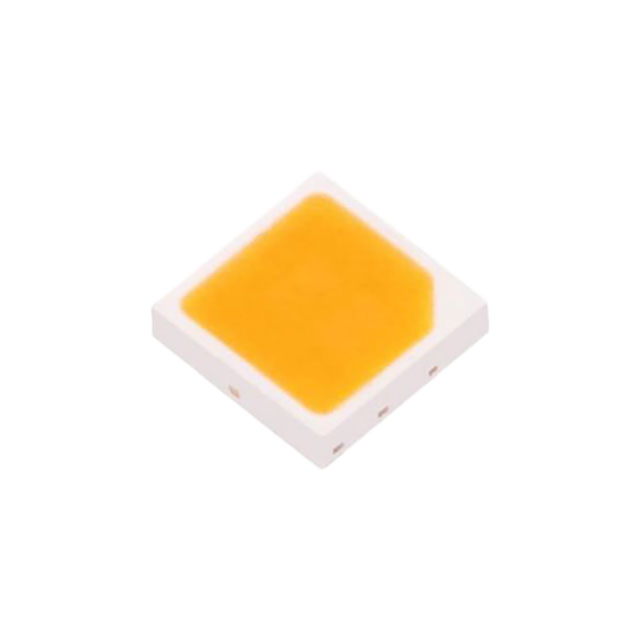

Luminus Devices Inc. MP-3030-120H-50-80	9 °C/W	Surface Mount	400 mA	230 lm/W	2.68 V	0.026 in	0.66 mm	3030 Metric	1212	80	3 mm	0.118 in	3 mm	0.118 "	Cool White	40 lm	65 mA	5000 K	120 °	1212
Luminus Devices Inc. MP-3030-210H-50-80	16 °C/W	Surface Mount	240 mA	164 lm/W	6 V	0.028 "		3030 Metric	1212	80	3 mm	0.118 in	3 mm	0.118 "	Cool White	148 lm	150 mA	5000 K	110 °	3030	0.7 mm
Luminus Devices Inc. MP-3030-2100-27-80	11 °C/W	Surface Mount	240 mA	130 lm/W	6.1 V	0.02 in		3030 Metric	1212	80	3 mm	0.118 in	3 mm	0.118 "	Warm White		150 mA	2700 K	110 °	3030	0.52 mm
Luminus Devices Inc. MP-3030-120H-40-80	9 °C/W	Surface Mount	400 mA	230 lm/W	2.68 V	0.026 in	0.66 mm	3030 Metric	1212	80	3 mm	0.118 in	3 mm	0.118 "	Neutral White	40 lm	65 mA	4000 K	120 °	1212
Luminus Devices Inc. MP-3030-120H-27-90	9 °C/W	Surface Mount	400 mA	178 lm/W	2.68 V	0.026 in	0.66 mm	3030 Metric	1212	90	3 mm	0.118 in	3 mm	0.118 "	Warm White	31 lm	65 mA	2700 K	120 °	1212
