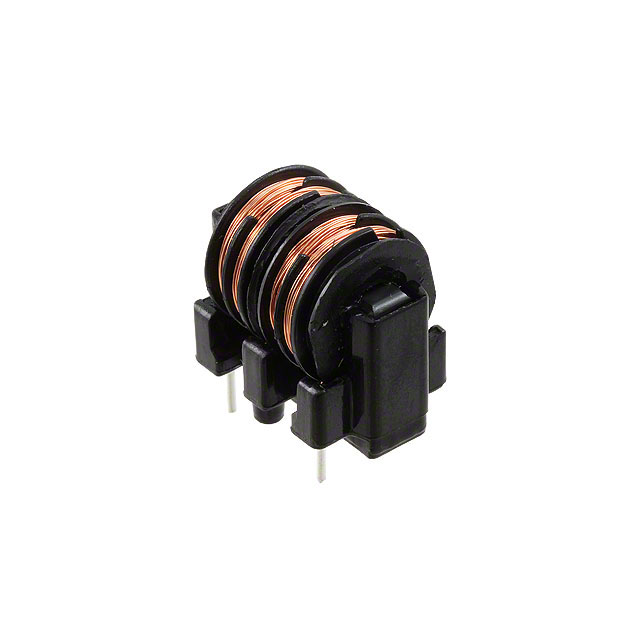

SS11VL Series

Manufacturer: KEMET

Catalog

CMC 3.6MH 1.7A 2LN TH

Part	Height (Max) [z]	Number of Lines	Mounting Type	Package / Case	Inductance @ Frequency	Voltage Rating - AC	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Filter Type	DC Resistance (DCR) (Max) [Max]	Current Rating (Max) [Max]	DC Resistance (DCR) (Max)
KEMET SS11VL-R17036	0.768 in 19.5 mm	2	Through Hole	Vertical 4 PC Pin	1 kHz 3.6 mH	250 V	22 mm	0.866 "	0.571 "	14.5 mm	120 °C	-25 °C	Power Line	190 mOhm
KEMET SS11VL-06180	0.768 in 19.5 mm	2	Through Hole	Vertical 4 PC Pin	18 mH	250 V	22 mm	0.866 "	0.571 "	14.5 mm	120 °C	-25 °C	Power Line	1.3 Ohm	600 mA
KEMET SS11VL-04350	0.768 in 19.5 mm	2	Through Hole	Vertical 4 PC Pin	35 mH	250 V	22 mm	0.866 "	0.571 "	14.5 mm	120 °C	-25 °C	Power Line	2.6 Ohm	400 mA
KEMET SS11VL-R07190	0.768 in 19.5 mm	2	Through Hole	Vertical 4 PC Pin	19 mH	250 V	22 mm	0.866 "	0.571 "	14.5 mm	120 °C	-25 °C	Power Line	900 mOhm	700 mA
KEMET SS11VL-R04520	0.768 in 19.5 mm	2	Through Hole	Vertical 4 PC Pin	1 kHz 52 mH	250 V	22 mm	0.866 "	0.571 "	14.5 mm	120 °C	-25 °C	Power Line	2.6 Ohm	400 mA
KEMET SS11VL-R11076	0.768 in 19.5 mm	2	Through Hole	Vertical 4 PC Pin	7.6 mH	250 V	22 mm	0.866 "	0.571 "	14.5 mm	120 °C	-25 °C	Power Line	400 mOhm	1.1 A
KEMET SS11VL-07120	0.768 in 19.5 mm	2	Through Hole	Vertical 4 PC Pin	12 mH	250 V	22 mm	0.866 "	0.571 "	14.5 mm	120 °C	-25 °C	Power Line	900 mOhm	700 mA
KEMET SS11VL-R13052	0.768 in 19.5 mm	2	Through Hole	Vertical 4 PC Pin	5.2 mH	250 V	22 mm	0.866 "	0.571 "	14.5 mm	120 °C	-25 °C	Power Line	280 mOhm	1.3 A
KEMET SS11VL-R08125	0.768 in 19.5 mm	2	Through Hole	Vertical 4 PC Pin	1 kHz 12.5 mH	250 V	22 mm	0.866 "	0.571 "	14.5 mm	120 °C	-25 °C	Power Line		800 mA	740 mOhm
KEMET SS11VL-R03820	0.768 in 19.5 mm	2	Through Hole	Vertical 4 PC Pin	82 mH	250 V	22 mm	0.866 "	0.571 "	14.5 mm	120 °C	-25 °C	Power Line	4.1 Ohm	300 mA
