SFSA240 Series

Manufacturer: SWISSBIT

Catalog

SSD, EXTERNAL, 2.5 INCH, SATA 6 GB/S (SATA III), 240 GB, MLC NAND, NON-ENCRYPTED

Part	Speed - Write	Operating Temperature [Max]	Operating Temperature [Min]	Memory Type	Voltage - Supply	Speed - Read	Type	Current - Max [Max]	Memory Size	Form Factor	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Form Factor
SWISSBIT SFSA240GQ1AA4TO-I-HC-226-STD	460 MB/s	85 °C	-40 C	Solid State Drive (SSD) FLASH - NAND (MLC)	3.3 V 5 VDC	525 MB/s	SATA III	615 mA	240 GB	2.5 "
SWISSBIT SFSA240GM3AA4TO-C-OC-62P-STD	450 MB/s	70 °C	0 °C	Solid State Drive (SSD) FLASH - NAND (pSLC)	3.3 V	520 MB/s	SATA III	610 mA	240 GB		3.6 mm	80 mm	22 mm	M.2 Module
SWISSBIT SFSA240GM3AA2TO-C-OC-226-STD	450 MB/s	70 °C	0 °C	Solid State Drive (SSD) FLASH - NAND (MLC)	3.3 V	520 MB/s	SATA III	960 mA	240 GB		3.6 mm	80 mm	22 mm	M.2 Module
SWISSBIT SFSA240GV2AK4TO-I-6B-236-STD	285 MB/s	85 °C	-40 C	Solid State Drive (SSD) FLASH - NAND (TLC)		565 MB/s	SATA III		240 GB		4 mm	54 mm	39 mm	Slim-SATA
SWISSBIT SFSA240GM3AA2TO-I-OC-226-STD	450 MB/s	85 °C	-40 C	Solid State Drive (SSD) FLASH - NAND (MLC)	3.3 V	520 MB/s	SATA III	960 mA	240 GB		3.6 mm	80 mm	22 mm	M.2 Module
SWISSBIT SFSA240GV2AK4TO-I-6B-226-STD	285 MB/s	85 °C	-40 C	Solid State Drive (SSD) FLASH - NAND (TLC)		565 MB/s	SATA III		240 GB		4 mm	54 mm	39 mm	Slim-SATA

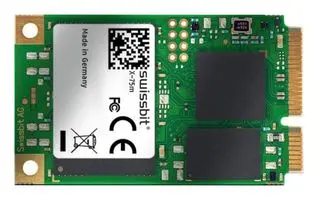

SWISSBIT SFSA240GU2AK4TO-I-6B-236-STD	285 MB/s	85 °C	-40 C	Solid State Drive (SSD) FLASH - NAND (TLC)	3.3 V	565 MB/s	SATA III		240 GB		3.8 mm	2 in	29.85 mm	mSATA
SWISSBIT SFSA240GV3AA4TO-C-HC-226-STD	450 MB/s	70 °C	0 °C	Solid State Drive (SSD) FLASH - NAND (MLC)		520 MB/s	SATA III	750 mA	240 GB		4 mm	54 mm	39 mm	Slim-SATA
SWISSBIT SFSA240GV3AA4TO-I-OC-22P-STD	450 MB/s	85 °C	-40 C	Solid State Drive (SSD) FLASH - NAND (pSLC)		520 MB/s	SATA III	630 mA	240 GB		4 mm	54 mm	39 mm	Slim-SATA
SWISSBIT SFSA240GU2AK4TO-I-6B-226-STD	285 MB/s	85 °C	-40 C	Solid State Drive (SSD) FLASH - NAND (TLC)	3.3 V	565 MB/s	SATA III		240 GB		3.3 mm	2 in	29.85 mm	mSATA
