6318 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

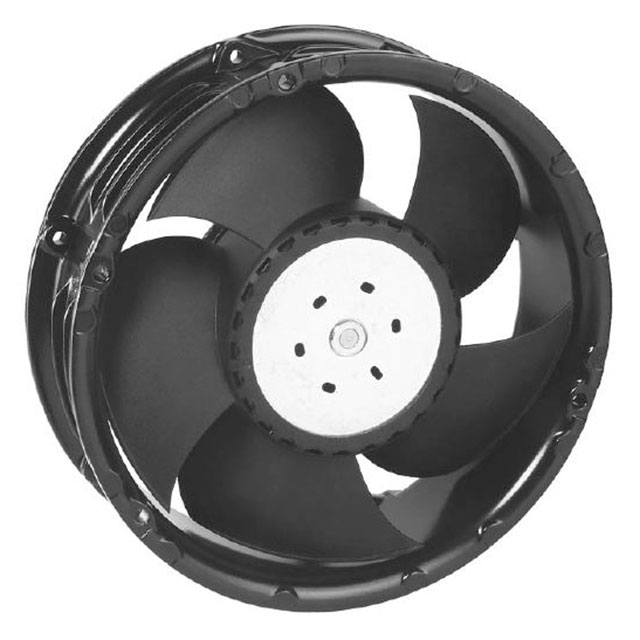

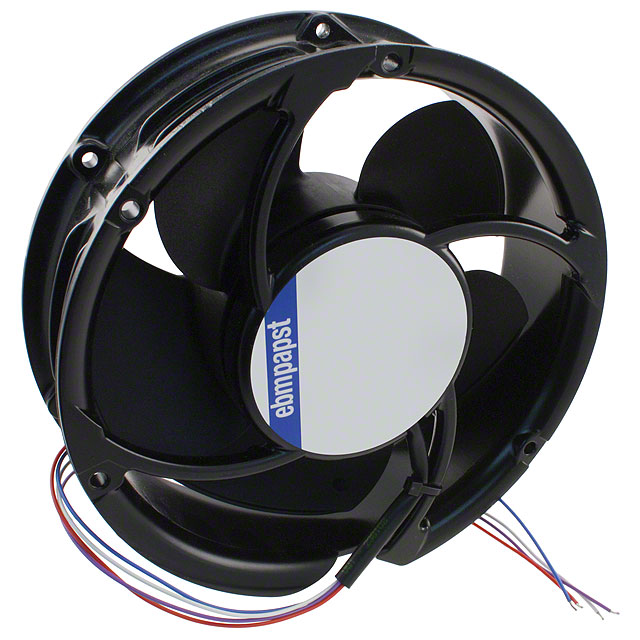

FAN AXIAL 172X50.8MM 48VDC WIRE
| Part | Lifetime @ Temp. | Material - Frame | Voltage Range [Max] | Voltage Range [Min] | Material - Blade | Noise | Size / Dimension [diameter] | Size / Dimension | Voltage - Rated | Operating Temperature | Operating Temperature [Min] | Operating Temperature [Max] | Power (Watts) | Air Flow | Air Flow | Bearing Type | Features | Weight | Weight | Width [y] | Approval Agency | Termination | Fan Type | RPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | 52500 Hrs | Aluminum | 72 VDC | 36 VDC | Polyamide (PA) Nylon Fiberglass Reinforced | 75 dB(A) | 172 mm | Round | 48 VDC | (-20 ~ 65°C) | -20 ░C | 65 °C | 150 W | 559.1 CFM | 15.65 m³/min | Ball | PWM Control Speed Sensor (Tach) | 907.2 g | 2 lbs | 50.8 mm | CSA UL VDE | 4 Wire Leads | Tubeaxial | 9200 RPM |
 ebm-papst Inc. | 62500 Hrs | Aluminum | 72 VDC | 36 VDC | Polyamide (PA) Nylon Fiberglass Reinforced | 172 mm | Round | 48 VDC | -20 ░C | 70 °C | 67 W | Ball | PWM Control Speed Sensor (Tach) | 907.2 g | 2 lbs | 50.8 mm | 4 Wire Leads | Tubeaxial | 7000 RPM |
