BC Series

Catalog

FIXED TERMINAL BLOCKS BC-508X14- 3 BK

Part	Screw Thread	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Torque - Screw [Max]	Voltage	Number of Levels	Mounting Type	Current	Mating Orientation	Pitch	Pitch	Color	Wire Termination	Wire Gauge [Max]	Wire Gauge [Min]	Features	Positions Per Level	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	For Use With/Related Products	Material
Phoenix Contact 5452262	M3	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	300 VDC	1	Through Hole	15 A	Horizontal with Board	5.08 mm	0.2 in	Black	Screw	30 AWG	14 AWG	Interlocking (Side)	3

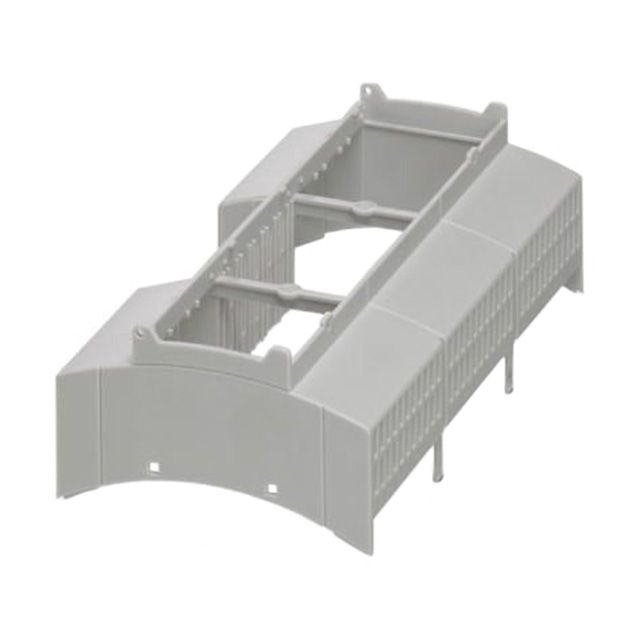

Phoenix Contact 2201451													Gray						6.362 in	2.154 in	54.7 mm	89.7 mm	161.6 mm	3.531 "	BC 161.6 Housing System	Plastic Polycarbonate
Phoenix Contact 5442866						300 VDC	1	Through Hole	10 A	Horizontal with Board	3.81 mm	0.15 in	Green	Screw	30 AWG	16 AWG		14

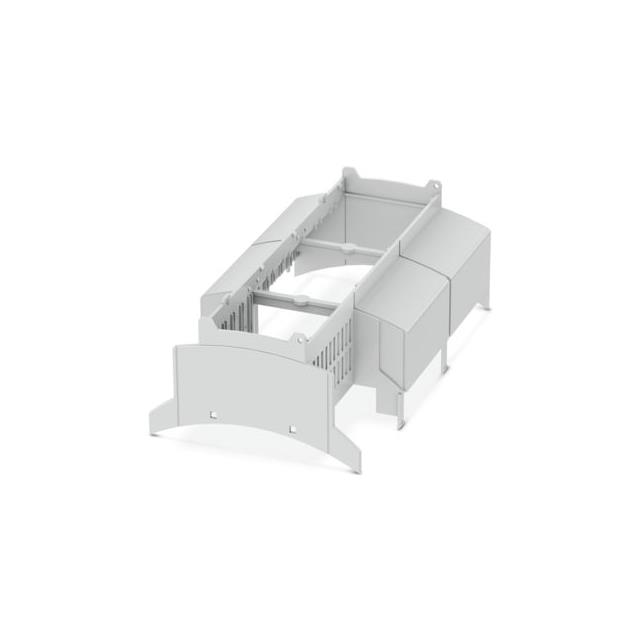

Phoenix Contact 2201455													Gray									89.7 mm		3.531 "	BC 161.6 Housing System	Plastic Polyamide
Phoenix Contact 5442206						300 VDC	1	Through Hole	10 A	Horizontal with Board	5.08 mm	0.2 in	Green	Screw	30 AWG	14 AWG		2
Phoenix Contact 5430360						300 VDC	1	Through Hole	10 A	Horizontal with Board	5.08 mm	0.2 in	Gray	Screw	30 AWG	14 AWG	Interlocking (Side)	2

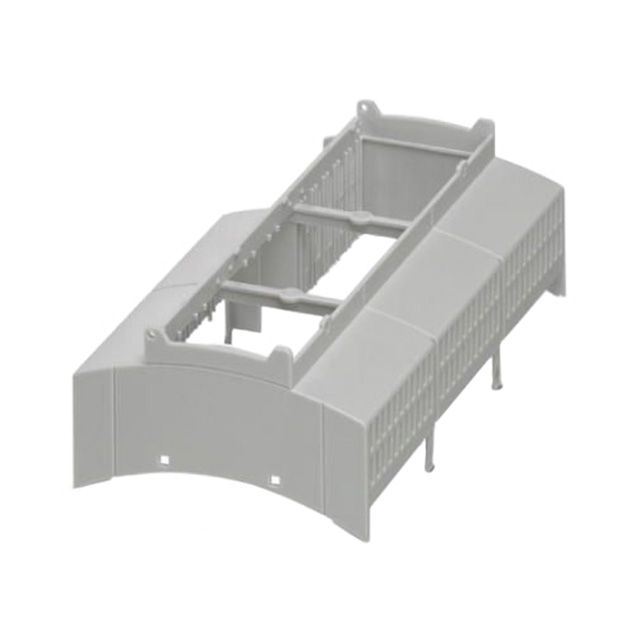

Phoenix Contact 2201450													Gray						6.362 in	2.154 in	54.7 mm	89.7 mm	161.6 mm	3.531 "	BC 161.6 Housing System	Plastic Non Specified
Phoenix Contact 5452605	M2	0.25 Nm	1.9 Lb-In	0.22 Nm	2.2 Lb-In	300 VDC	1	Through Hole	10 A	Horizontal with Board	3.5 mm	0.138 "	Black	Screw	30 AWG	16 AWG		5
