338069 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN RCPT 8POS 0.1 TIN SMD

Part	Mounting Type	Number of Positions Loaded	Contact Material	Voltage Rating	Insulation Height	Insulation Height	Connector Type	Style	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Features	Insulation Material	Pitch - Mating	Pitch - Mating	Fastening Type	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Number of Rows	Number of Positions	Contact Type	Termination

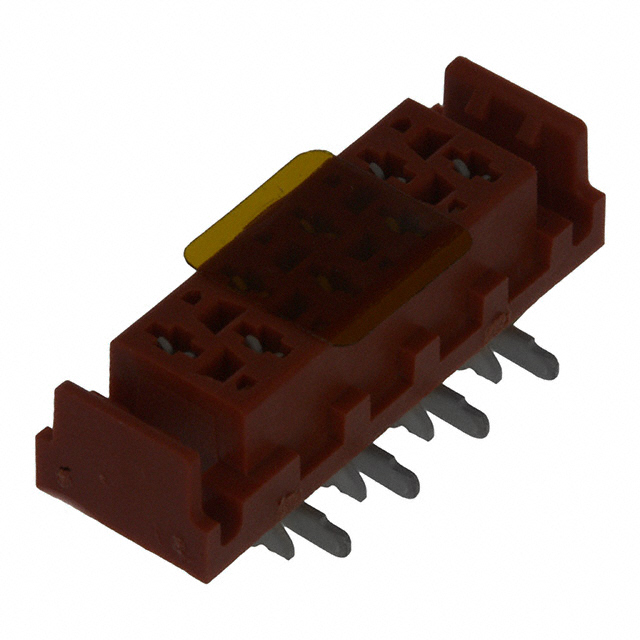

TE Connectivity Raychem Cable Protection 7-338069-8	Surface Mount	All	Phosphor Bronze	100 V	5.3 mm	0.209 "	Receptacle	Board to Board Cable	UL94 V-0	-40 °C	105 ░C	Automotive General Purpose	Pick and Place	Glass Filled Nylon 4/6 Polyamide (PA46)	0.1 in	2.54 mm	Friction Lock	Red	2.54 mm	0.1 in	Tin	2	8	Forked	Solder

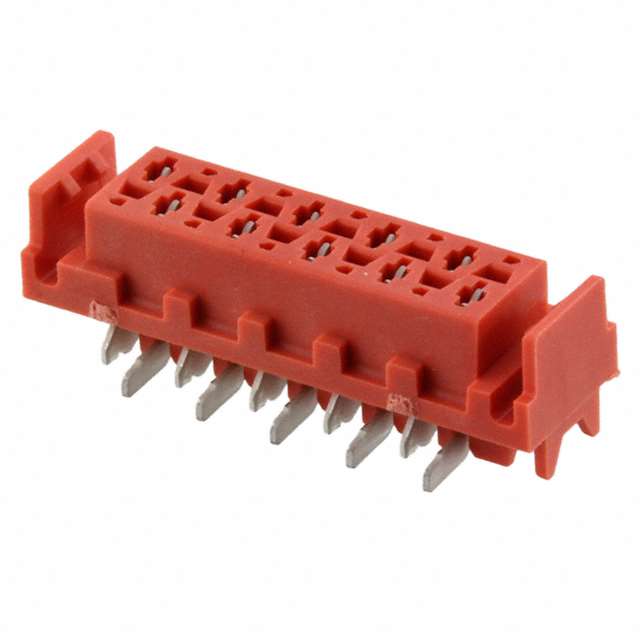

TE Connectivity Raychem Cable Protection 1-338069-0	Surface Mount	All	Phosphor Bronze	100 V	5.3 mm	0.209 "	Receptacle	Board to Board Cable	UL94 V-0	-40 °C	105 ░C	Automotive General Purpose		Glass Filled Nylon 4/6 Polyamide (PA46)	0.1 in	2.54 mm	Friction Lock	Red	2.54 mm	0.1 in	Tin	2	10	Forked	Solder

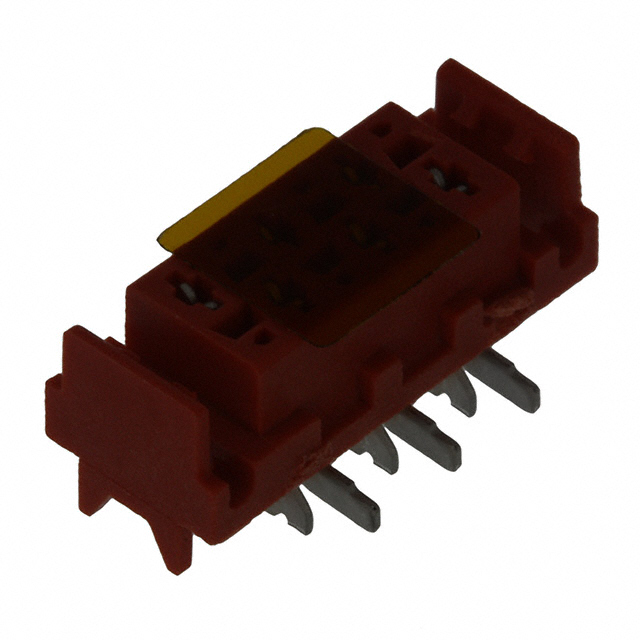

TE Connectivity Raychem Cable Protection 7-338069-6	Surface Mount	All	Phosphor Bronze	100 V	5.3 mm	0.209 "	Receptacle	Board to Board Cable	UL94 V-0	-40 °C	105 ░C	Automotive General Purpose	Pick and Place	Glass Filled Nylon 4/6 Polyamide (PA46)	0.1 in	2.54 mm	Friction Lock	Red	2.54 mm	0.1 in	Tin	2	6	Forked	Solder

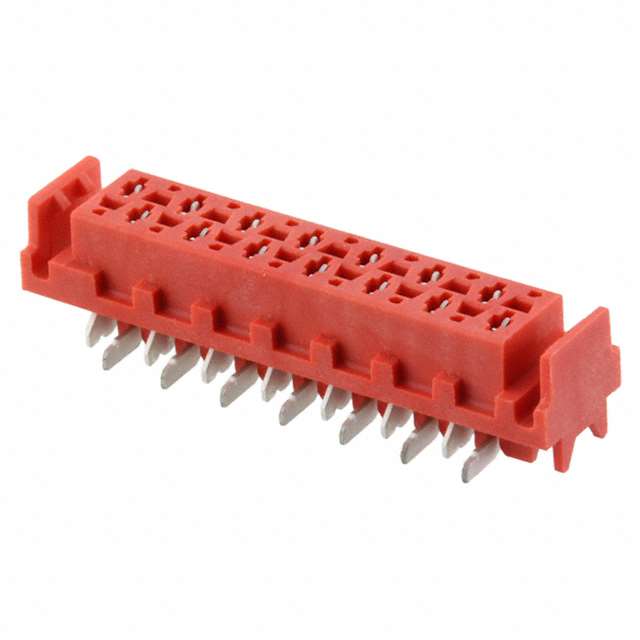

TE Connectivity Raychem Cable Protection 1-338069-4	Surface Mount	All	Phosphor Bronze	100 V	5.3 mm	0.209 "	Receptacle	Board to Board Cable	UL94 V-0	-40 °C	105 ░C	Automotive General Purpose		Glass Filled Nylon 4/6 Polyamide (PA46)	0.1 in	2.54 mm	Friction Lock	Red	2.54 mm	0.1 in	Tin	2	14	Forked	Solder

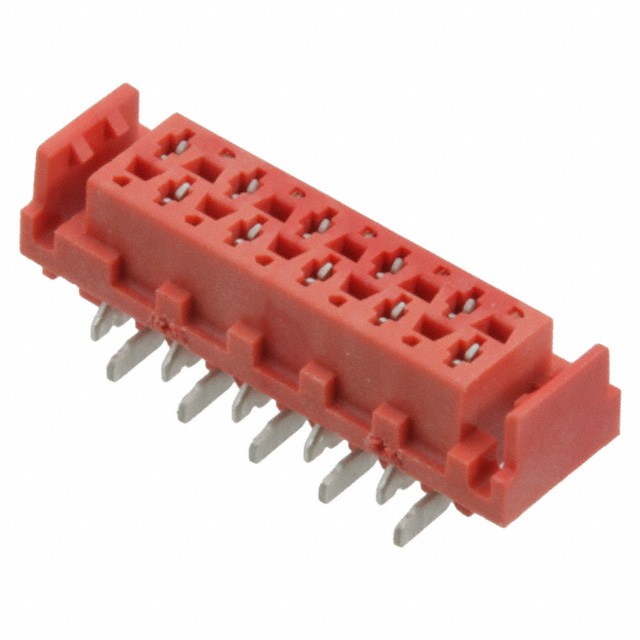

TE Connectivity Raychem Cable Protection 8-338069-0	Surface Mount	All	Phosphor Bronze	100 V	5.3 mm	0.209 "	Receptacle	Board to Board Cable	UL94 V-0	-40 °C	105 ░C	Automotive General Purpose	Pick and Place	Glass Filled Nylon 4/6 Polyamide (PA46)	0.1 in	2.54 mm	Friction Lock	Red	2.54 mm	0.1 in	Tin	2	10	Forked	Solder

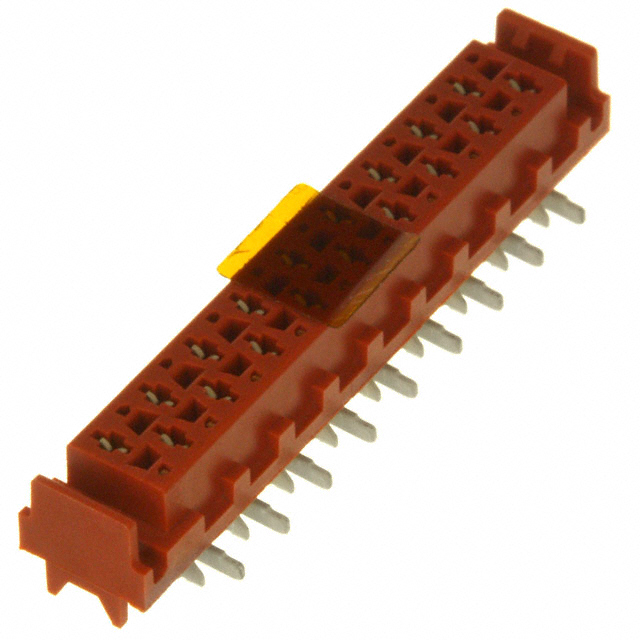

TE Connectivity Raychem Cable Protection 8-338069-8	Surface Mount	All	Phosphor Bronze	100 V	5.3 mm	0.209 "	Receptacle	Board to Board Cable	UL94 V-0	-40 °C	105 ░C	Automotive General Purpose	Pick and Place	Glass Filled Nylon 4/6 Polyamide (PA46)	0.1 in	2.54 mm	Friction Lock	Red	2.54 mm	0.1 in	Tin	2	18	Forked	Solder

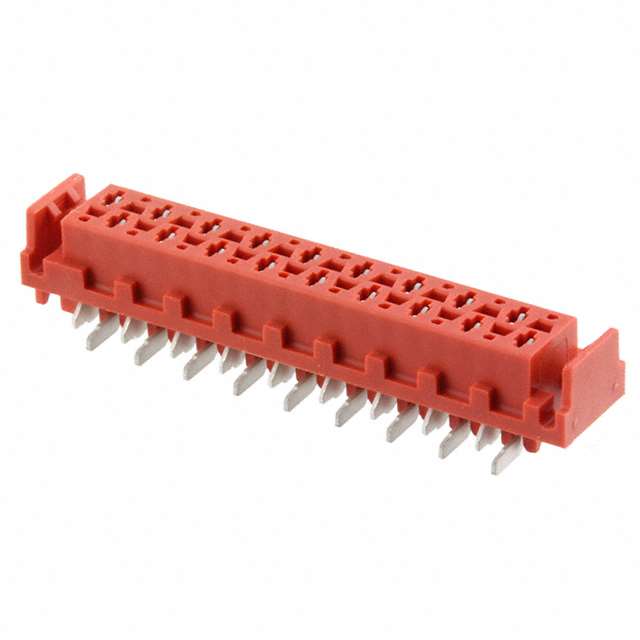

TE Connectivity Raychem Cable Protection 1-338069-8	Surface Mount	All	Phosphor Bronze	100 V	5.3 mm	0.209 "	Receptacle	Board to Board Cable	UL94 V-0	-40 °C	105 ░C	Automotive General Purpose		Glass Filled Nylon 4/6 Polyamide (PA46)	0.1 in	2.54 mm	Friction Lock	Red	2.54 mm	0.1 in	Tin	2	18	Forked	Solder
