LS085R Series

Manufacturer: E-Switch

Catalog

BASIC / SNAP ACTION SWITCHES 15A 125VAC SPDT .187 QUICK CONNECT

Part	Mechanical Life	Operating Position	Operating Position	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Voltage Rating - DC	Switch Function	Voltage Rating - AC	Actuator Type	Pretravel	Pretravel	Mounting Type	Electrical Life	Termination Style	Release Force	Operating Force

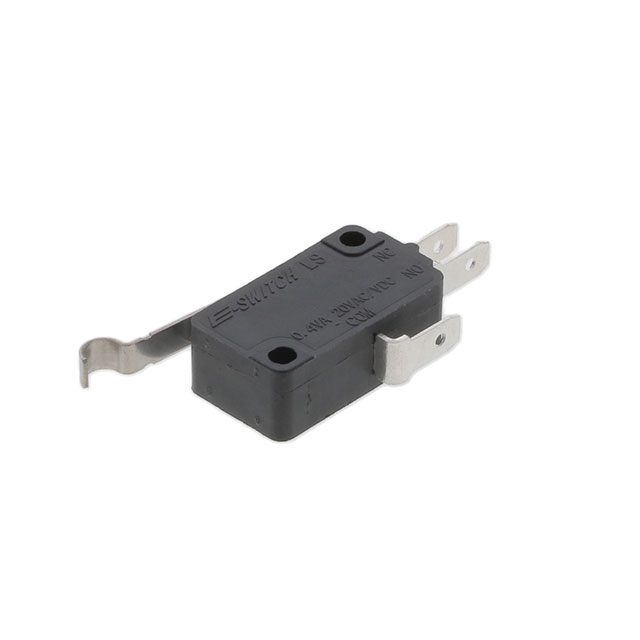

E-Switch LS085R104F050C1A	1000000 Cycles	0.748 in	19 mm	SPDT	85 °C	-25 °C	0.4 VA	20 V	On-Mom	20 V	Lever Simulated Roller	5.2 mm	0.205 in	Chassis Mount	50000 Cycles	Quick Connect	20 gf	50 gf
E-Switch LS085R105F160V1A	1000000 Cycles	0.815 in	20.7 mm	SPDT	85 °C	-25 °C	0.4 VA	20 V	On-Mom	20 V	Lever Roller	2.7 mm	0.106 in	Right Angle Through Hole	50000 Cycles	PC Pin		160 gf
E-Switch LS085R104F050V2B	1000000 Cycles	0.748 in	19 mm	SPST-NC	85 °C	-25 °C	0.4 VA	20 V	On-Mom	20 V	Lever Simulated Roller	5.2 mm	0.205 in	Right Angle Through Hole	50000 Cycles	PC Pin	20 gf	50 gf

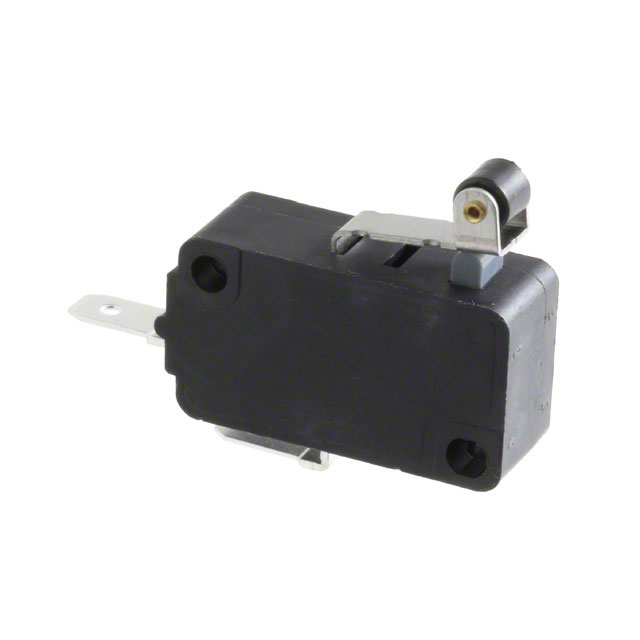

E-Switch LS085R105F250C1C	1000000 Cycles	0.815 in	20.7 mm	SPST-NO	85 °C	-25 °C	0.4 VA	20 V	Off-Mom	20 V	Lever Roller	2.7 mm	0.106 in	Chassis Mount	50000 Cycles	Quick Connect	50 gf	0.25 kgf
E-Switch LS085R101F160V1A	1000000 Cycles	0.602 in	15.3 mm	SPDT	85 °C	-25 °C	0.4 VA	20 V	On-Mom	20 V	Lever Straight	2 mm	0.08 in	Right Angle Through Hole	50000 Cycles	PC Pin		160 gf

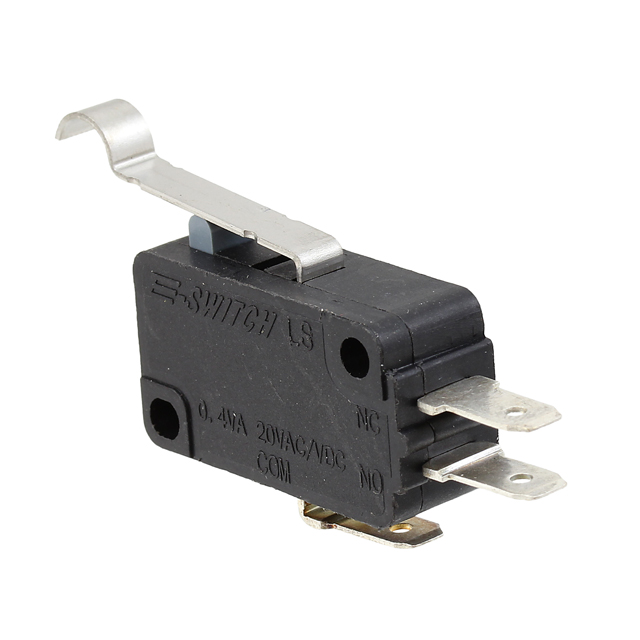

E-Switch LS085R104F085C1A	1000000 Cycles	0.748 in	19 mm	SPDT	85 °C	-25 °C	0.4 VA	20 V	On-Mom	20 V	Lever Simulated Roller	5.2 mm	0.205 in	Chassis Mount	50000 Cycles	Quick Connect	30 gf	85 gf
E-Switch LS085R105F100S1A	1000000 Cycles	0.815 in	20.7 mm	SPDT	85 °C	-25 °C	0.4 VA	20 V	On-Mom	20 V	Lever Roller	2.7 mm	0.106 in	Chassis Mount	50000 Cycles	Solder Lug	30 gf	100 gf
E-Switch LS085R100F250C1C	1000000 Cycles	0.579 in	14.7 mm	SPST-NO	85 °C	-25 °C	0.4 VA	20 V	Off-Mom	20 V	Round (Pin Plunger)	2 mm	0.08 in	Chassis Mount	50000 Cycles	Quick Connect	50 gf	0.25 kgf
E-Switch LS085R102F120C1C	1000000 Cycles	0.61 in	15.5 mm	SPST-NO	85 °C	-25 °C	0.4 VA	20 V	Off-Mom	20 V	Lever Straight	4.1 mm	0.161 in	Chassis Mount	50000 Cycles	Quick Connect		120 gf
E-Switch LS085R102F075C1A	1000000 Cycles	0.61 in	15.5 mm	SPDT	85 °C	-25 °C	0.4 VA	20 V	On-Mom	20 V	Lever Straight	4.1 mm	0.161 in	Chassis Mount	50000 Cycles	Quick Connect	25 gf	75 gf
