RJE1R288 Series

Catalog

8P8C, CAT6, 2X1 STACKED, SHIELD,

Part	Contact Finish Thickness	Contact Finish Thickness	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	LED Color	Orientation	Termination	Contact Material	Mounting Type	Number of Rows [custom]	Ratings	Contact Finish	Shielding	Connector Type	Tab Direction	Number of Positions/Contacts	Number of Ports

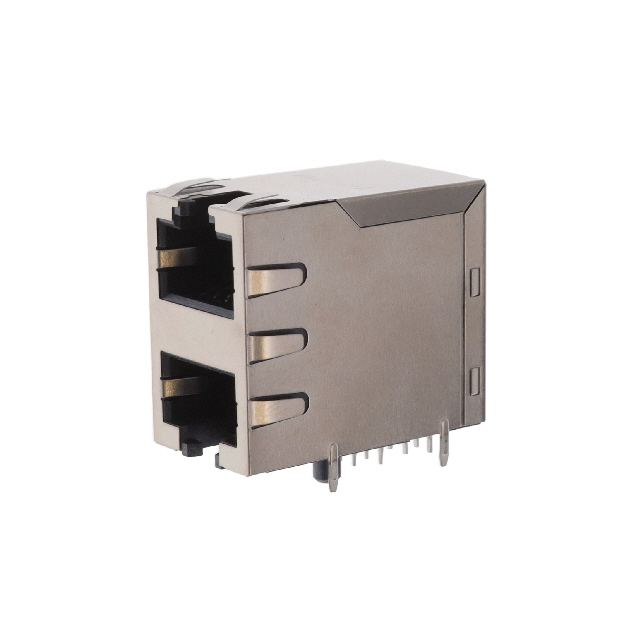

Amphenol ICC (Commercial Products) RJE1R288335403	50 µin	1.27 µm	Thermoplastic	85 °C	-40 C	Does Not Contain LED	90 °	Solder	Phosphor Bronze	Through Hole	2	Cat6	Gold	EMI Finger Shielded	Jack	Up and Down	8p8c (RJ45 Ethernet)	2
Amphenol ICC (Commercial Products) RJE1R288335413	50 µin	1.27 µm	Thermoplastic	85 °C	-40 C	Yellow - Green	90 °	Solder	Phosphor Bronze	Through Hole	2	Cat6	Gold	EMI Finger Shielded	Jack	Up and Down	8p8c (RJ45 Ethernet)	2
Amphenol ICC (Commercial Products) RJE1R288225403	50 µin	1.27 µm	Thermoplastic	85 °C	-40 C	Does Not Contain LED	90 °	Solder	Phosphor Bronze	Through Hole	2	Cat5e	Gold	EMI Finger Shielded	Jack	Up and Down	8p8c (RJ45 Ethernet)	2
Amphenol ICC (Commercial Products) RJE1R288325413	50 µin	1.27 µm	Thermoplastic	85 °C	-40 C	Yellow - Green	90 °	Solder	Phosphor Bronze	Through Hole	2	Cat5e Cat6	Gold	EMI Finger Shielded	Jack	Up and Down	8p8c (RJ45 Ethernet)	2

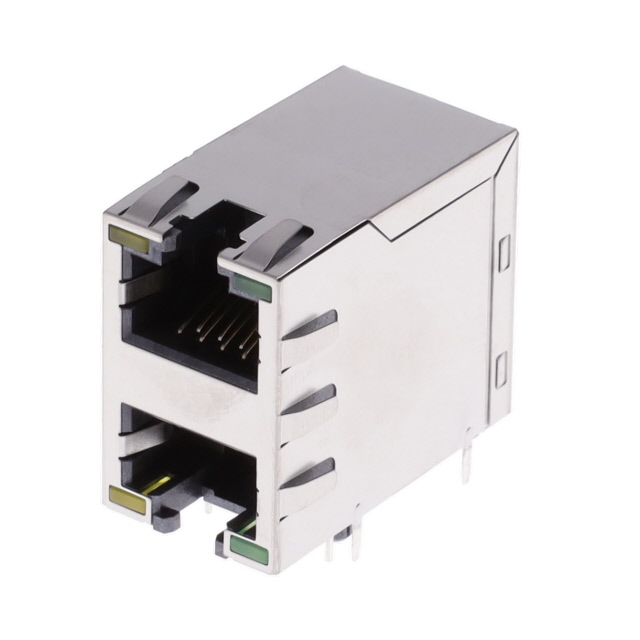

Amphenol ICC (Commercial Products) RJE1R288225413	50 µin	1.27 µm	Thermoplastic	85 °C	-40 C	Yellow - Green	90 °	Solder	Phosphor Bronze	Through Hole	2	Cat5e	Gold	EMI Finger Shielded	Jack	Up and Down	8p8c (RJ45 Ethernet)	2
