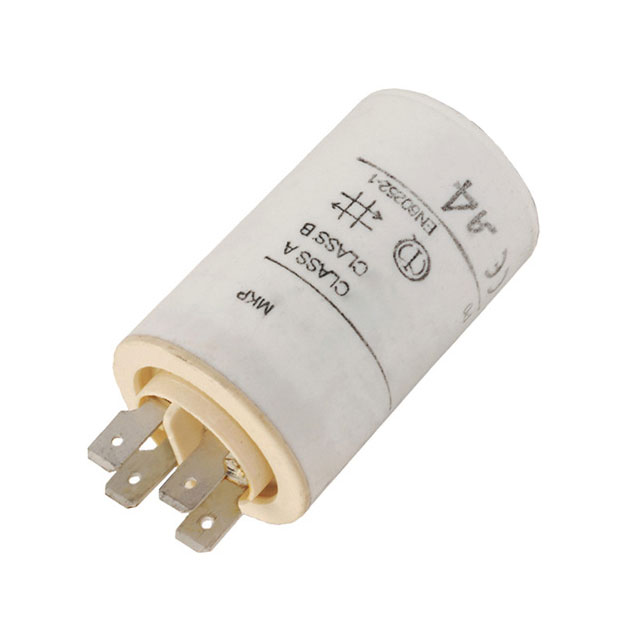

C274AA Series
Manufacturer: KEMET
Beta
⌘K

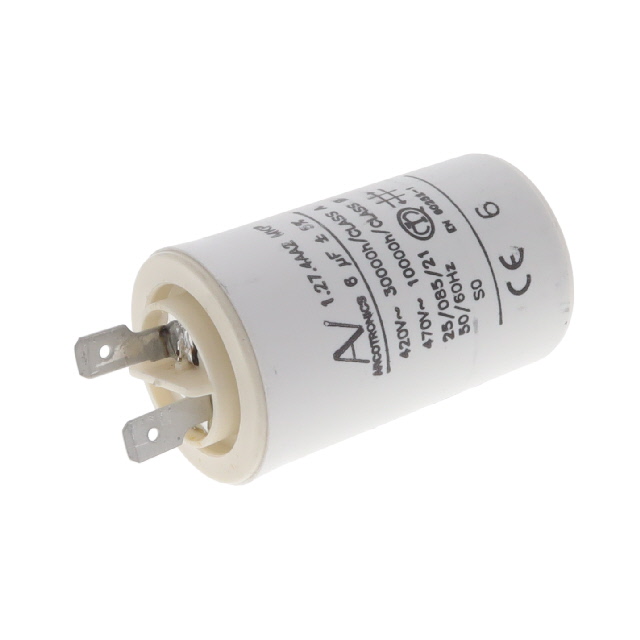

CAP FILM 5UF 5% 470VAC RADIAL
| Part | Capacitance | Termination | Termination | Termination | Applications | Dielectric Material | Tolerance | Size / Dimension | Size / Dimension [diameter] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) | Voltage Rating - AC | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Lead Spacing | Lead Spacing | Mounting Type | Size / Dimension [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 5 µF | 6.3 mm | Quick Connect | 0.25 " | Motor Run | Polypropylene (PP) Metallized | 5 % | 30 mm | 1.181 " | 2.303 in | 58.5 mm | 470 V | 85 °C | -25 °C | Can Radial | 0.394 in | 10 mm | Chassis Stud Mount | |
 KEMET | 6 µF | 6.3 mm | Quick Connect | 0.25 " | Motor Run | Polypropylene (PP) Metallized | 5 % | 1.378 " | 2.303 in | 58.5 mm | 470 V | 85 °C | -25 °C | Can Radial | 0.394 in | 10 mm | Chassis Stud Mount | 35 mm | |
 KEMET | 8 µF | 6.3 mm | Quick Connect | 0.25 " | Motor Run | Polypropylene (PP) Metallized | 5 % | 1.378 " | 2.303 in | 58.5 mm | 470 V | 85 °C | -25 °C | Can Radial | 0.394 in | 10 mm | Chassis Stud Mount | 35 mm |
