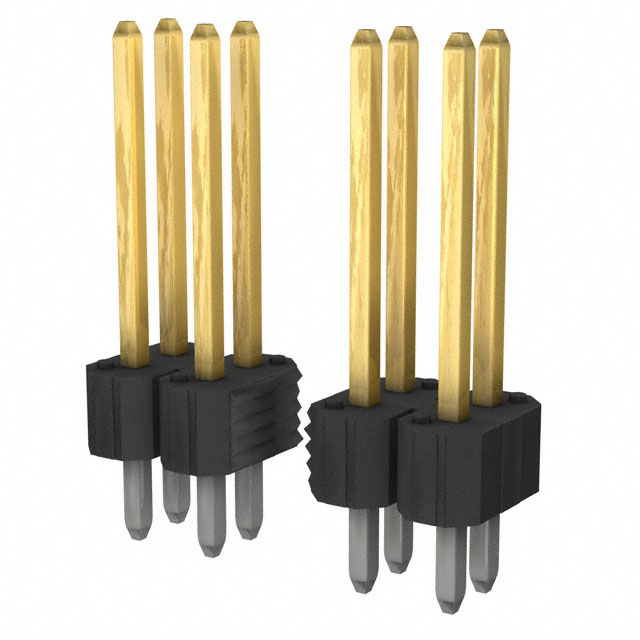

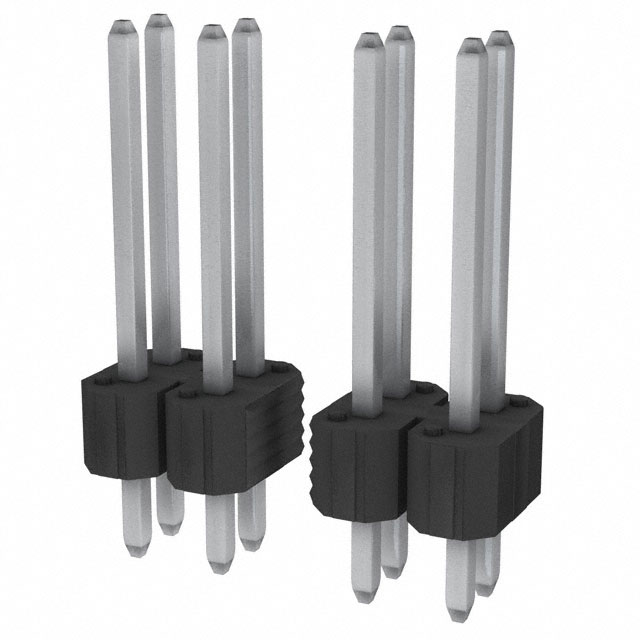

68738 Series

Catalog

CONN HEADER VERT 72POS 2.54MM

Part	Number of Positions Loaded	Contact Material	Fastening Type	Termination	Connector Type	Overall Contact Length	Overall Contact Length	Insulation Color	Shrouding	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Number of Rows	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Contact Type	Mounting Type	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating
Amphenol ICC (FCI) 68738-472HLF	All	Phosphor Bronze	Push-Pull	Solder	Header	0.615 in	15.62 mm	Black	Unshrouded	Tin	0.1 in	2.54 mm	2.54 mm	0.1 in	Square	2	10.16 mm	0.4 in	0.1 in	2.54 mm	2.92 mm	0.115 in	UL94 V-0	Male Pin	Through Hole	72	2.54 çm	100 çin
Amphenol ICC (FCI) 68738-172	All	Phosphor Bronze	Push-Pull	Solder	Header	0.615 in	15.62 mm	Black	Unshrouded		0.1 in	2.54 mm	2.54 mm	0.1 in	Square	2	10.16 mm	0.4 in	0.1 in	2.54 mm	2.92 mm	0.115 in	UL94 V-0	Male Pin	Through Hole	72	0.76 Ám	30 Áin	Gold or Gold GXT™
Amphenol ICC (FCI) 68738-272H	All	Phosphor Bronze	Push-Pull	Solder	Header	0.615 in	15.62 mm	Black	Unshrouded		0.1 in	2.54 mm	2.54 mm	0.1 in	Square	2	10.16 mm	0.4 in	0.1 in	2.54 mm	2.92 mm	0.115 in	UL94 V-0	Male Pin	Through Hole	72	0.38 µm	15 µin	Gold or Gold GXT™
