EN2C7F Series

Standard Circular Connector 2#20 CORD MOUNT CONN

Manufacturer: Switchcraft Inc.

Catalog

Standard Circular Connector 2#20 CORD MOUNT CONN

Catalog

Standard Circular Connector 2#20 CORD MOUNT CONN

Part	Material Flammability Rating	Connector Type	Termination	Insert Material	Ingress Protection	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Color	Contact Finish - Mating	Features	Primary Material	Fastening Type	Contact Material	Orientation	Backshell Material, Plating	Shielding	Mounting Type	Applications	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Number of Positions	Cable Opening [custom]	Cable Opening [custom]	Mounting Feature	Current Rating (Amps)

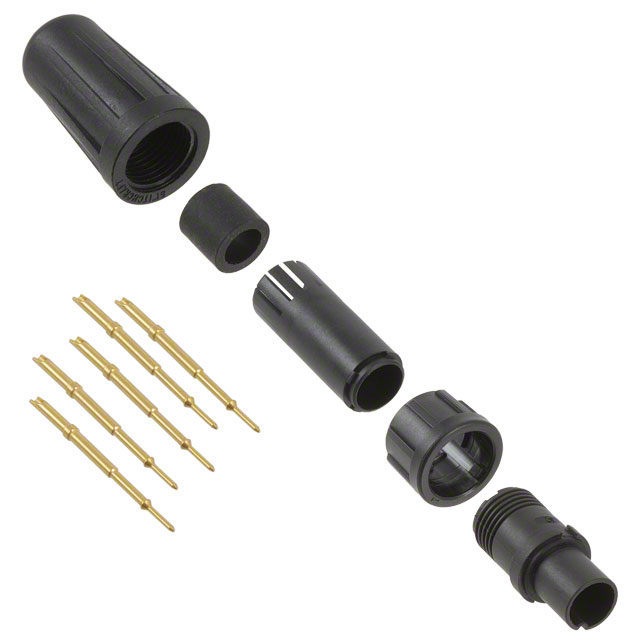

Switchcraft Inc. EN2C5M26G2	UL94 V-0	Male Pins Plug	Crimp Solder Cup	Elastomer	IP66 IP67 IP68	4.57 mm	3.56 mm	0.14 in	0.18 in	85 °C	-40 °C	125 VAC	Black	Gold	Backshell Coupling Nut	Plastic	Bayonet Lock	Copper Alloy	Keyed	Thermoplastic	Unshielded	Free Hanging (In-Line)	Communication Systems Industrial Marine Medical

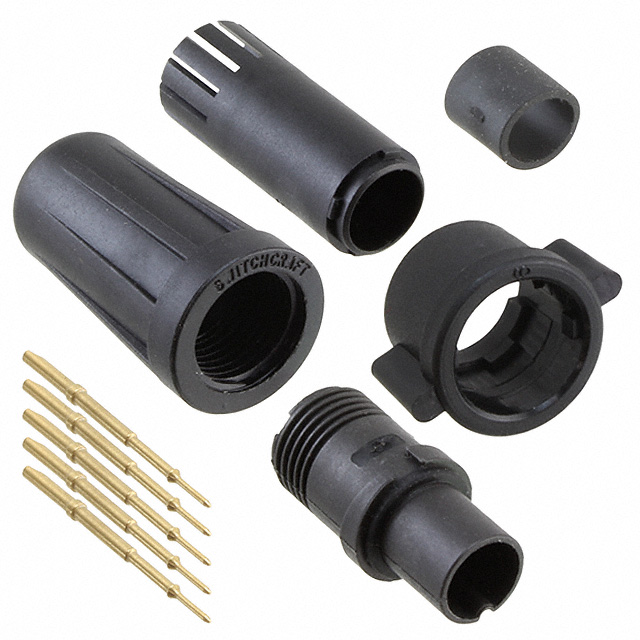

Switchcraft Inc. EN2C5M26G3W	UL94 V-0	Male Pins Plug	Crimp Solder Cup	Elastomer	IP66 IP67 IP68					85 °C	-40 °C	125 VAC	Black	Gold	Backshell Coupling Nut Winged	Plastic	Bayonet Lock	Copper Alloy	Keyed	Thermoplastic	Unshielded	Free Hanging (In-Line)	Communication Systems Industrial Marine Medical	0.18 in	0.22 in	4.57 mm	5.59 mm

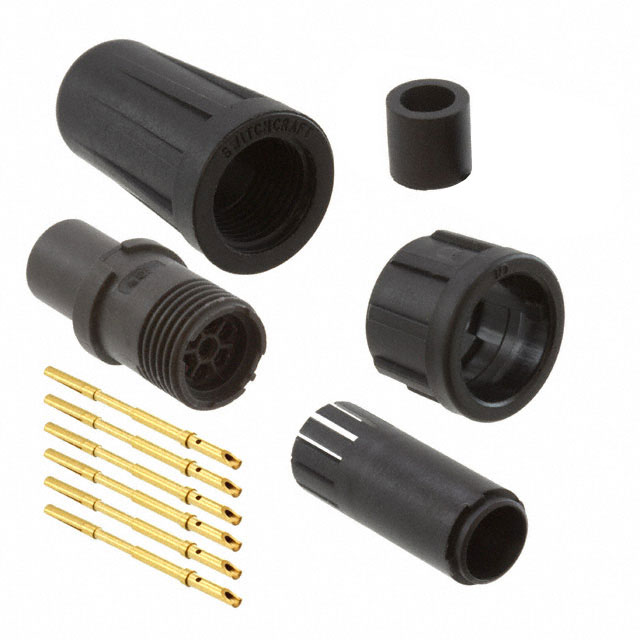

Switchcraft Inc. EN2C6F26G1	UL94 V-0	Female Sockets Plug	Crimp Solder Cup	Elastomer	IP66 IP67 IP68					85 °C	-40 °C	125 VAC	Black	Gold	Backshell Coupling Nut	Plastic	Bayonet Lock	Copper Alloy	Keyed	Thermoplastic	Unshielded	Free Hanging (In-Line)	Communication Systems Industrial Marine Medical					6	2.54 mm 3.56 mm	0.1 in 0.14 in

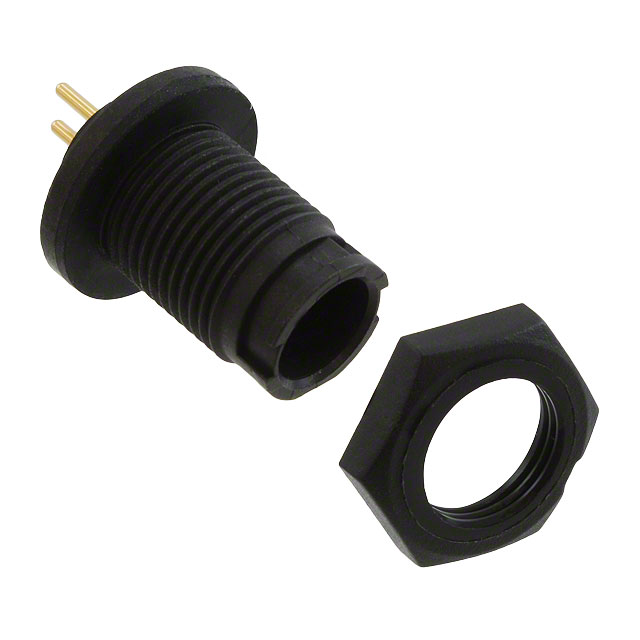

Switchcraft Inc. EN2P5M26PK	UL94 V-0	Male Pins Receptacle	Solder	Elastomer	IP66 IP67 IP68					85 °C	-40 °C	125 VAC	Black	Gold		Plastic	Bayonet Lock	Copper Alloy	Keyed		Unshielded	Panel Mount Through Hole	Communication Systems Industrial Marine Medical								Bulkhead - Front Side Nut

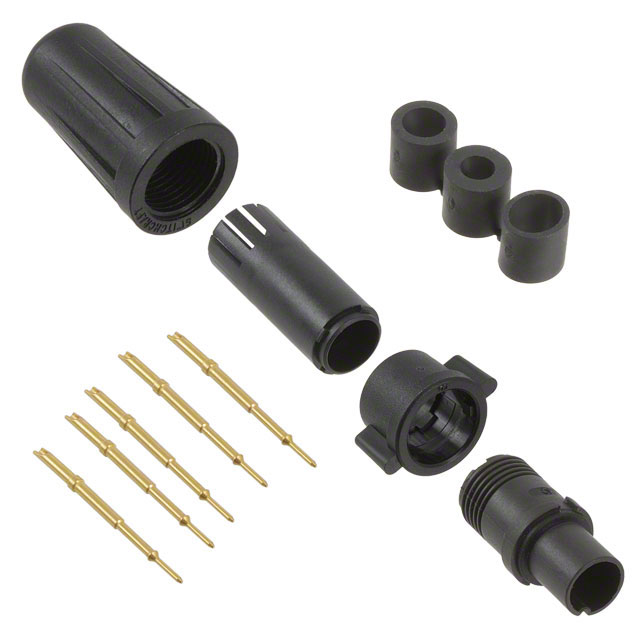

Switchcraft Inc. EN2C5M26DCW	UL94 V-0	Male Pins Plug	Crimp Solder Cup	Elastomer	IP66 IP67 IP68					85 °C	-40 °C	125 VAC	Black	Gold	Backshell Coupling Nut Winged	Plastic	Bayonet Lock	Copper Alloy	Keyed	Thermoplastic	Unshielded	Free Hanging (In-Line)	Communication Systems Industrial Marine Medical

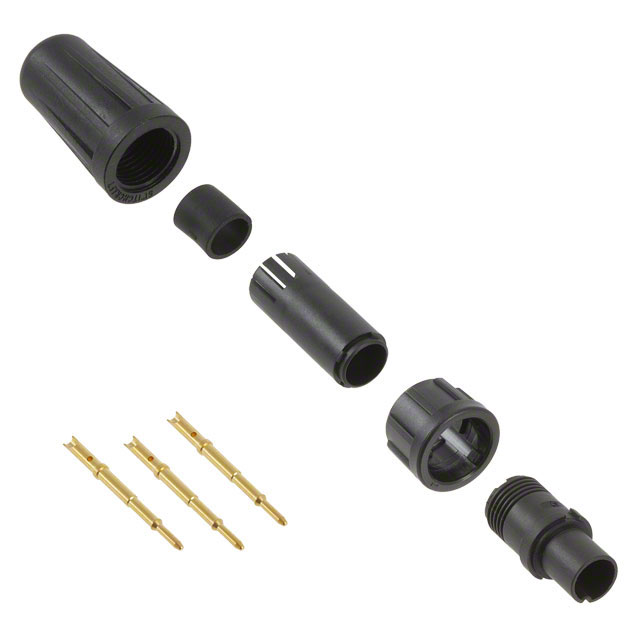

Switchcraft Inc. EN2C3M20G3	UL94 V-0	Male Pins Plug	Crimp Solder Cup	Elastomer	IP66 IP67 IP68					85 °C	-40 °C	125 VAC	Black	Gold	Backshell Coupling Nut	Plastic	Bayonet Lock	Copper Alloy	Keyed	Thermoplastic	Unshielded	Free Hanging (In-Line)	Communication Systems Industrial Marine Medical	0.18 in	0.22 in	4.57 mm	5.59 mm					2 A

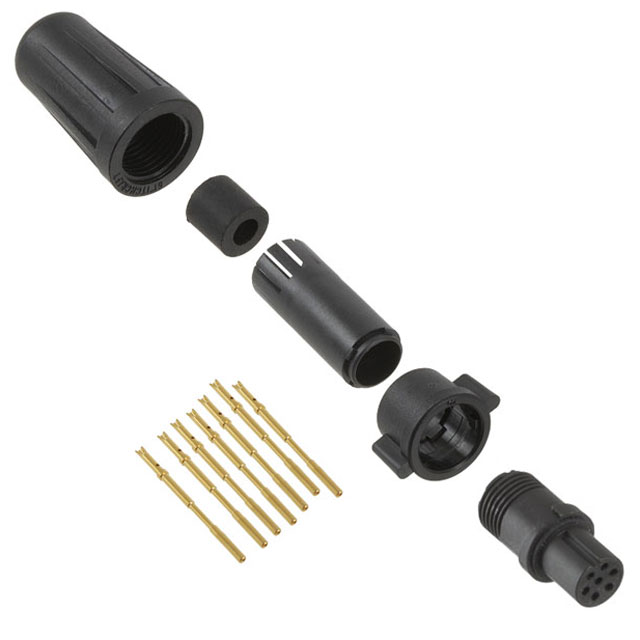

Switchcraft Inc. EN2C7F26G1W	UL94 V-0	Female Sockets Plug	Crimp Solder Cup	Elastomer	IP66 IP67 IP68					85 °C	-40 °C	125 VAC	Black	Gold	Backshell Coupling Nut Winged	Plastic	Bayonet Lock	Copper Alloy	Keyed	Thermoplastic	Unshielded	Free Hanging (In-Line)	Communication Systems Industrial Marine Medical					7	2.54 mm 3.56 mm	0.1 in 0.14 in
Switchcraft Inc. EN2C7F26G2W	UL94 V-0	Female Sockets Plug	Crimp Solder Cup	Elastomer	IP66 IP67 IP68	4.57 mm	3.56 mm	0.14 in	0.18 in	85 °C	-40 °C	125 VAC	Black	Gold	Backshell Coupling Nut Winged	Plastic	Bayonet Lock	Copper Alloy	Keyed	Thermoplastic	Unshielded	Free Hanging (In-Line)	Communication Systems Industrial Marine Medical					7
Switchcraft Inc. EN2C2M20G1	UL94 V-0	Male Pins Plug	Crimp Solder Cup	Elastomer	IP66 IP67 IP68					85 °C	-40 °C	250 VAC	Black	Gold	Backshell Coupling Nut	Plastic	Bayonet Lock	Copper Alloy	Keyed	Thermoplastic	Unshielded	Free Hanging (In-Line)	Communication Systems Industrial Marine Medical					2	2.54 mm 3.56 mm	0.1 in 0.14 in		3.5 A

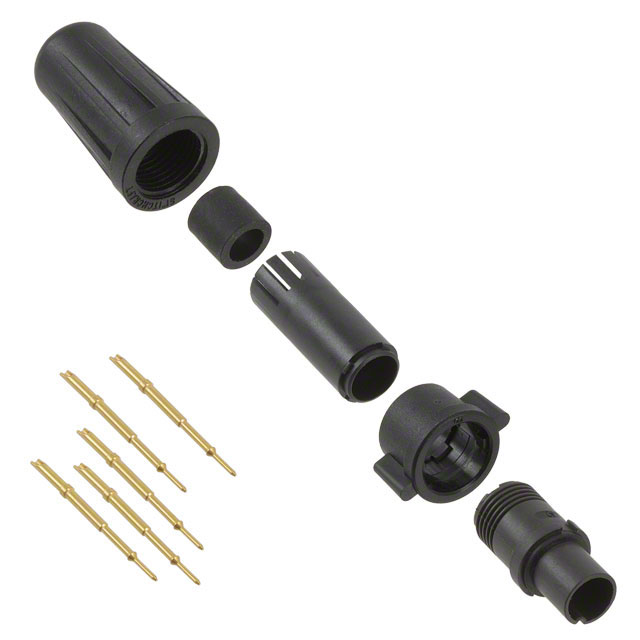

Switchcraft Inc. EN2C5M26G2W	UL94 V-0	Male Pins Plug	Crimp Solder Cup	Elastomer	IP66 IP67 IP68	4.57 mm	3.56 mm	0.14 in	0.18 in	85 °C	-40 °C	125 VAC	Black	Gold	Backshell Coupling Nut Winged	Plastic	Bayonet Lock	Copper Alloy	Keyed	Thermoplastic	Unshielded	Free Hanging (In-Line)	Communication Systems Industrial Marine Medical
