160786 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

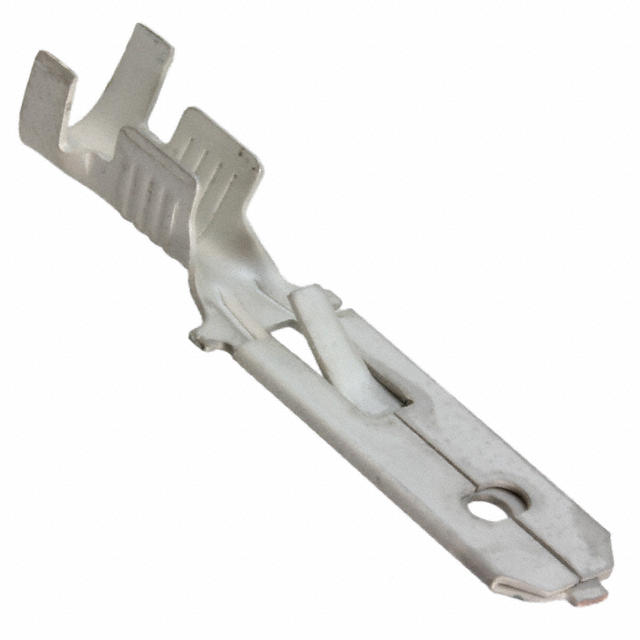

CONN QC TAB 11-14AWG 0.250 CRIMP
| Part | Tab Length | Tab Length | Contact Material | Terminal Type | Tab Thickness | Tab Thickness | Mounting Type | Wire Gauge [Max] | Wire Gauge [Min] | Gender | Tab Width | Tab Width | Insulation | Termination | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 0.62 in | 15.75 mm | Phosphor Bronze | Standard | 0.032 in | 0.81 mm | Free Hanging (In-Line) | 14 AWG | 11 AWG | Male | 6.35 mm | 0.25 in | Non-Insulated | Crimp | 0.169 in | 0.118 in | 3 mm 4.29 mm | Tin |
