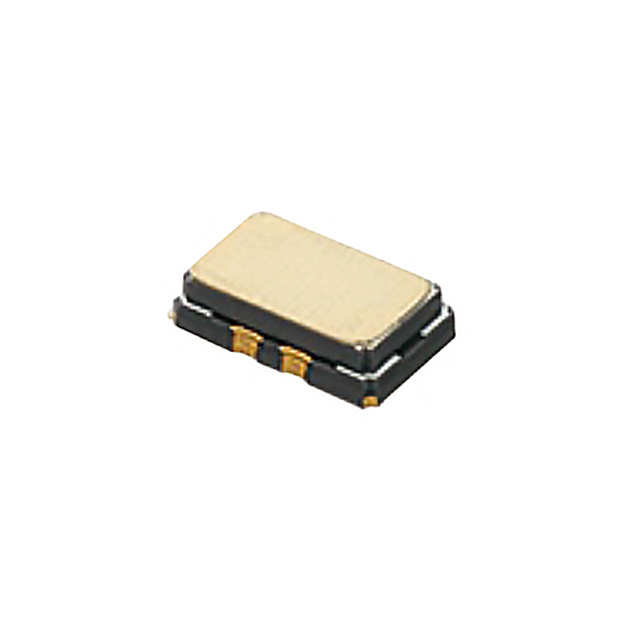

XTCLH Series

Catalog

XTAL OSC TCXO 10.0000MHZ CMOS

Part	Frequency	Height - Seated (Max) [Max]	Height - Seated (Max)	Frequency Stability	Output	Voltage - Supply	Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Base Resonator [custom]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Current - Supply (Max) [Max]	Ratings
Murata Electronics XTCLH10M000CHJA1P0	10 MHz	0.059 "	1.5 mm	280 ppb	CMOS	3.3 V	TCXO	3.2 mm	0.126 in	5 mm	0.197 in	Surface Mount	Crystal	8-SMD No Lead	85 °C	-40 C	3 mA
Murata Electronics XTCLH25M000THJA0P0	25 MHz	0.059 "	1.5 mm	200 ppb	Clipped Sine Wave	3 V	TCXO	3.2 mm	0.126 in	5 mm	0.197 in	Surface Mount	Crystal	8-SMD No Lead	85 °C	-40 C	2.6 mA
Murata Electronics XTCLH26M000THJA0P0	26 MHz	0.059 "	1.5 mm	200 ppb	Clipped Sine Wave	3 V	TCXO	3.2 mm	0.126 in	5 mm	0.197 in	Surface Mount	Crystal	8-SMD No Lead	85 °C	-40 C	2.6 mA
Murata Electronics XTCLH25M000TJJA5P2	25 MHz	0.059 "	1.5 mm	200 ppb	Clipped Sine Wave	3 V	VCTCXO	3.2 mm	0.126 in	5 mm	0.197 in	Surface Mount	Crystal	8-SMD No Lead	85 °C	-40 C		AEC-Q200
Murata Electronics XTCLH20M000THJA0P0	20 MHz	0.059 "	1.5 mm	200 ppb	Clipped Sine Wave	3 V	TCXO	3.2 mm	0.126 in	5 mm	0.197 in	Surface Mount	Crystal	8-SMD No Lead	85 °C	-40 C	2 mA
Murata Electronics XTCLH40M000CHJA0P0	40 MHz	0.059 "	1.5 mm	280 ppb	CMOS	3.3 V	TCXO	3.2 mm	0.126 in	5 mm	0.197 in	Surface Mount	Crystal	8-SMD No Lead	85 °C	-40 C	5 mA
Murata Electronics XTCLH20M000CYJB6P0	20 MHz	0.059 "	1.5 mm	280 ppb	CMOS	3.3 V	TCXO	3.2 mm	0.126 in	5 mm	0.197 in	Surface Mount	Crystal	8-SMD No Lead	85 °C	-40 C	6 mA
Murata Electronics XTCLH24M576THJA6P0	24.576 MHz	0.059 "	1.5 mm	200 ppb	Clipped Sine Wave	3 V	TCXO	3.2 mm	0.126 in	5 mm	0.197 in	Surface Mount	Crystal	8-SMD No Lead	85 °C	-40 C	2.6 mA
Murata Electronics XTCLH20M000CHJA0P0	20 MHz	0.059 "	1.5 mm	280 ppb	CMOS	3.3 V	TCXO	3.2 mm	0.126 in	5 mm	0.197 in	Surface Mount	Crystal	8-SMD No Lead	85 °C	-40 C	3 mA
Murata Electronics XTCLH30M720THJA0P0	30.72 MHz	0.059 "	1.5 mm	200 ppb	Clipped Sine Wave	3 V	TCXO	3.2 mm	0.126 in	5 mm	0.197 in	Surface Mount	Crystal	8-SMD No Lead	85 °C	-40 C	2.6 mA
