C3640C Series
Manufacturer: KEMET
Beta
⌘K

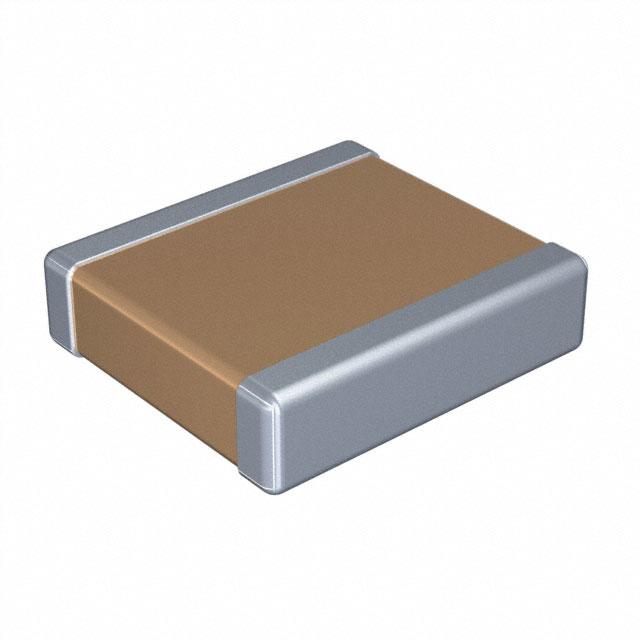

CAP CERAMIC 0.018UF 1500V C0G 5% PAD SMD 3640 125°C T/R AUTOMOTIVE AEC-Q200
| Part | Ratings | Thickness (Max) [Max] | Thickness (Max) [Max] | Package / Case | Mounting Type | Applications | Features | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Tolerance | Operating Temperature [Min] | Operating Temperature [Max] | Temperature Coefficient | Capacitance | Voltage - Rated | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | AEC-Q200 | 0.106 in | 2.7 mm | 3640 (9110 Metric) | MLCC Surface Mount | Automotive | High Voltage Low ESL | 9.1 mm | 0.358 " | 0.402 in | 10.2 mm | 5 % | -55 C | 125 °C | C0G NP0 | 0.018 µF | 1.5 kV | 1500 V |
