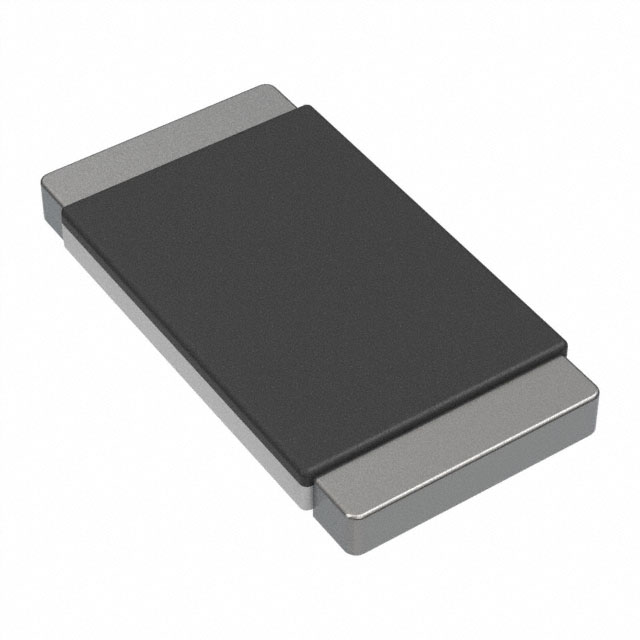

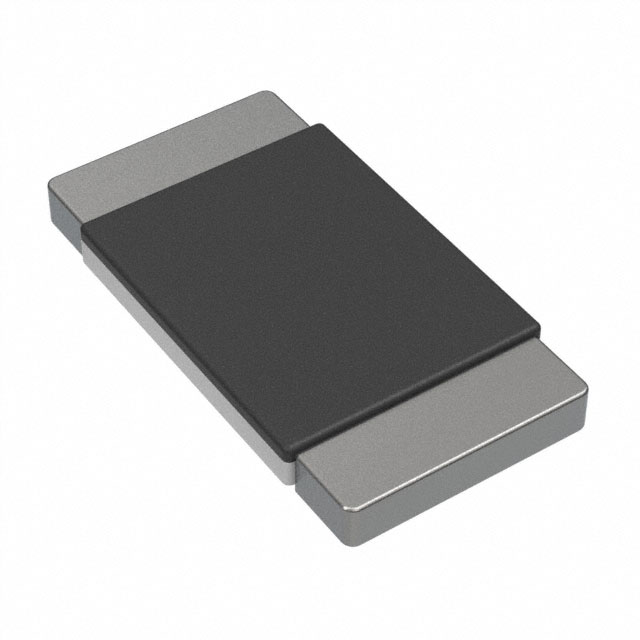

SCMM2512S3 Series

Catalog

RES 0.008 OHM 1% 3W 2512

Part	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Features	Supplier Device Package	Composition	Resistance	Package / Case	Tolerance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Temperature Coefficient	Number of Terminations [custom]
Delta Electronics/Cyntec SCMM2512S3-R008F	2512 2512 (6432 Metric)	0.033 in	0.85 mm	3 W	-65 ░C	170 °C	Current Sense Pulse Withstanding	2512	Metal Film	8 mOhms	6332 Metric	1 %	0.126 in	3.2 mm	0.25 in	6.35 mm	50 ppm/░C	2
Delta Electronics/Cyntec SCMM2512S30M50FW	2512 2512 (6432 Metric)	0.033 in	0.85 mm	3 W	-65 ░C	170 °C	Current Sense Pulse Withstanding	2512	Metal Film	0.5 mOhms	6332 Metric	1 %	0.126 in	3.2 mm	0.25 in	6.35 mm	75 ppm/°C	2
Delta Electronics/Cyntec SCMM2512S3-0M80F	2512 (6432 Metric)	0.033 in	0.85 mm	3 W	-65 ░C	170 °C	Current Sense Pulse Withstanding	2512	Metal Film	0.8 mOhms		1 %	0.126 in	3.2 mm	0.25 in	6.35 mm	75 ppm/°C	2
Delta Electronics/Cyntec SCMM2512S3R001FW	2512 2512 (6432 Metric)	0.033 in	0.85 mm	3 W	-65 ░C	170 °C	Current Sense Pulse Withstanding	2512	Metal Film	1 mOhms	6332 Metric	1 %	0.126 in	3.2 mm	0.25 in	6.35 mm	50 ppm/░C	2
