TF037 Series

Catalog

FAN BLOWER 54X37.3MM AERO 24VDC

Part	Current Rating (Amps)	RPM	Static Pressure	Static Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Weight	Weight	Bearing Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension	Width [x]	Fan Type	Air Flow	Air Flow	Termination	Noise	Power (Watts)	Voltage - Rated	Fits Fan Size	Length	Length	Fan Accessory Type	Width [y]

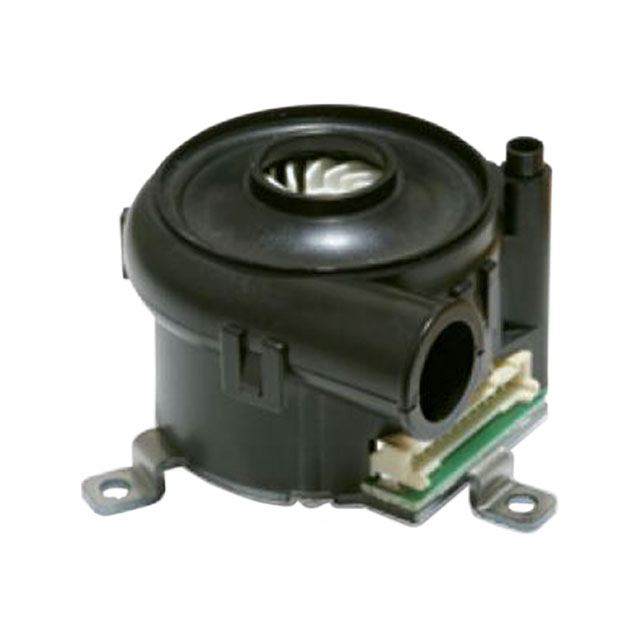

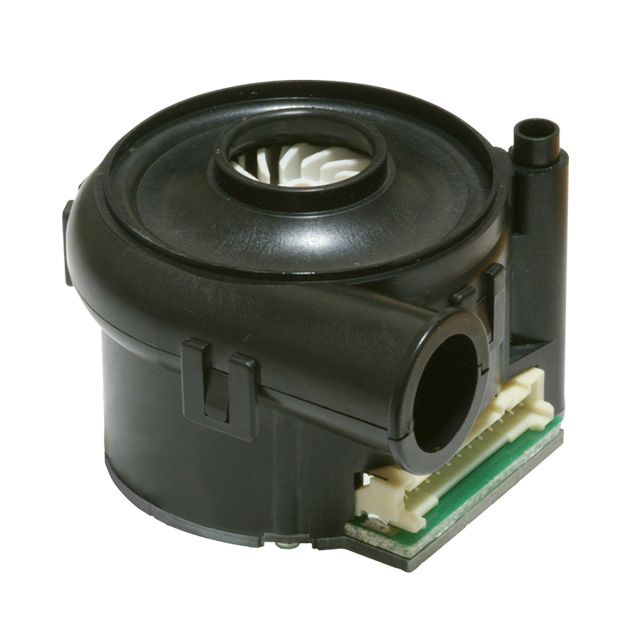

Nidec Components Corporation TF037C-2000-F	1.2 A	40000 RPM	4000 Pa	16.06 in H2O	50 °C	0 °C	0 °C	50 °C	0.198 lb	89.81 g	Aerodynamic	54 mm	50.5 mm	Rectangular/Rounded	37.3 mm	Blower Centrifugal	0.098 mł/min	3.5 CFM	12 Position Rectangular Connector	67 dB	29 W	24 VDC

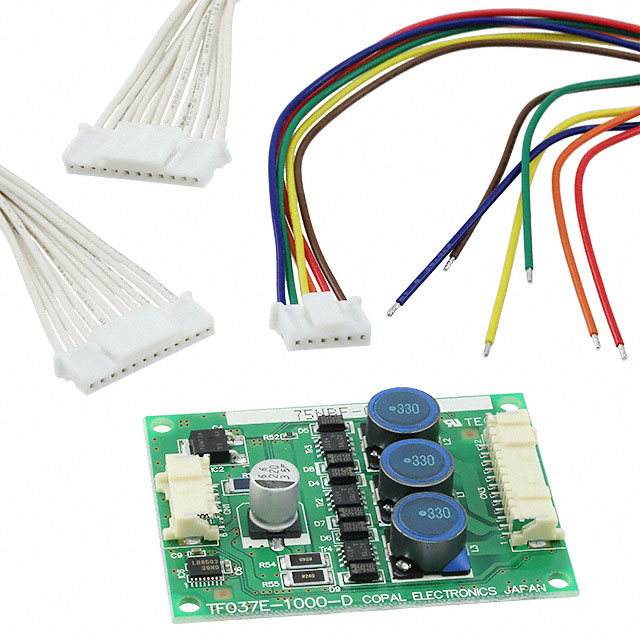

Nidec Components Corporation TF037-1001-D																							TF037 Series	2.56 in	65 mm	Driver Kit
Nidec Components Corporation TF037C-2100-F	1.2 A	40000 RPM	4000 Pa	16.06 in H2O	50 °C	0 °C	0 °C	50 °C	0.207 lb	93.89 g	Aerodynamic	54 mm	50.5 mm	Rectangular/Rounded		Blower Centrifugal	0.098 mł/min	3.5 CFM	12 Position Rectangular Connector	67 dB	29 W	24 VDC					40.4 mm
