MPI001 Series
Manufacturer: BULGIN LIMITED
Beta
⌘K
PUSHBUTTON SWITCHES STAINLES STEEL VANDL RESISTANT SWITCH
| Part | Termination Style | Circuit | Type | Ingress Protection | Voltage Rating - DC | Actuator Marking | Features | Color - Actuator/Cap | Operating Temperature [Min] | Operating Temperature [Max] | Switch Function | Mounting Type | Panel Cutout Dimensions [diameter] | Current Rating (Amps) | Actuator Type | Illumination Type, Color | Illumination Voltage (Nominal) | Mechanical Life | Electrical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BULGIN LIMITED | Screw Terminal | SPST-NO | Anti-Vandal Illuminated | IP66 - Dust Tight Water Resistant | 24 V | No Marking | Stainless Steel | Silver | -30 ░C | 70 °C | Off-Mom | Panel Mount Front | 19.2 mm | 50 mA | Button Flush Round | Green LED | 6 VDC | ||
 BULGIN LIMITED | Screw Terminal | SPST-NO | Anti-Vandal Illuminated | IP66 - Dust Tight Water Resistant | 24 V | No Marking | Stainless Steel | Silver | -30 ░C | 70 °C | Off-Mom | Panel Mount Front | 19.2 mm | 50 mA | Button Flush Round | Blue LED | 3.5 VDC | 750000 Cycles | 35000 Cycles |
BULGIN LIMITED | Quick Connect - 0.110" (2.8mm) | SPST-NO | Anti-Vandal Illuminated | IP66 - Dust Tight Water Resistant | 24 V | No Marking | Stainless Steel | Silver | -30 ░C | 70 °C | Off-Mom | Panel Mount Front | 19.2 mm | 50 mA | Button Flush Round | Blue LED | 12 VDC | 750000 Cycles | 35000 Cycles |
 BULGIN LIMITED | Screw Terminal | SPST-NO | Anti-Vandal Illuminated | IP66 - Dust Tight Water Resistant | 24 V | No Marking | Stainless Steel | Silver | -30 ░C | 70 °C | Off-Mom | Panel Mount Front | 19.2 mm | 50 mA | Button Flush Round | LED Red | 1.85 VDC | 750000 Cycles | 35000 Cycles |
 BULGIN LIMITED | Screw Terminal | SPST-NO | Anti-Vandal Illuminated | IP66 - Dust Tight Water Resistant | 24 V | No Marking | Stainless Steel | Silver | -30 ░C | 70 °C | Off-Mom | Panel Mount Front | 19.2 mm | 50 mA | Button Flush Round | Blue LED | 6 VDC | 750000 Cycles | 35000 Cycles |
 BULGIN LIMITED | Screw Terminal | SPST-NO | Anti-Vandal Illuminated | IP66 - Dust Tight Water Resistant | 24 V | No Marking | Stainless Steel | Silver | -30 ░C | 70 °C | Off-Mom | Panel Mount Front | 19.2 mm | 50 mA | Button Flush Round | Green LED | 24 V | 750000 Cycles | 35000 Cycles |

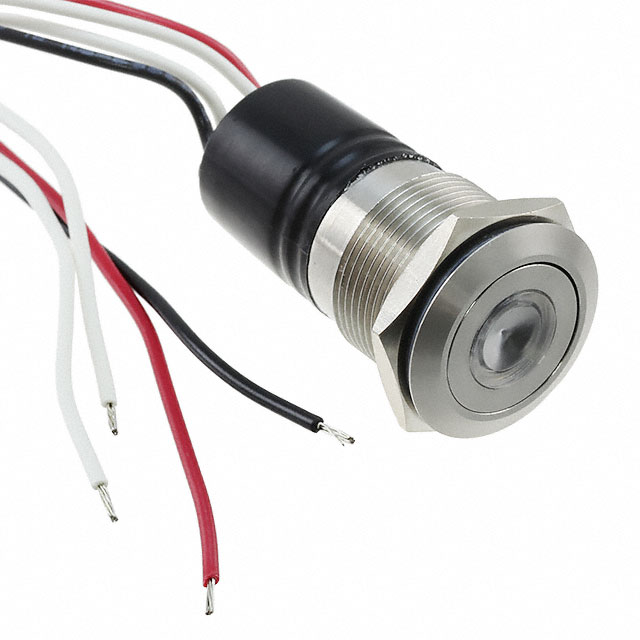

 BULGIN LIMITED | Wire Leads | SPST-NO | Anti-Vandal Illuminated | IP66 - Dust Tight Water Resistant | 24 V | No Marking | Stainless Steel | Silver | -30 ░C | 70 °C | Off-Mom | Panel Mount Front | 19.2 mm | 50 mA | Button Flush Round | Amber LED | 12 VDC | 750000 Cycles | 35000 Cycles |
BULGIN LIMITED | Wire Leads | SPST-NO | Anti-Vandal Illuminated | IP66 - Dust Tight Water Resistant | 24 V | No Marking | Stainless Steel | Silver | -30 ░C | 70 °C | Off-Mom | Panel Mount Front | 19.2 mm | 50 mA | Button Flush Round | LED Red | 12 VDC | 750000 Cycles | 35000 Cycles |
BULGIN LIMITED | Screw Terminal | SPST-NO | Anti-Vandal Illuminated | IP66 - Dust Tight Water Resistant | 24 V | No Marking | Stainless Steel | Silver | -30 ░C | 70 °C | Off-Mom | Panel Mount Front | 19.2 mm | 50 mA | Button Flush Round | Amber LED | 24 V | 750000 Cycles | 35000 Cycles |
BULGIN LIMITED | Quick Connect - 0.110" (2.8mm) | SPST-NO | Anti-Vandal Illuminated | IP66 - Dust Tight Water Resistant | 24 V | No Marking | Stainless Steel | Silver | -30 ░C | 70 °C | Off-Mom | Panel Mount Front | 19.2 mm | 50 mA | Button Flush Round | Blue LED | 6 VDC | 750000 Cycles | 35000 Cycles |
