4FSH9 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 24V

Part	Actuator Material	Mechanical Life	Switch Travel	Switch Function	Features	Operating Temperature [Max]	Operating Temperature [Min]	Contact Rating @ Voltage	Ingress Protection	Actuator Height off PCB, Vertical [z]	Illumination Type, Color	Termination Style	Mounting Type	Actuator Orientation	Illumination Voltage (Nominal)	Circuit	Illumination	Actuator Type	Operating Force	Outline [x]	Outline [y]

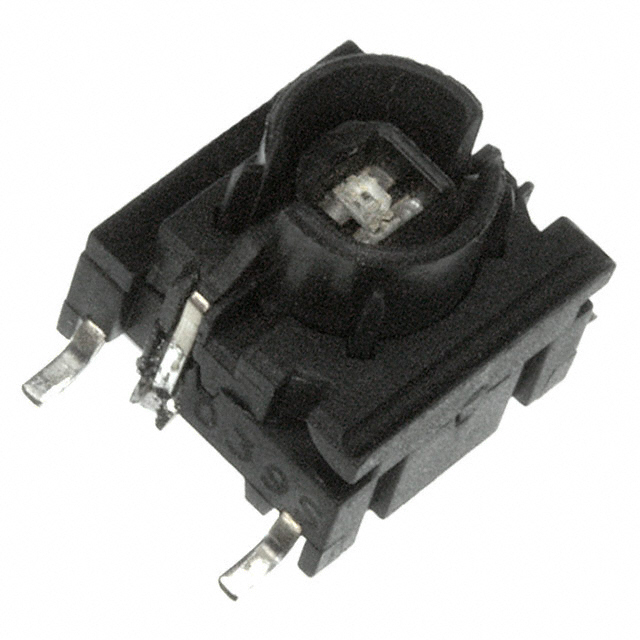

MEC Switches 4FSH922	Polyphenylene Sulfide (PPS)	10000000 Cycles	1 mm	Off-Mom	Sealed - Flux Protection	85 °C	-30 ░C	0.05 A 24 VDC	IP67 - Dust Tight Waterproof	10.4 mm	Green LED	Gull Wing	Surface Mount	Top Actuated	2.2 VDC	SPST-NO	Illuminated	Plunger for Cap	300 gf	10.1 mm	10.1 mm

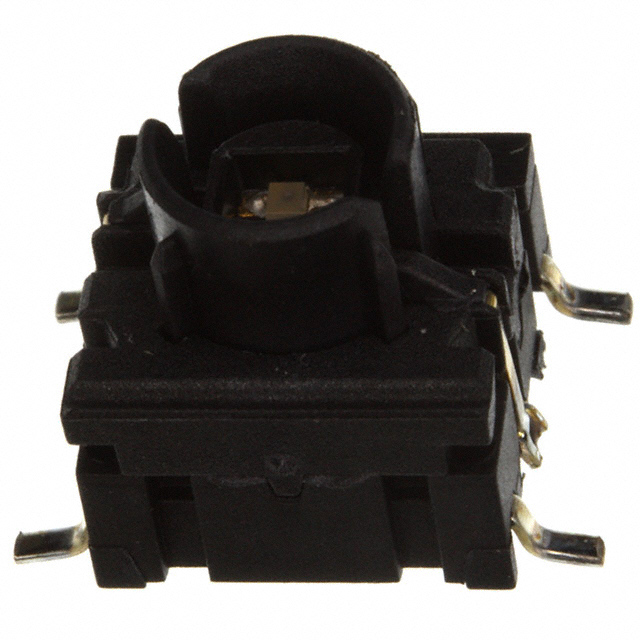

MEC Switches 4FSH982	Polyphenylene Sulfide (PPS)	10000000 Cycles	1 mm	Off-Mom	Sealed - Flux Protection	85 °C	-30 ░C	0.05 A 24 VDC	IP67 - Dust Tight Waterproof	10.4 mm	LED Red	Gull Wing	Surface Mount	Top Actuated	2 VDC	SPST-NO	Illuminated	Plunger for Cap	300 gf	10.1 mm	10.1 mm

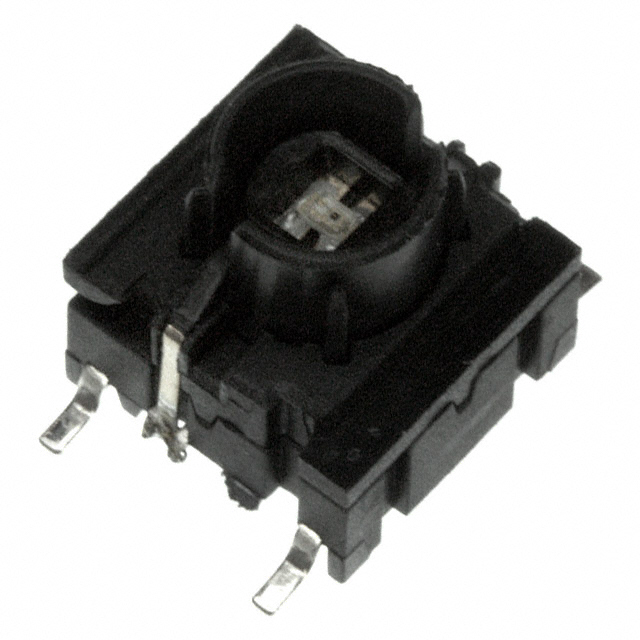

MEC Switches 4FSH942	Polyphenylene Sulfide (PPS)	10000000 Cycles	1 mm	Off-Mom	Sealed - Flux Protection	85 °C	-30 ░C	0.05 A 24 VDC	IP67 - Dust Tight Waterproof	10.4 mm	LED Yellow	Gull Wing	Surface Mount	Top Actuated	2 VDC	SPST-NO	Illuminated	Plunger for Cap	300 gf	10.1 mm	10.1 mm

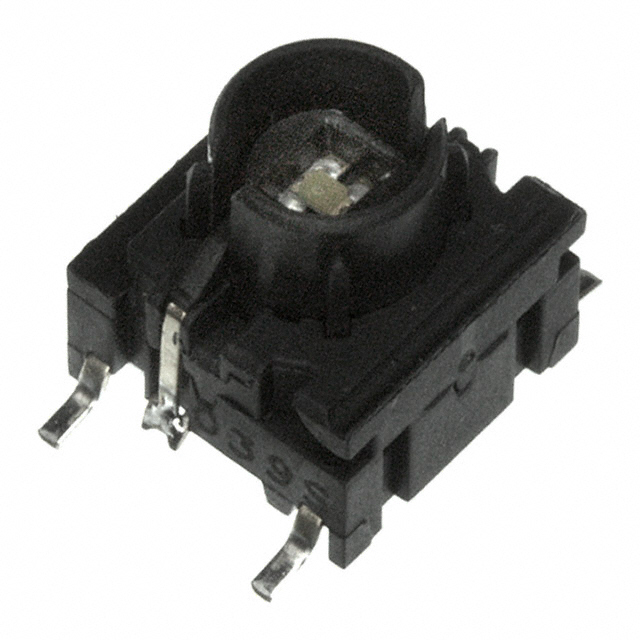

MEC Switches 4FSH961	Polyphenylene Sulfide (PPS)	10000000 Cycles	1 mm	Off-Mom	Sealed - Flux Protection	85 °C	-30 ░C	0.05 A 24 VDC	IP67 - Dust Tight Waterproof	10.4 mm	LED White	Gull Wing	Surface Mount	Top Actuated	3.05 VDC	SPST-NO	Illuminated	Plunger for Cap	300 gf	10.1 mm	10.1 mm

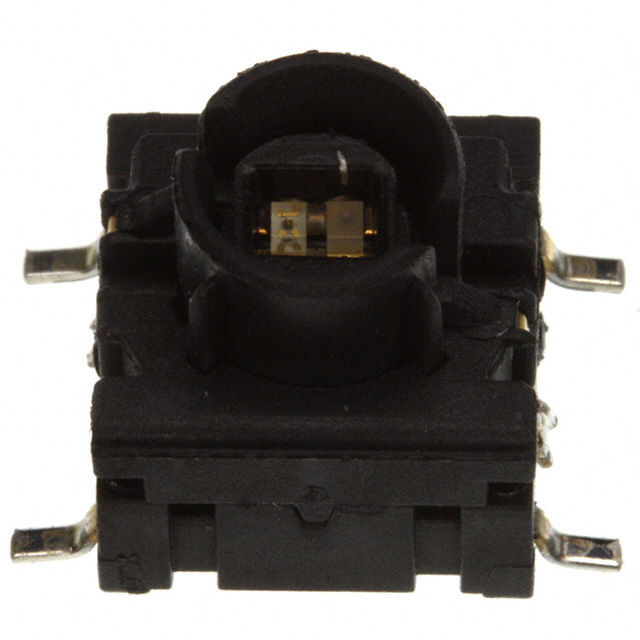

MEC Switches 4FSH98222	Polyphenylene Sulfide (PPS)	10000000 Cycles	1 mm	Off-Mom	Sealed - Flux Protection	85 °C	-30 ░C	0.05 A 24 VDC	IP67 - Dust Tight Waterproof	10.4 mm	Green/Red LED	Gull Wing	Surface Mount	Top Actuated	2 VDC 2.2 VDC	SPST-NO	Illuminated	Plunger for Cap	300 gf	10.1 mm	10.1 mm

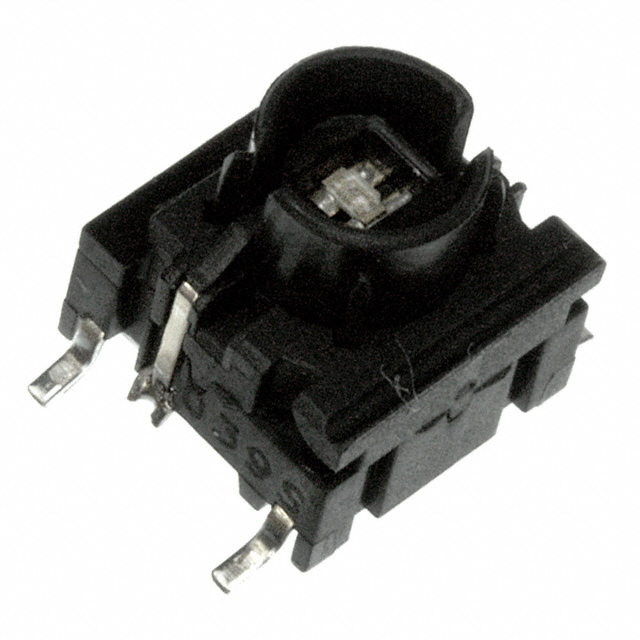

MEC Switches 4FSH901	Polyphenylene Sulfide (PPS)	10000000 Cycles	1 mm	Off-Mom	Sealed - Flux Protection	85 °C	-30 ░C	0.05 A 24 VDC	IP67 - Dust Tight Waterproof	10.4 mm	Blue LED	Gull Wing	Surface Mount	Top Actuated		SPST-NO	Illuminated	Plunger for Cap	300 gf	10.1 mm	10.1 mm
