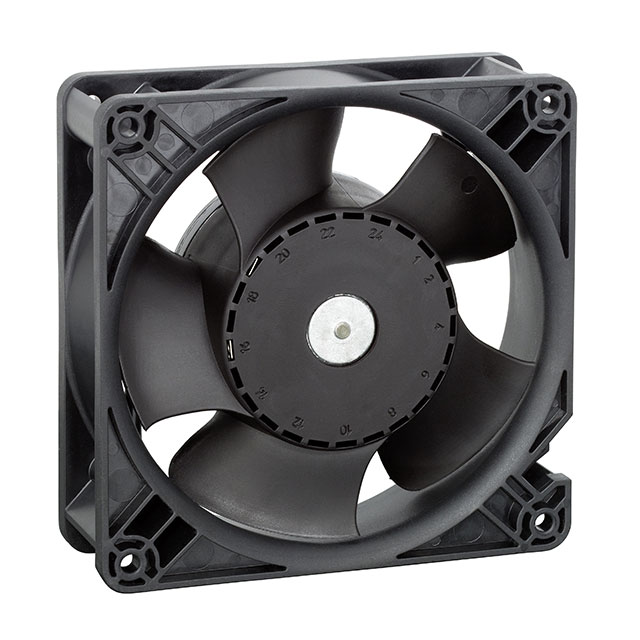

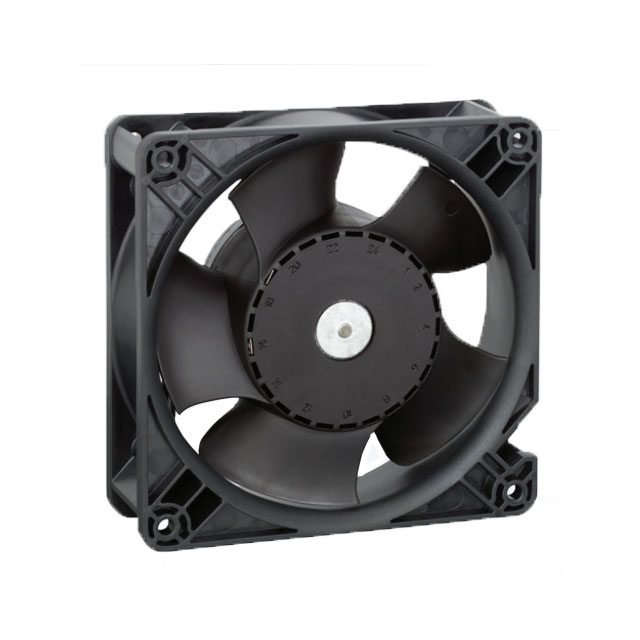

DV4114 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K
DC FANS TUBEAXIAL, 119X38MM, 24VDC, 164.7CFM, 20.5W, 61DB, 6000RPM, BALL, SPEED SIGNAL
| Part | Lifetime @ Temp. | Material - Blade | Material - Frame | Voltage Range [Max] | Voltage Range [Min] | Size / Dimension | Size / Dimension [x] | Size / Dimension [y] | Voltage - Rated | Power (Watts) | Noise | RPM | Features | Width [y] | Termination | Air Flow | Air Flow | Bearing Type | Operating Temperature | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Fan Type | Weight | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | 70000 Hrs | Polyamide (PA) Nylon Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 30 V | 16 VDC | Square | 119 mm | 119 mm | 24 VDC | 20.5 W | 61 dB(A) | 6000 RPM | Speed Sensor (Tach) | 38 mm | 3 Wire Leads | 165 CFM | 4.62 mł/min | Ball | (-20 ~ 65°C) | -20 ░C | 65 °C | CE CSA UL VDE | Tubeaxial | ||

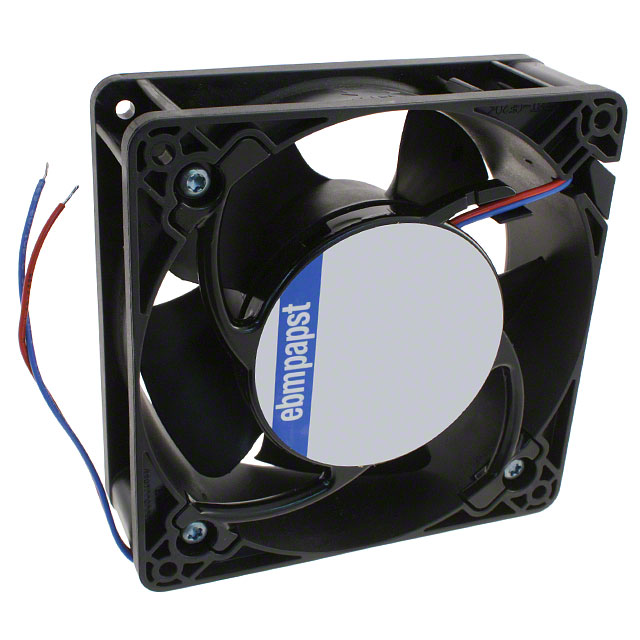

 ebm-papst Inc. | 70000 Hrs | Polyamide (PA) Nylon Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 30 V | 16 VDC | Square | 119 mm | 119 mm | 24 VDC | 20.5 W | 61 dB(A) | 6000 RPM | 38 mm | 2 Wire Leads | 164.9 CFM | 4.62 mł/min | Ball | (-20 ~ 65°C) | -20 ░C | 65 °C | CE CSA UL VDE | Tubeaxial | 0.827 lb | 375.12 g |
