RP8300 Series

Manufacturer: E-Switch

Catalog

SWITCH PB SPST-NO 200MA 250V

Part	Electrical Life	Switch Function	Actuator Marking	Termination Style	Ingress Protection	Panel Cutout Dimensions [diameter]	Actuator Type	Circuit	Voltage Rating - AC	Current Rating (Amps)	Color - Actuator/Cap	Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage Rating - DC	Illumination Voltage (Nominal)	Illumination Type, Color
E-Switch RP8300B2M1CECHRBLKNIL	500000 Cycles	Off-Mom	No Marking	Solder Lug	IP67 - Dust Tight Waterproof	13.6 mm	Button Round	SPST-NO	250 V	200 mA	Black	Standard	85 °C	-30 ░C	Panel Mount Front	50 VDC
E-Switch RP8300B2M1CEBLKBLKNIL	500000 Cycles	Off-Mom	No Marking	Solder Lug	IP67 - Dust Tight Waterproof	13.6 mm	Button Round	SPST-NO	250 V	200 mA	Black	Standard	85 °C	-30 ░C	Panel Mount Front	50 VDC
E-Switch RP8300B2M1CEBLKBLKBLU	500000 Cycles	Off-Mom	No Marking	Solder Lug	IP67 - Dust Tight Waterproof	13.6 mm	Button Round	SPST-NO	250 V	200 mA	Black	Illuminated Standard	85 °C	-30 ░C	Panel Mount Front	50 VDC	2.8 VDC	Blue LED

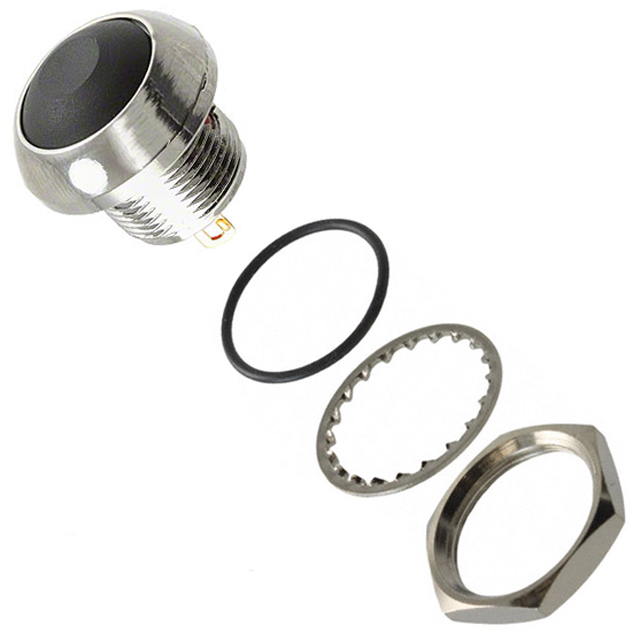

E-Switch RP8300B2M1CENICBLKNIL	500000 Cycles	Off-Mom	No Marking	Solder Lug	IP67 - Dust Tight Waterproof	13.6 mm	Button Round	SPST-NO	250 V	200 mA	Black	Standard	85 °C	-30 ░C	Panel Mount Front	50 VDC
E-Switch RP8300B2M1CEBLKREDNIL	500000 Cycles	Off-Mom	No Marking	Solder Lug	IP67 - Dust Tight Waterproof	13.6 mm	Button Round	SPST-NO	250 V	200 mA	Red	Standard	85 °C	-30 ░C	Panel Mount Front	50 VDC
E-Switch RP8300B2M1CEBLKBLKRED	500000 Cycles	Off-Mom	No Marking	Solder Lug	IP67 - Dust Tight Waterproof	13.6 mm	Button Round	SPST-NO	250 V	200 mA	Black	Illuminated Standard	85 °C	-30 ░C	Panel Mount Front	50 VDC	2.1 VDC	LED Red
E-Switch RP8300B2M1CEBLKBLUNIL	500000 Cycles	Off-Mom	No Marking	Solder Lug	IP67 - Dust Tight Waterproof	13.6 mm	Button Round	SPST-NO	250 V	200 mA	Blue	Standard	85 °C	-30 ░C	Panel Mount Front	50 VDC
E-Switch RP8300B2M1CEBLKBLKGRN	500000 Cycles	Off-Mom	No Marking	Solder Lug	IP67 - Dust Tight Waterproof	13.6 mm	Button Round	SPST-NO	250 V	200 mA	Black	Illuminated Standard	85 °C	-30 ░C	Panel Mount Front	50 VDC	2 VDC	Green LED
