TDA894 Series
Manufacturer: NXP USA Inc.
Beta
⌘K
IC AMP AB DUAL/QUAD 24W DBS17P
| Part | Type | Output Type | Features | Package Name | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Load Impedance | Channels | Maximum Output Power (per Channel) | Operating Temperature (Max) | Operating Temperature (Min) | Mounting Type | Package / Case | Package Length | Package Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NXP USA Inc. | Class AB | 2-Channel (Stereo) or 4-Channel (Quad) | Mute Short-Circuit and Thermal Protection Standby | DBS17P | 9 VDC | 26 V | 4 Ohm 8 Ohm | 2 4 | 12 W 24 W | 85 °C | -40 °C | Through Hole | 17-SIP Formed Leads | ||
NXP USA Inc. | Class AB | 2-Channel (Stereo) | Depop Mute Short-Circuit and Thermal Protection Standby | DBS17P | 6 V | 18 V | 8 Ohm | 2 | 7 W | 85 °C | -40 °C | Through Hole | 17-SIP Formed Leads | ||
NXP USA Inc. | Class AB | 2-Channel (Stereo) | Depop Mute Short-Circuit and Thermal Protection Standby | DBS17P | 4.5 V | 18 V | 8 Ohm | 2 | 15 W | 85 °C | -40 °C | Through Hole | 17-SIP Formed Leads | ||
 NXP USA Inc. | Class AB | 1-Channel (Mono) | Depop Mute Short-Circuit and Thermal Protection Standby | 9-PSIL | 6 V | 25 V | 8 Ohm | 1 | 15 W | 70 °C | -40 °C | Through Hole | 9-SIP | ||
 NXP USA Inc. | Class AB | 1-Channel (Mono) | Depop Mute Short-Circuit and Thermal Protection Standby | 8-DIP | 6 V | 18 V | 16 Ohm | 1 | 1.5 W | 85 °C | -40 °C | Through Hole | 0.3 in | 7.62 mm | |
NXP USA Inc. | Class AB | 4-Channel (Quad) | Depop Mute Short-Circuit and Thermal Protection Standby | DBS17P | 9 VDC | 26 V | 4 Ohm 8 Ohm | 2 4 | 14 W 29 W | 85 °C | -40 °C | Through Hole | 17-SIP Formed Leads | ||
NXP USA Inc. | Class AB | 2-Channel (Stereo) | Depop Mute Short-Circuit and Thermal Protection Standby Volume Control | DBS17P | 4.5 V | 18 V | 8 Ohm | 2 | 7 W | 85 °C | -40 °C | Through Hole | 17-SIP Formed Leads | ||

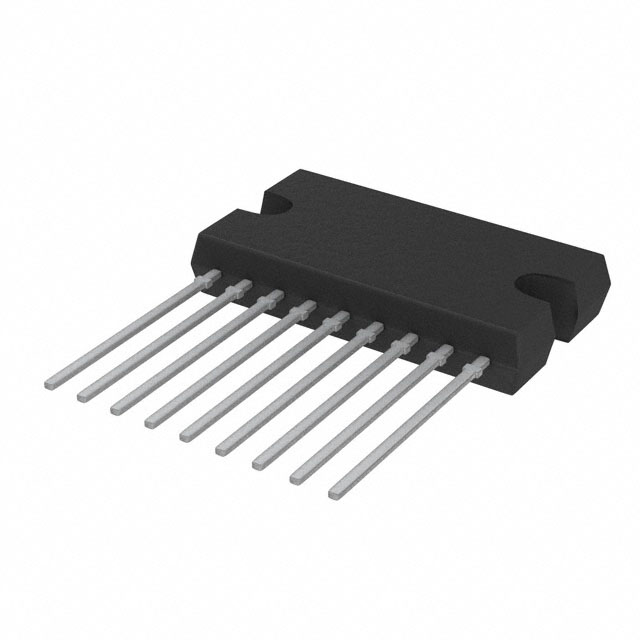

 NXP USA Inc. | Class AB | 1-Channel (Mono) | Depop Mute Short-Circuit and Thermal Protection Standby | 9-SIL MPF | 6 V | 18 V | 8 Ohm | 1 | 6 W | 85 °C | -40 °C | Through Hole | 9-SIP Exposed Tab |
