A14 Series

Catalog

COMP O= .250,L= .53,W= .039

Part	Finish	Rate (lbs/in)	Diameter - Inside	Free Length	Material	Diameter - Outside	End Style	Wire Diameter	Type

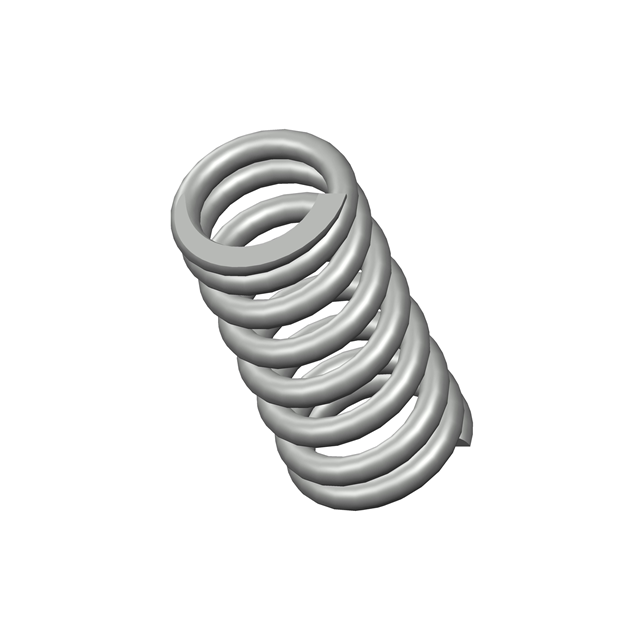

Century Spring Corp A14-9CS	Gold Iridite	59 lbs/in	0.172 in	0.53 in	Spring Steel	0.25 in	Closed Ground	0.039 in	Compression

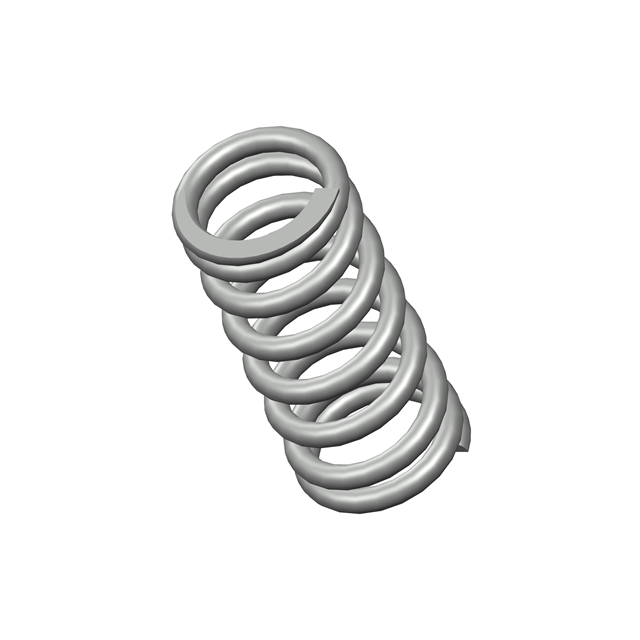

Century Spring Corp A14-1CS	Gold Iridite	45 lbs/in	0.212 in	0.69 in	Spring Steel	0.296 in	Closed Ground	0.042 in	Compression

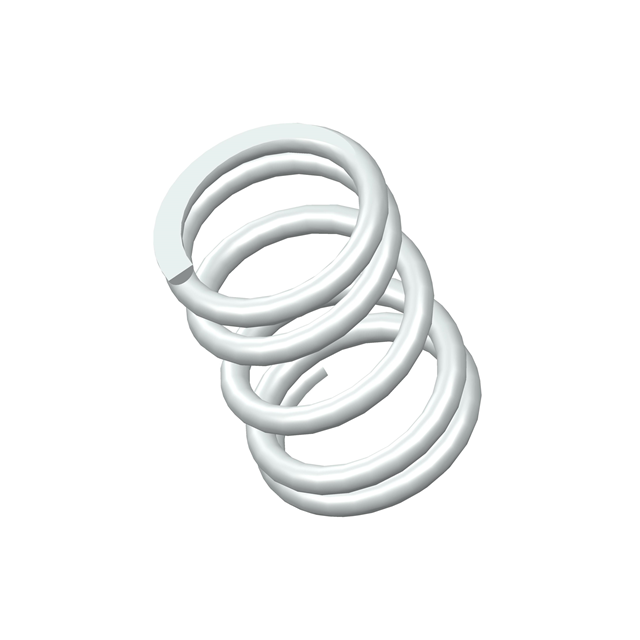

Century Spring Corp A14-25CS	None	39 lbs/in	0.236 in	0.44 in	Stainless Steel	0.312 in	Closed Ground	0.038 in	Compression

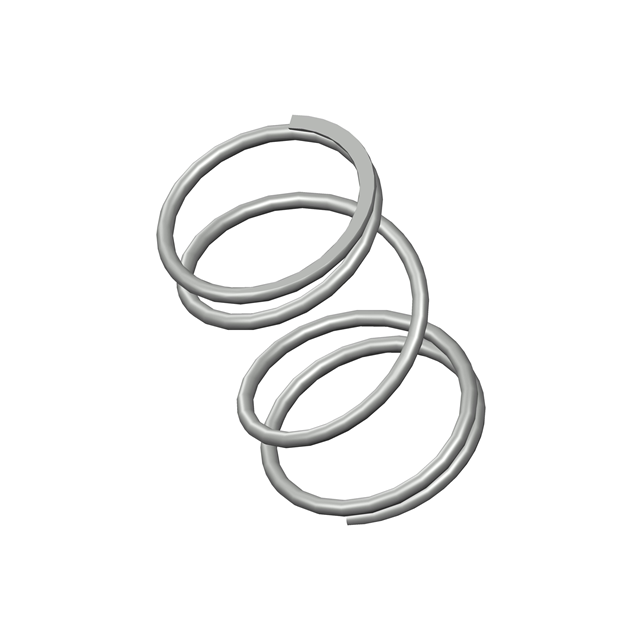

Century Spring Corp A14-63CS	Gold Iridite	12 lbs/in	0.562 in	1.03 in	Spring Steel	0.656 in	Closed Ground	0.047 in	Compression

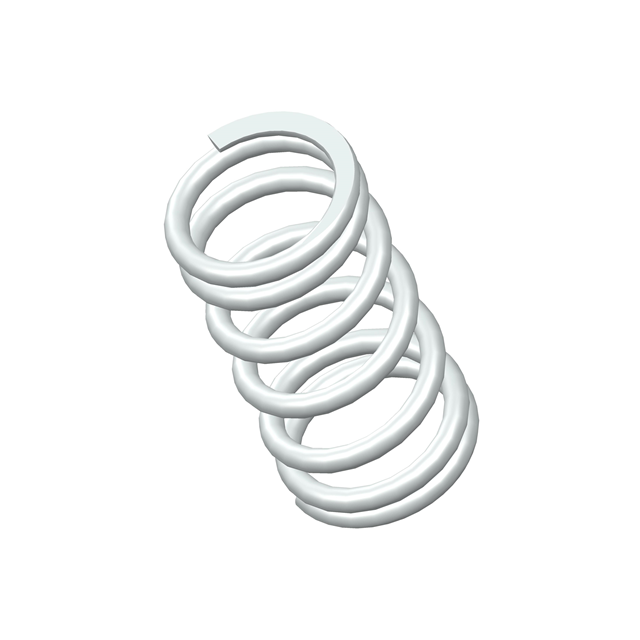

Century Spring Corp A14-45CS	None	39 lbs/in	0.343 in	0.88 in	Stainless Steel	0.453 in	Closed Ground	0.055 in	Compression

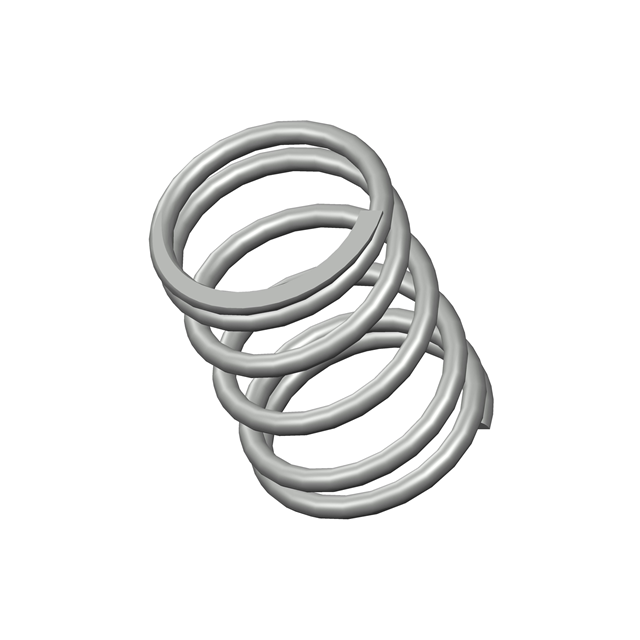

Century Spring Corp A14-42CS	Gold Iridite	18 lbs/in	0.367 in	0.63 in	Spring Steel	0.453 in	Closed Ground	0.043 in	Compression

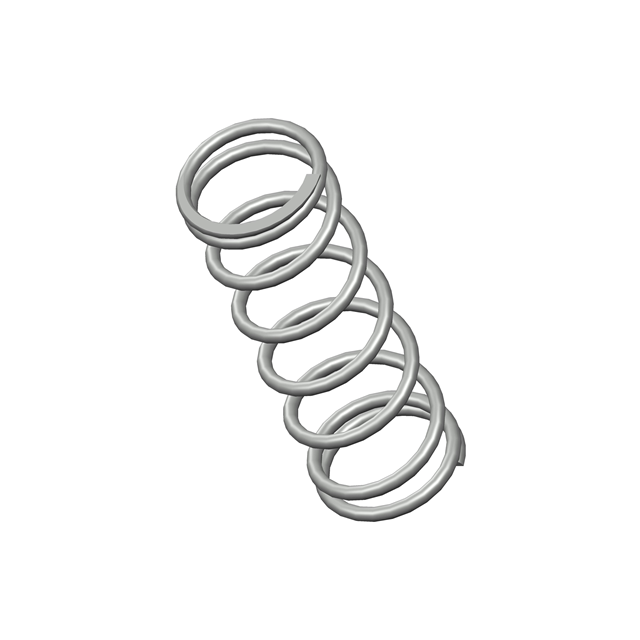

Century Spring Corp A14-20CS	Gold Iridite	6.9 lbs/in	0.202 in	0.75 in	Music Wire	0.25 in	Closed Ground	0.024 in	Compression

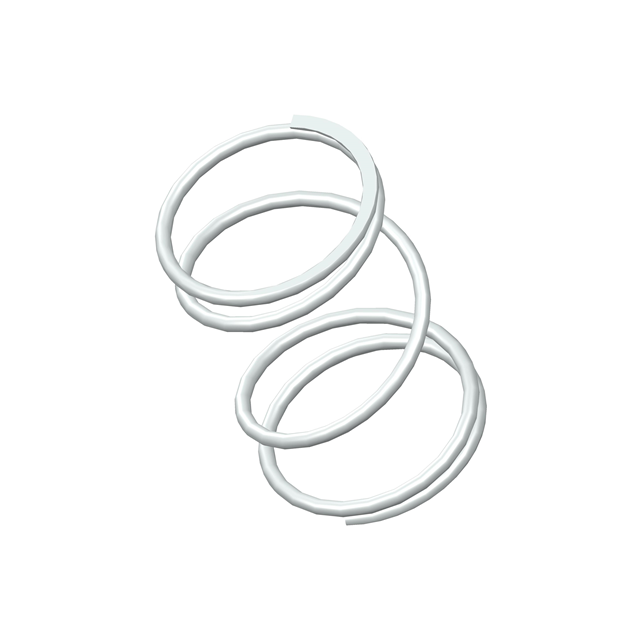

Century Spring Corp A14-64CS	None	8.3 lbs/in	0.568 in	1 in	Stainless Steel	0.656 in	Closed Ground	0.044 in	Compression

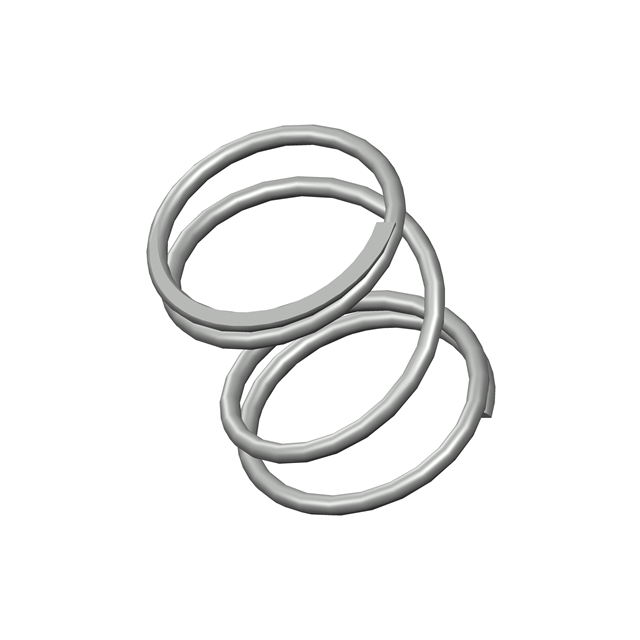

Century Spring Corp A14-67CS	Gold Iridite	23 lbs/in	0.636 in	0.88 in	Spring Steel	0.75 in	Closed Ground	0.057 in	Compression

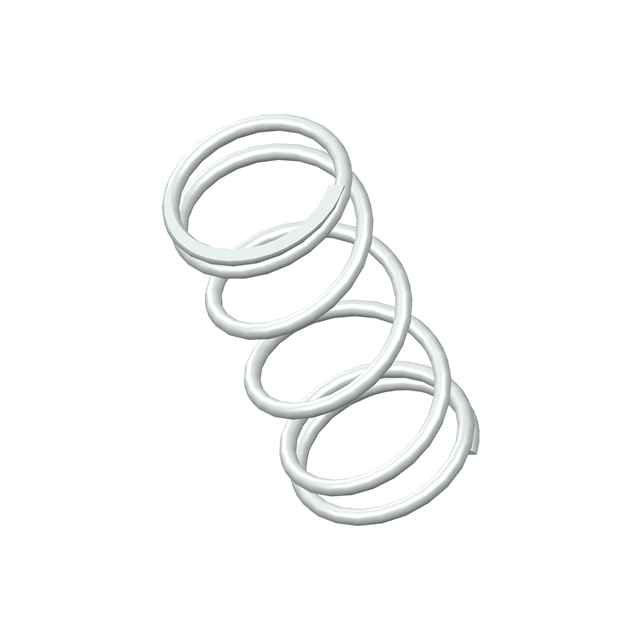

Century Spring Corp A14-58CS	None	10 lbs/in	0.375 in	1 in	Stainless Steel	0.453 in	Closed Ground	0.039 in	Compression
