RZB45 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN EDGE DUAL FMALE 90POS 0.050
| Part | Material - Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Card Type | Color | Contact Finish Thickness | Contact Finish Thickness | Card Thickness | Card Thickness | Contact Type | Contact Material | Number of Positions | Number of Positions/Bay/Row | Pitch | Pitch | Number of Rows [custom] | Termination | Mounting Type | Gender | Read Out | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

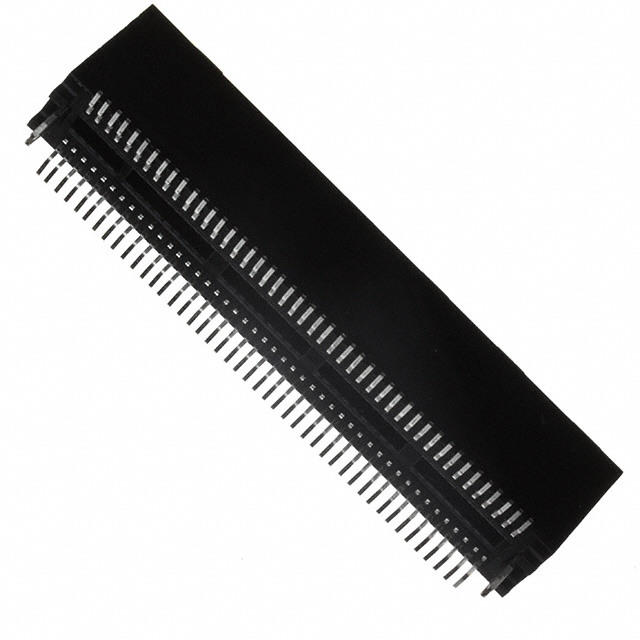

 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | -65 ░C | 125 °C | Gold | Non Specified - Dual Edge | Black | 0.25 Ám | 10 Áin | 1.57 mm | 0.062 in | Hairpin Bellows | Phosphor Bronze | 90 | 45 | 0.05 in | 1.27 mm | 2 | Solder Staggered | Through Hole | Female | Dual | |

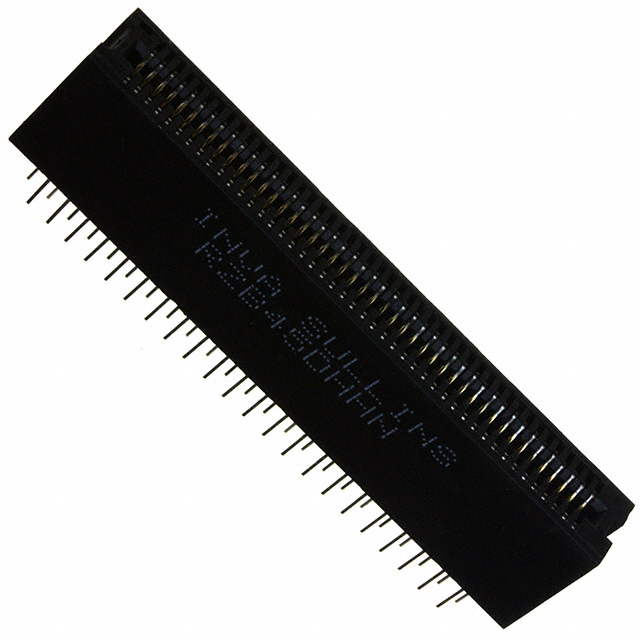

 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | -65 ░C | 125 °C | Gold | Non Specified - Dual Edge | Black | 0.25 Ám | 10 Áin | 1.57 mm | 0.062 in | Hairpin Bellows | Phosphor Bronze | 90 | 45 | 0.05 in | 1.27 mm | 2 | Solder | Surface Mount | Female | Dual | Board Lock |
