MAXM17545 Series

Catalog

DC DC CONVERTER 0.9-12V

Part	Type	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Package / Case	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Mounting Type	Features	Number of Outputs	Voltage - Input (Min) [Min]	Applications	Supplied Contents	Main Purpose	Voltage - Input [Max]	Voltage - Input [Min]	Board Type	Regulator Topology	Outputs and Type	Outputs and Type	Voltage - Output [Min]	Voltage - Output [Max]	Utilized IC / Part	Current - Output
Analog Devices Inc./Maxim Integrated MAXM17545ALJ+	Non-Isolated PoL Module	1.7 A	42 V	29-SMD Module Exposed Pad	15 mm	0.11 in	0.59 in	9 mm	2.8 mm	0.35 "	125 °C	-40 °C	0.9 V	12 V	Surface Mount	OCP OTP UVLO	1	4.5 V	ITE (Commercial)

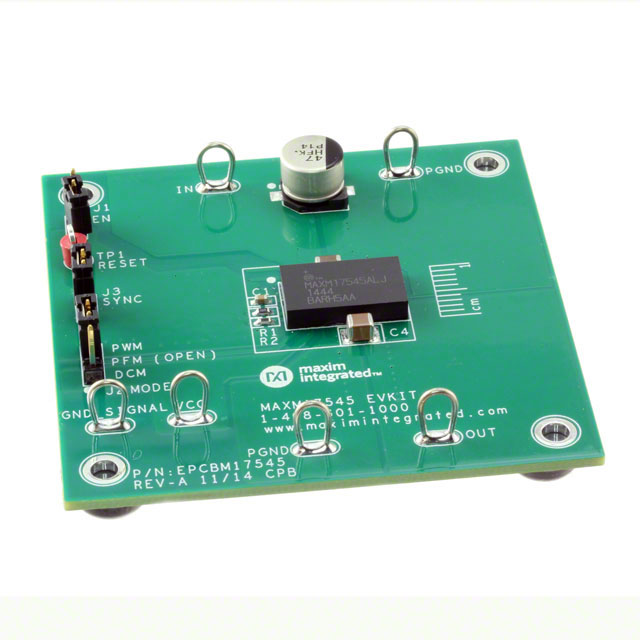

Analog Devices Inc./Maxim Integrated MAXM17545EVKIT#																				Board(s)	DC/DC Step Down	42 V	4.5 V	Fully Populated	Buck	Non-Isolated	1	0.9 V	12 V	MAXM17545	1.7 A
Analog Devices Inc./Maxim Integrated MAXM17545ALJ+T	Non-Isolated PoL Module	1.7 A	42 V	29-SMD Module Exposed Pad	15 mm	0.11 in	0.59 in	9 mm	2.8 mm	0.35 "	125 °C	-40 °C	0.9 V	12 V	Surface Mount	OCP OTP UVLO	1	4.5 V	ITE (Commercial)
