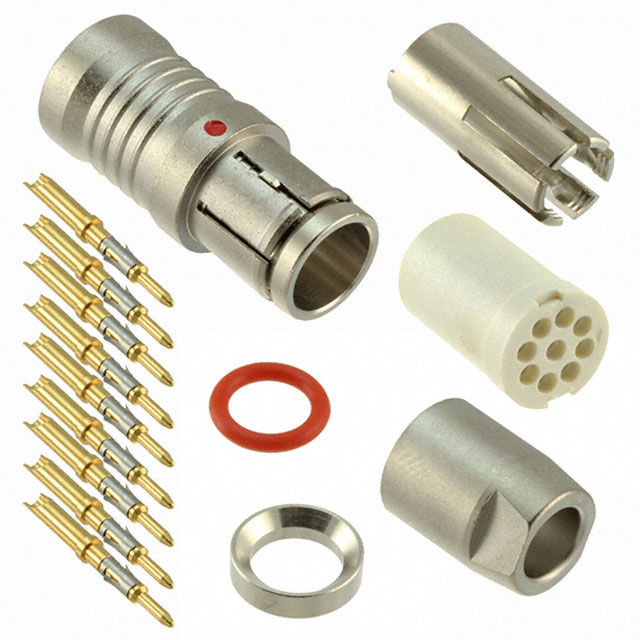

HS2C9M Series
Manufacturer: Switchcraft Inc.
Catalog
CONN PLUG MALE 9POS GOLD CRIMP
| Part | Shielding | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Connector Type | Contact Finish - Mating | Material Flammability Rating | Insert Material | Primary Material | Contact Material | Termination | Applications | Ingress Protection | Shell Finish | Shell Material | Color | Mounting Type | Number of Positions | Orientation | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switchcraft Inc. | Shielded | 5.49 mm | 4.57 mm | 0.18 in | 0.216 in | Male Pins Plug | Gold | UL94 HF-1 | Liquid Crystal Polymer (LCP) | Metal | Copper Alloy | Crimp Solder Cup | Agriculture Audio General Medical Testing Equipment & Measurement | IP66 IP67 IP68 | Electroless Nickel | Copper Alloy | Silver | Free Hanging (In-Line) | 9 | Keyed | 135 °C | -40 °C | Push-Pull | 30 VAC |
