861-004 Series
Manufacturer: NorComp Inc.
Beta
⌘K

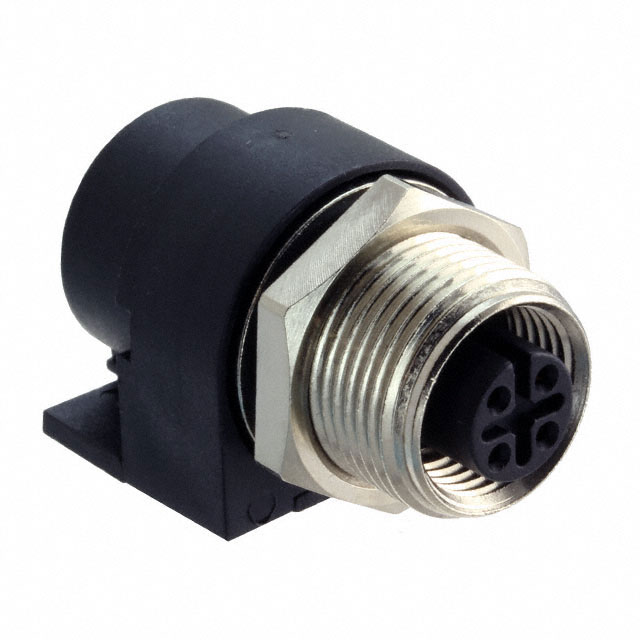

SENSOR CONNECTOR, SHIELDED, VULCON SERIES, M12, FEMALE, 4 POSITIONS, PCB SOCKET
| Part | Contact Material | Insert Material | Applications | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Shell Material | Shielding | Fastening Type | Mounting Type | Material Flammability Rating | Number of Positions | Features | Contact Finish - Mating | Connector Type | Primary Material | Orientation | Ingress Protection | Shell Finish | Color | Shell Size - Insert | Current Rating (Amps) | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Brass | Polybutylene Terephthalate (PBT) | Industrial Medical | 0.25 µm | 10 µin | 250 V | 85 °C | -40 C | Solder | Brass | Shielded | Threaded | Panel Mount Right Angle Through Hole | UL94 V-0 | 4 | Board Guide | Gold | Plug Female Sockets | Metal | A | IP67 - Dust Tight Waterproof | Nickel | Black Silver | M12-4 | 4 A | |

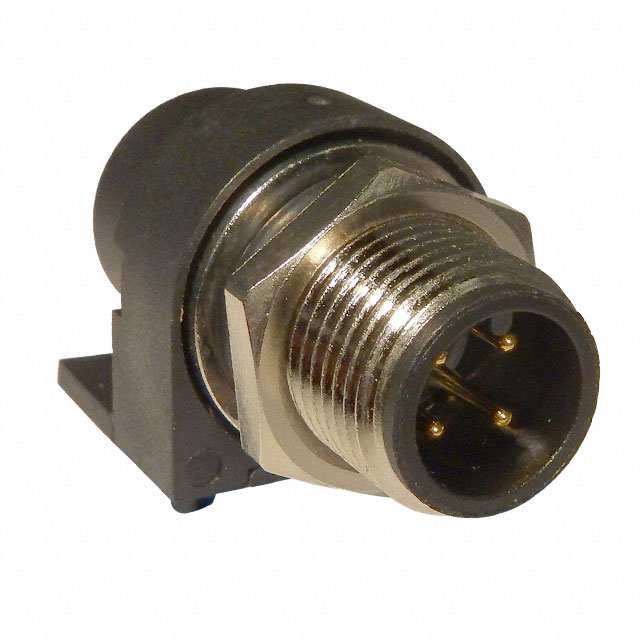

NorComp Inc. | Brass | Polybutylene Terephthalate (PBT) | Industrial Medical | 250 V | 85 °C | -40 C | Solder | Brass | Shielded | Threaded | Panel Mount Right Angle Through Hole | UL94 V-0 | 4 | Board Guide | Gold | Receptacle Male Pins | Metal | A | IP67 - Dust Tight Waterproof | Nickel | Black Silver | M12-4 | 4 A | Flash | ||
 NorComp Inc. | Brass | Polybutylene Terephthalate (PBT) | Industrial Medical | 0.25 µm | 10 µin | 250 V | 85 °C | -40 C | Solder | Brass | Shielded | Threaded | Panel Mount Right Angle Through Hole | UL94 V-0 | 4 | Board Guide | Gold | Receptacle Male Pins | Metal | A | IP67 - Dust Tight Waterproof | Nickel | Black Silver | M12-4 | 4 A |
